Allen Bradley PowerFlex 520-Series Drives Product Selection
Oct 24,2022 | simplybuy industrial
PowerFlex 520-Series Drive Ratings
| PowerFlex 523 | PowerFlex 525 | Output Ratings | Input Voltage Range | Total Watts Loss | Frame Size | ||||
| Normal Duty | Heavy Duty | Output Current (A) | |||||||
| Catalog No. | Catalog No. | HP | kW | HP | kW | ||||
| 100...120V AC (-15%, +10%) – 1-Phase Input, 0...230V 3-Phase Output |
|||||||||
| 25A-V1P6N104 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20.0 | A |
| 25A-V2P5N104 | 25B-V2P5N104 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 85...132 | 27.0 | A |
| 25A-V4P8N104 | 25B-V4P8N104 | 1.0 | 0.75 | 1.0 | 0.75 | 4.8 | 85...132 | 53.0 | B |
| 25A-V6P0N104 | 25B-V6P0N104 | 1.5 | 1.1 | 1.5 | 1.1 | 6.0 | 85...132 | 53.0 | B |
| 200...240V AC (-15%, +10%) – 1-Phase Input, 0...230V 3-Phase Output | |||||||||
| 25A-A1P6N104 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20.0 | A |
| 25A-A2P5N104 | 25B-A2P5N104 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 170...264 | 29.0 | A |
| 25A-A4P8N104 | 25B-A4P8N104 | 1.0 | 0.75 | 1.0 | 0.75 | 4.8 | 170...264 | 50.0 | A |
| 25A-A8P0N104 | 25B-A8P0N104 | 2.0 | 1.5 | 2.0 | 1.5 | 8.0 | 170...264 | 81.0 | B |
| 25A-A011N104 | 25B-A011N104 | 3.0 | 2.2 | 3.0 | 2.2 | 11.0 | 170...264 | 111.0 | B |
| 200...240V AC (-15%, +10%) – 1-Phase Input with EMC Filter, 0...230V 3-Phase Output | |||||||||
| 25A-A1P6N114 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20.0 | A |
| 25A-A2P5N114 | 25B-A2P5N114 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 170...264 | 29.0 | A |
| 25A-A4P8N114 | 25B-A4P8N114 | 1.0 | 0.75 | 1.0 | 0.75 | 4.8 | 170...264 | 53.0 | A |
| 25A-A8P0N114 | 25B-A8P0N114 | 2.0 | 1.5 | 2.0 | 1.5 | 8.0 | 170...264 | 84.0 | B |
| 25A-A011N114 | 25B-A011N114 | 3.0 | 2.2 | 3.0 | 2.2 | 11.0 | 170...264 | 116.0 | B |
| 200...240V AC (-15%, +10%) – 3-Phase Input, 0...230V 3-Phase Output | |||||||||
| 25A-B1P6N104 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20.0 | A |
| 25A-B2P5N104 | 25B-B2P5N104 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 170...264 | 29.0 | A |
| 25A-B5P0N104 | 25B-B5P0N104 | 1.0 | 0.75 | 1.0 | 0.75 | 5.0 | 170...264 | 50.0 | A |
| 25A-B8P0N104 | 25B-B8P0N104 | 2.0 | 1.5 | 2.0 | 1.5 | 8.0 | 170...264 | 79.0 | A |
| 25A-B011N104 | 25B-B011N104 | 3.0 | 2.2 | 3.0 | 2.2 | 11.0 | 170...264 | 107.0 | A |
| 25A-B017N104 | 25B-B017N104 | 5.0 | 4.0 | 5.0 | 4.0 | 17.5 | 170...264 | 148.0 | B |
| 25A-B024N104 | 25B-B024N104 | 7.5 | 5.5 | 7.5 | 5.5 | 24.0 | 170...264 | 259.0 | C |
| 25A-B032N104 | 25B-B032N104 | 10.0 | 7.5 | 10.0 | 7.5 | 32.2 | 170...264 | 323.0 | D |
| 25A-B048N104 | 25B-B048N104 | 15.0 | 11.0 | 10.0 | 7.5 | 48.3 | 170...264 | 584.0 | E |
| 25A-B062N104 | 25B-B062N104 | 20.0 | 15.0 | 15.0 | 11.0 | 62.1 | 170...264 | 708.0 | E |
| 380...480V AC (-15%, +10%) – 3-Phase Input, 0...460V 3-Phase Output(1) | |||||||||
| 25A-D1P4N104 | 25B-D1P4N104 | 0.5 | 0.4 | 0.5 | 0.4 | 1.4 | 323...528 | 27.0 | A |
| 25A-D2P3N104 | 25B-D2P3N104 | 1.0 | 0.75 | 1.0 | 0.75 | 2.3 | 323...528 | 37.0 | A |
| 25A-D4P0N104 | 25B-D4P0N104 | 2.0 | 1.5 | 2.0 | 1.5 | 4.0 | 323...528 | 62.0 | A |
| 25A-D6P0N104 | 25B-D6P0N104 | 3.0 | 2.2 | 3.0 | 2.2 | 6.0 | 323...528 | 86.0 | A |
| 25A-D010N104 | 25B-D010N104 | 5.0 | 4.0 | 5.0 | 4.0 | 10.5 | 323...528 | 129.0 | B |
| 25A-D013N104 | 25B-D013N104 | 7.5 | 5.5 | 7.5 | 5.5 | 13.0 | 323...528 | 170.0 | C |
| 25A-D017N104 | 25B-D017N104 | 10.0 | 7.5 | 10.0 | 7.5 | 17.0 | 323...528 | 221.0 | C |
| 25A-D024N104 | 25B-D024N104 | 15.0 | 11.0 | 15.0 | 11.0 | 24.0 | 323...528 | 303.0 | D |
| 25A-D030N104 | 25B-D030N104 | 20.0 | 15.0 | 15.0 | 11.0 | 30.0 | 323...528 | 387.0 | D |
| 380...480V AC (-15%, +10%) – 3-Phase Input with EMC Filter, 0...460V 3-Phase Output | |||||||||
| 25A-D1P4N114 | 25B-D1P4N114 | 0.5 | 0.4 | 0.5 | 0.4 | 1.4 | 323...528 | 27.0 | A |
| 25A-D2P3N114 | 25B-D2P3N114 | 1.0 | 0.75 | 1.0 | 0.75 | 2.3 | 323...528 | 37.0 | A |
| 25A-D4P0N114 | 25B-D4P0N114 | 2.0 | 1.5 | 2.0 | 1.5 | 4.0 | 323...528 | 63.0 | A |
| 25A-D6P0N114 | 25B-D6P0N114 | 3.0 | 2.2 | 3.0 | 2.2 | 6.0 | 323...528 | 88.0 | A |
| 25A-D010N114 | 25B-D010N114 | 5.0 | 4.0 | 5.0 | 4.0 | 10.5 | 323...528 | 133.0 | B |
| 25A-D013N114 | 25B-D013N114 | 7.5 | 5.5 | 7.5 | 5.5 | 13.0 | 323...528 | 175.0 | C |
| 25A-D017N114 | 25B-D017N114 | 10.0 | 7.5 | 10.0 | 7.5 | 17.0 | 323...528 | 230.0 | C |
| 25A-D024N114 | 25B-D024N114 | 15.0 | 11.0 | 15.0 | 11.0 | 24.0 | 323...528 | 313.0 | D |
| 25A-D030N114 | 25B-D030N114 | 20.0 | 15.0 | 15.0 | 11.0 | 30.0 | 323...528 | 402.0 | D |
| 25A-D037N114 | 25B-D037N114 | 25.0 | 18.5 | 20.0 | 15.0 | 37.0 | 323...528 | 602.0 | E |
| 25A-D043N114 | 25B-D043N114 | 30.0 | 22.0 | 25.0 | 18.5 | 43.0 | 323...528 | 697.0 | E |
| 525...600V AC (-15%, +10%) – 3-Phase Input, 0...575V 3-Phase Output | |||||||||
| 25A-E0P9N104 | 25B-E0P9N104 | 0.5 | 0.4 | 0.5 | 0.4 | 0.9 | 446...660 | 22.0 | A |
| 25A-E1P7N104 | 25B-E1P7N104 | 1.0 | 0.75 | 1.0 | 0.75 | 1.7 | 446...660 | 32.0 | A |
| 25A-E3P0N104 | 25B-E3P0N104 | 2.0 | 1.5 | 2.0 | 1.5 | 3.0 | 446...660 | 50.0 | A |
| 25A-E4P2N104 | 25B-E4P2N104 | 3.0 | 2.2 | 3.0 | 2.2 | 4.2 | 446...660 | 65.0 | A |
| 25A-E6P6N104 | 25B-E6P6N104 | 5.0 | 4.0 | 5.0 | 4.0 | 6.6 | 446...660 | 95.0 | B |
| 25A-E9P9N104 | 25B-E9P9N104 | 7.5 | 5.5 | 7.5 | 5.5 | 9.9 | 446...660 | 138.0 | C |
| 25A-E012N104 | 25B-E012N104 | 10.0 | 7.5 | 10.0 | 7.5 | 12.0 | 446...660 | 164.0 | C |
| 25A-E019N104 | 25B-E019N104 | 15.0 | 11.0 | 15.0 | 11.0 | 19.0 | 446...660 | 290.0 | D |
| 25A-E022N104 | 25B-E022N104 | 20.0 | 15.0 | 15.0 | 11.0 | 22.0 | 446...660 | 336.0 | D |
| 25A-E027N104 | 25B-E027N104 | 25.0 | 18.5 | 20.0 | 15.0 | 27.0 | 446...660 | 466.0 | E |
| 25A-E032N104 | 25B-E032N104 | 30.0 | 22.0 | 25.0 | 18.5 | 32.0 | 446...660 | 562.0 | E |
| (1) A non-filtered drive is not available for 380...480V AC 25 HP (18.5 kW) and 30 HP (22.0 kW) ratings. Filtered drives are available, however, you must verify that the application will support a filtered drive | |||||||||

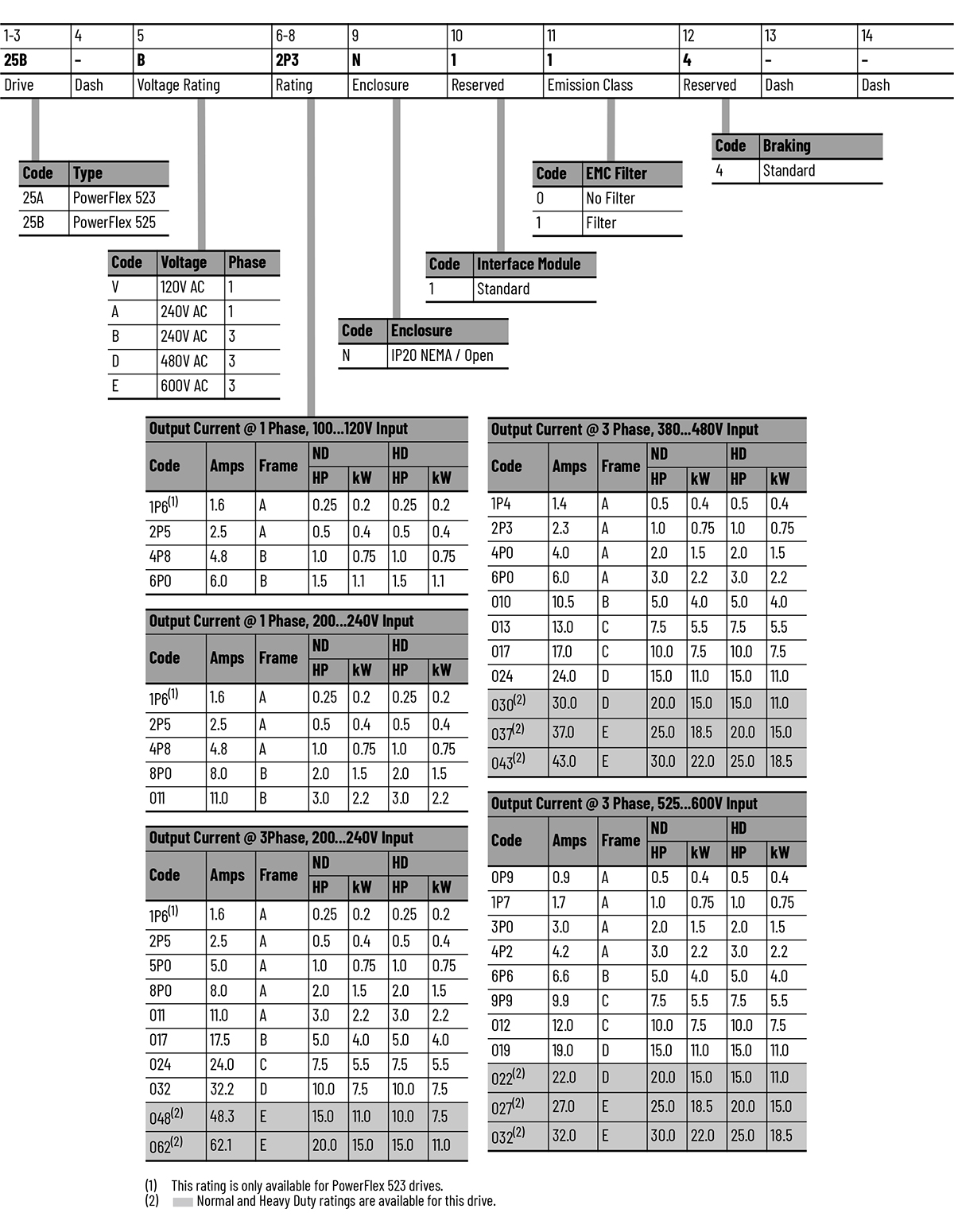

Catalog Number Description
