Allen Bradley PowerFlex 40 Drives Product Selection
Oct 17,2022 | simplybuy industrial
PowerFlex 40 Drives
| Drive Ratings | IP20, NEMA/UL Type Open | IP20 Flange Mount(1) |
IP66, NEMA/UL Type 4X |
||||
| Input Voltage | kW | HP | Output Current |
Catalog Number | Frame Size |
Catalog Number | Catalog Number |
| 120V 50/60 Hz 1-Phase No Filter |
0.4 | 0.5 | 2.3A | 22B-V2P3N104 | B | 22B-V2P3F104 | 22B-V2P3C104 |
| 0.75 | 1.0 | 5.0A | 22B-V5P0N104 | B | 22B-V5P0F104 | 22B-V5P0C104 | |
| 1.1 | 1.5 | 6.0A | 22B-V6P0N104 | B | 22B-V6P0F104 | 22B-V6P0C104 | |
| 240V 50/60 Hz 1-Phase With Integral “S Type” EMC Filter |
0.4 | 0.5 | 2.3A | 22B-A2P3N114 | B | – | – |
| 0.75 | 1.0 | 5.0A | 22B-A5P0N114 | B | – | – | |
| 1.5 | 2.0 | 8.0A | 22B-A8P0N114 | B | – | – | |
| 2.2 | 3.0 | 12.0A | 22B-A012N114 | C | – | – | |
| 240V 50/60 Hz 1-Phase No Filter |
0.4 | 0.5 | 2.3A | 22B-A2P3N104 | B | 22B-A2P3F104 | 22B-A2P3C104 |
| 0.75 | 1.0 | 5.0A | 22B-A5P0N104 | B | 22B-A5P0F104 | 22B-A5P0C104 | |
| 1.5 | 2.0 | 8.0A | 22B-A8P0N104 | B | 22B-A8P0F104 | 22B-A8P0C104 | |
| 2.2 | 3.0 | 12.0A | 22B-A012N104 | C | 22B-A012F104 | – | |
| 240V 50/60 Hz 3-Phase No Filter |
0.4 | 0.5 | 2.3A | 22B-B2P3N104 | B | 22B-B2P3F104 | 22B-B2P3C104 |
| 0.75 | 1.0 | 5.0A | 22B-B5P0N104 | B | 22B-B5P0F104 | 22B-B5P0C104 | |
| 1.5 | 2.0 | 8.0A | 22B-B8P0N104 | B | 22B-B8P0F104 | 22B-B8P0C104 | |
| 2.2 | 3.0 | 12.0A | 22B-B012N104 | B | 22B-B012F104 | 22B-B012C104 | |
| 3.7 | 5.0 | 17.5A | 22B-B017N104 | B | 22B-B017F104 | 22B-B017C104 | |
| 5.5 | 7.5 | 24.0A | 22B-B024N104 | C | 22B-B024F104 | – | |
| 7.5 | 10.0 | 33.0A | 22B-B033N104 | C | 22B-B033F104 | – | |
| 480V 50/60 Hz 3-Phase No Filter |
0.4 | 0.5 | 1.4A | 22B-D1P4N104 | B | 22B-D1P4F104 | 22B-D1P4C104 |
| 0.75 | 1.0 | 2.3A | 22B-D2P3N104 | B | 22B-D2P3F104 | 22B-D2P3C104 | |
| 1.5 | 2.0 | 4.0A | 22B-D4P0N104 | B | 22B-D4P0F104 | 22B-D4P0C104 | |
| 2.2 | 3.0 | 6.0A | 22B-D6P0N104 | B | 22B-D6P0F104 | 22B-D6P0C104 | |
| 3.7 | 5.0 | 10.5A | 22B-D010N104 | B | 22B-D010F104 | 22B-D010C104 | |
| 5.5 | 7.5 | 12.0A | 22B-D012N104 | C | 22B-D012F104 | – | |
| 7.5 | 10.0 | 17.0A | 22B-D017N104 | C | 22B-D017F104 | – | |
| 11.0 | 15.0 | 24.0A | 22B-D024N104 | C | 22B-D024F104 (2) | – | |
| 600V 50/60 Hz 3-Phase No Filter |
0.75 | 1.0 | 1.7A | 22B-E1P7N104 | B | 22B-E1P7F104 | 22B-E1P7C104 |
| 1.5 | 2.0 | 3.0A | 22B-E3P0N104 | B | 22B-E3P0F104 | 22B-E3P0C104 | |
| 2.2 | 3.0 | 4.2A | 22B-E4P2N104 | B | 22B-E4P2F104 | 22B-E4P2C104 | |
| 4.0 | 5.0 | 6.6A | 22B-E6P6N104 | B | 22B-E6P6F104 | 22B-E6P6C104 | |
| 5.5 | 7.5 | 9.9A | 22B-E9P9N104 | C | 22B-E9P9F104 | – | |
| 7.5 | 10.0 | 12.0A | 22B-E012N104 | C | 22B-E012F104 | – | |
| 11.0 | 15.0 | 19.0A | 22B-E019N104 | C | 22B-E019F104 | – | |
| (1) Meets IP40/54/65 (NEMA 1/12/4/4X) when installed in an enclosure of like rating. (2) Requires use of external DC Bus Inductor or AC Line Reactor. |
|||||||

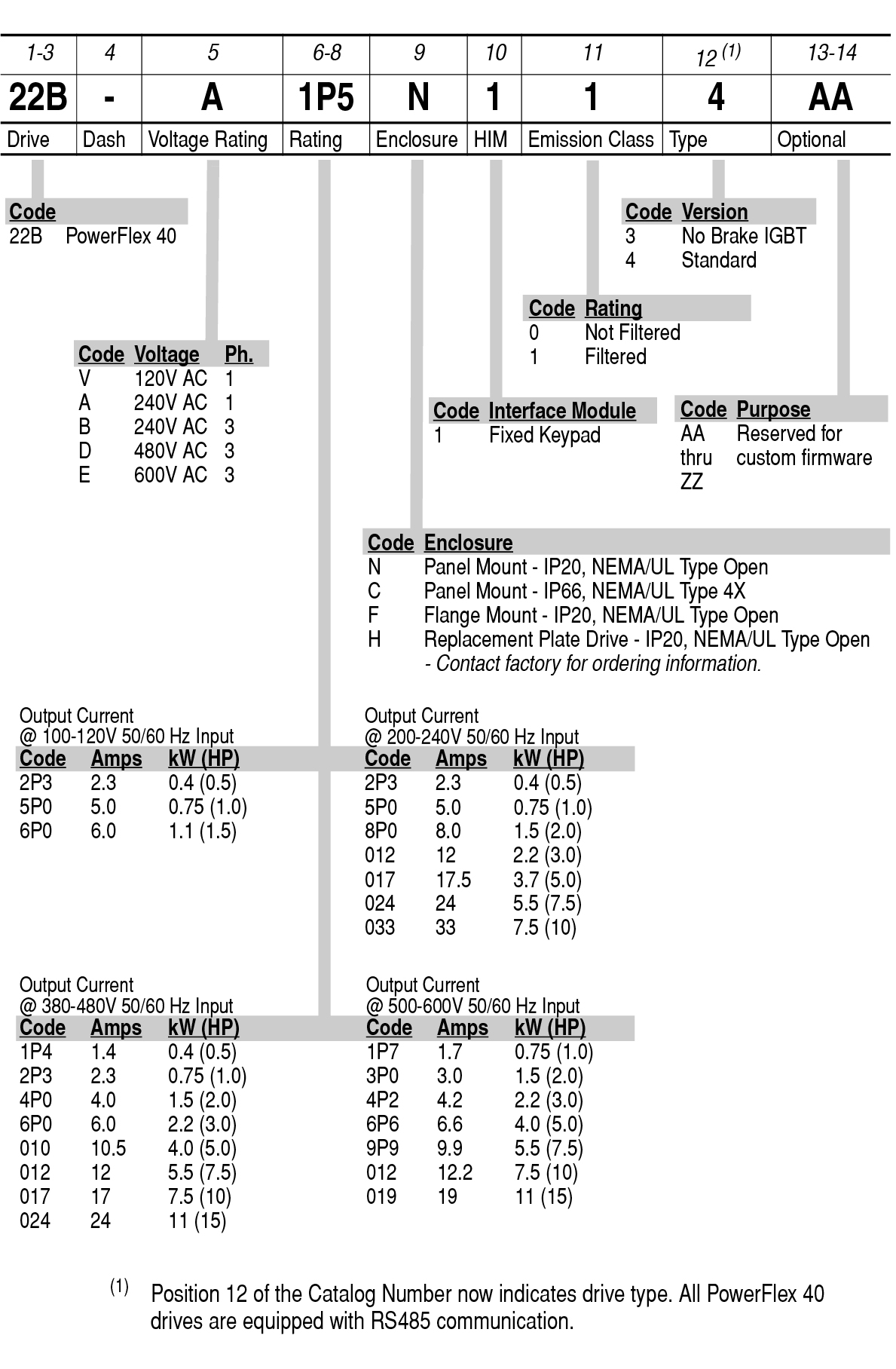

Catalog Number Description
