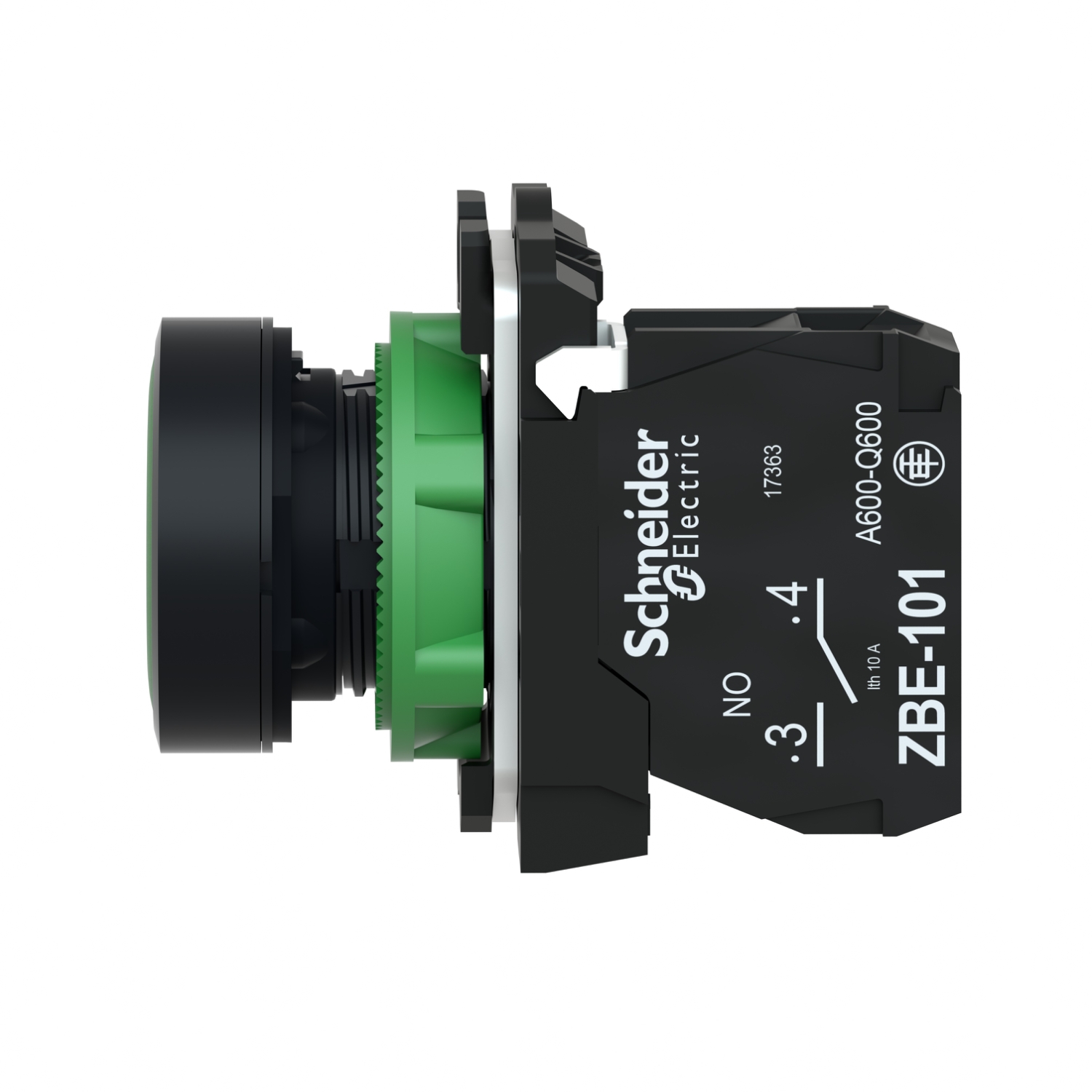

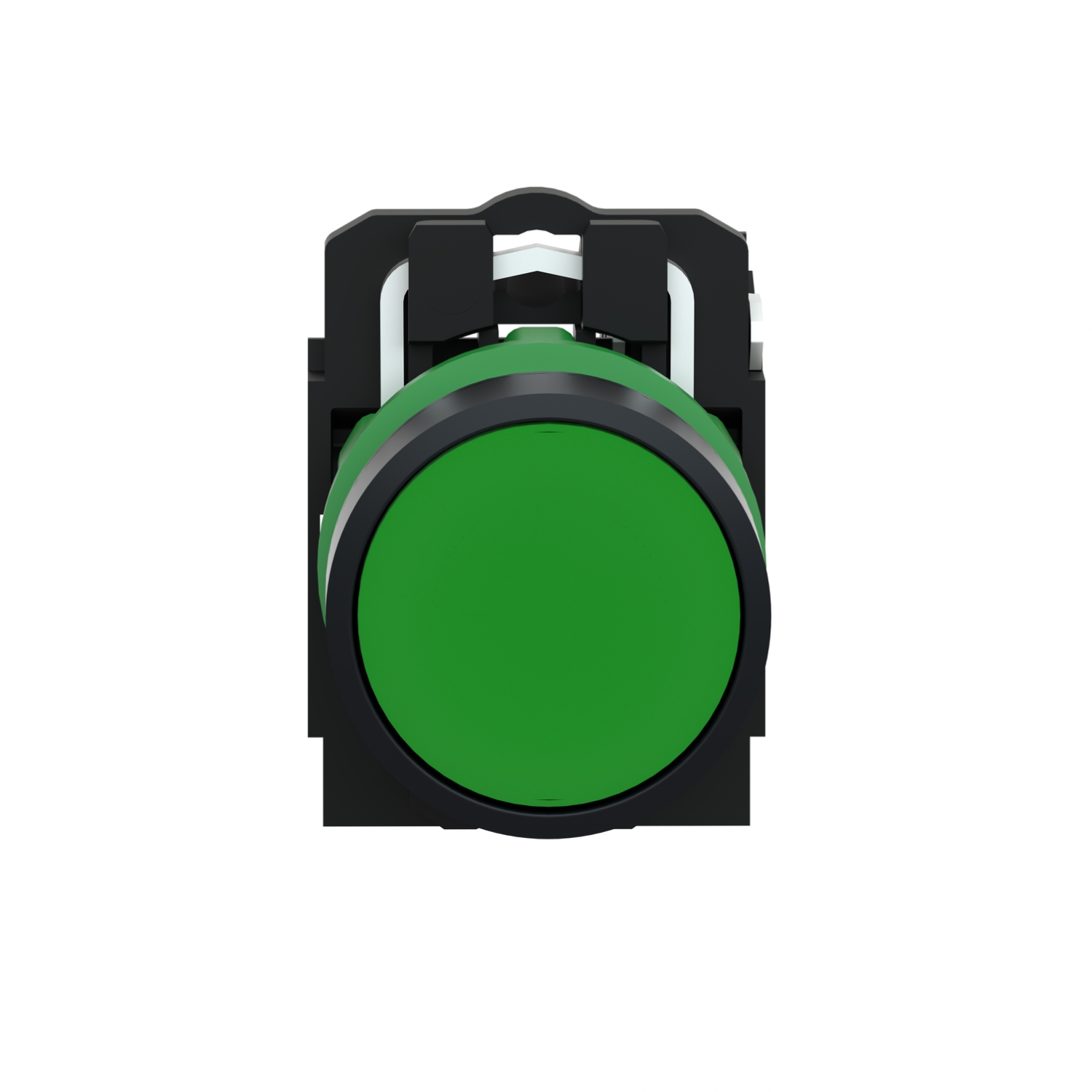

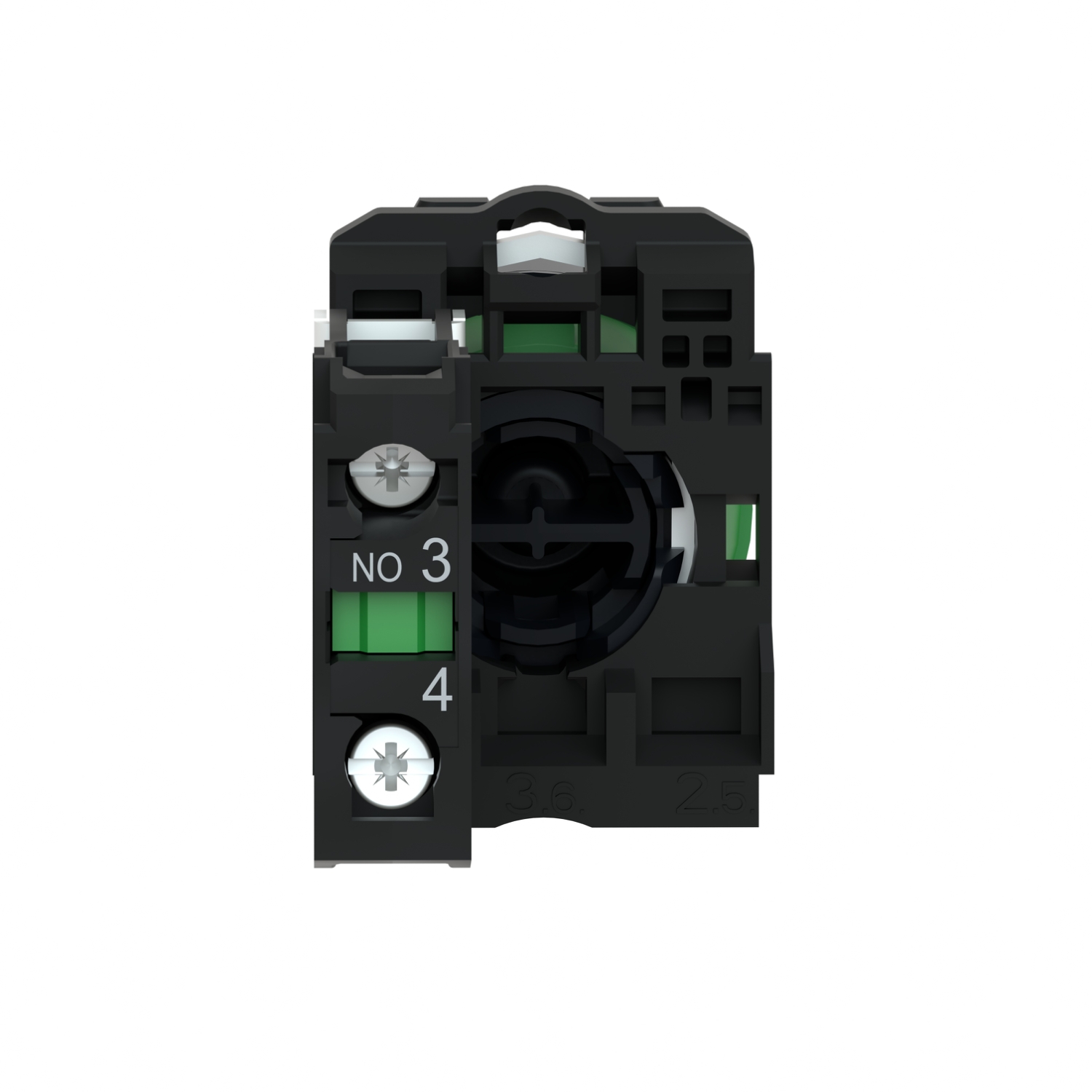

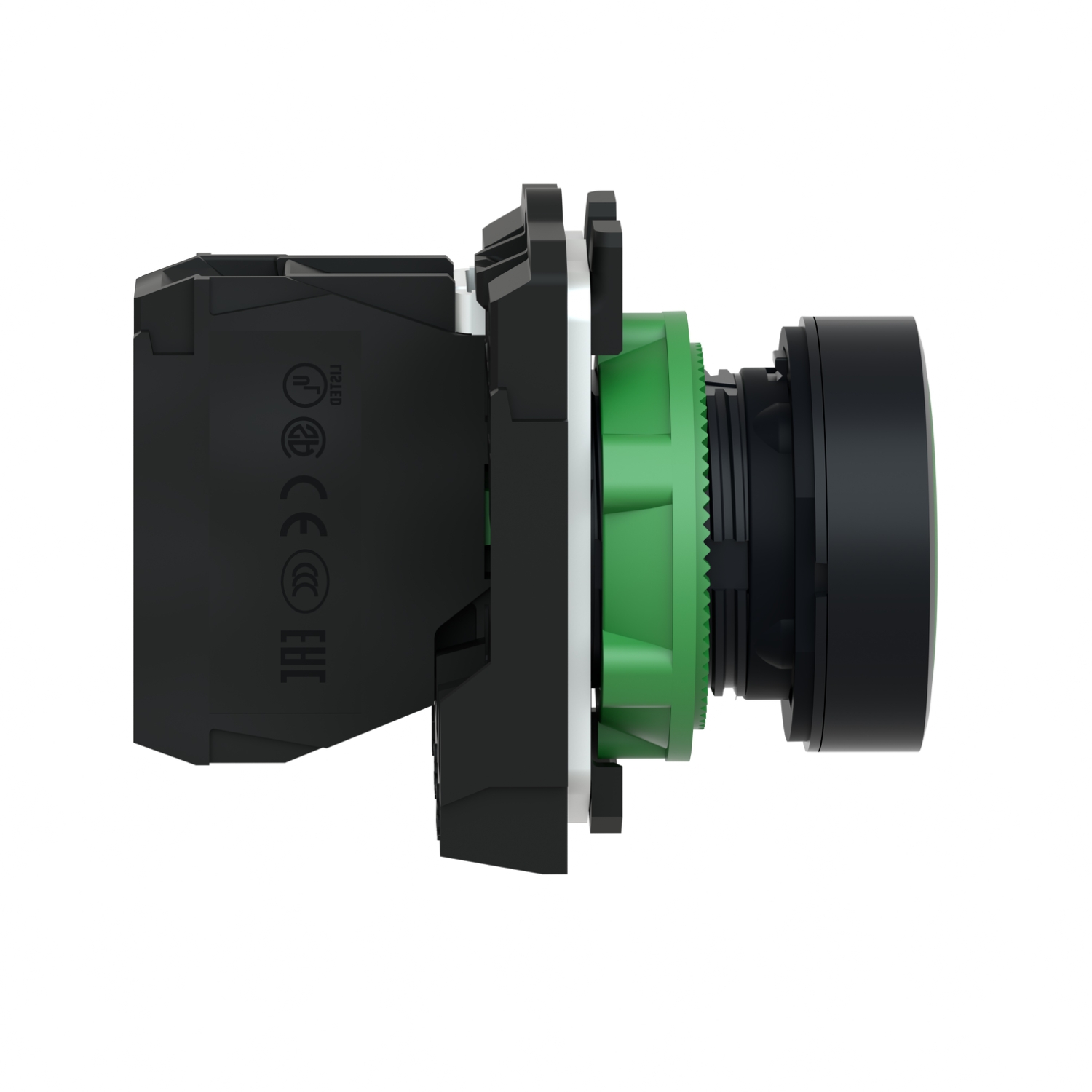

Range of product | Harmony XB5 |
---|---|
Product or component type | Push-button |
device short name | XB5 |
Bezel material | Plastic Dark grey plastic |
Head type | Standard |
Fixing collar material | Plastic |
Mounting diameter | 22 mm |
Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round |
Type of operator | Spring return |
Operator profile | Green flush, unmarked |
Contacts type and composition | 1 NO |
Contact operation | Slow-break |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
