    Home / Schneider SH31003P11A2000 servo motor SH3 100 8Nm

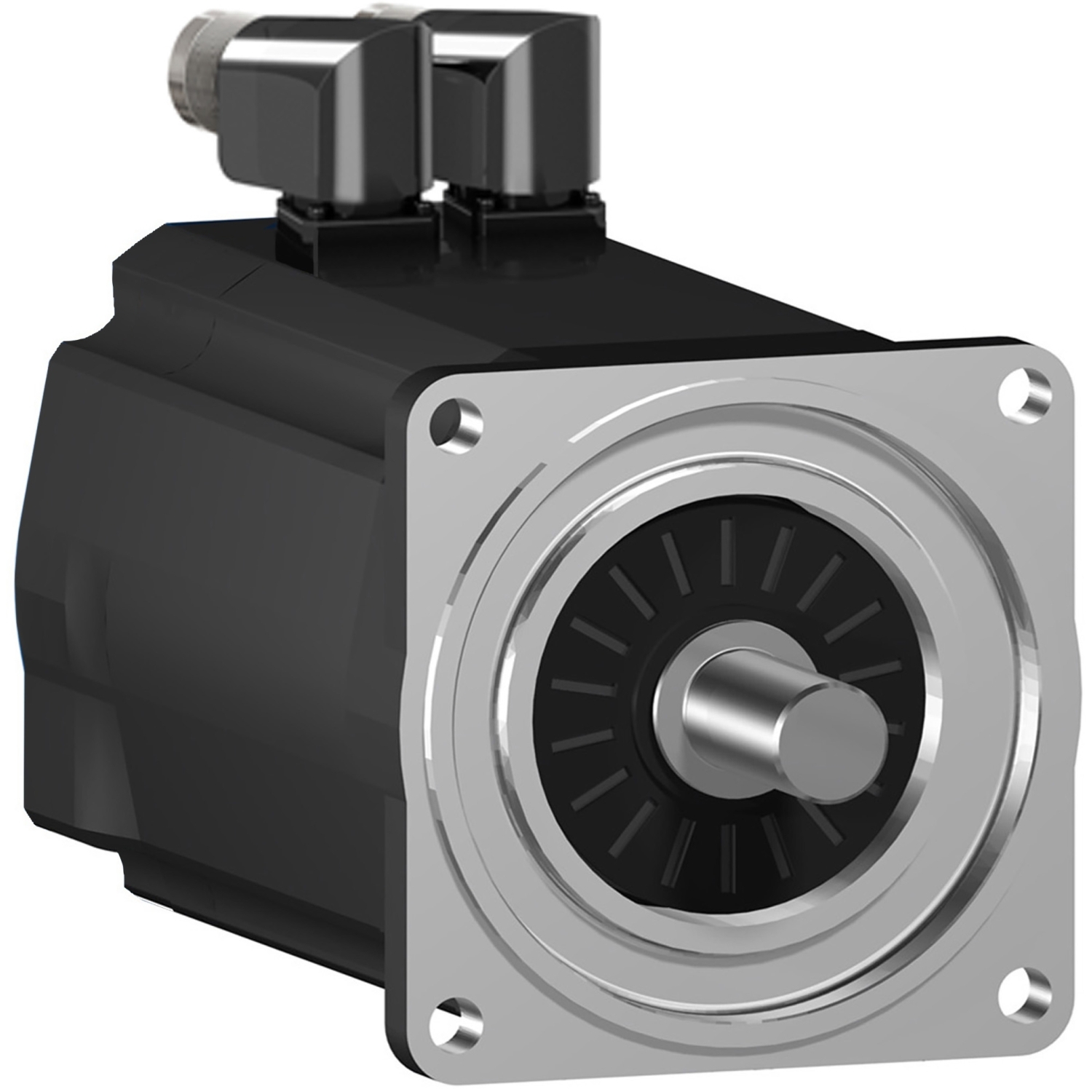

    Schneider SH31003P11A2000 servo motor SH3 100 8Nm

    SH31003P11A2000
    Out of stock, futures 17-18 weeks
    $1,386.64 USD $0.00 USD
    Global low-cost shipping
    Free returns
    Carbon neutral
    Secure payments
    Quantity
    Only 0 left
    Volume Pricing
    Quantity
    Price
    1+
    $1,386.64 USD each
    Range Compatibility PacDrive 3
    Product or Component Type Servo motor
    device short name SH3.....P
    Maximum mechanical speed 6000 rpm
    [Us] rated supply voltage 115...480 V
    Phase Three phase
    Continuous stall current 6.6 A
    Continuous stall torque 70.81 lbf.in (8 N.m) 115...480 V three phase
    Continuous power 2400 W
    Peak stall torque 250.48 lbf.in (28.3 N.m) 115...480 V three phase
    Nominal output power 790 W 115 V single phase
    1470 W 230 V single phase
    2390 W 400 V three phase
    2560 W 480 V three phase
    Nominal torque 45.14 lbf.in (5.1 N.m) 480 V three phase
    66.38 lbf.in (7.5 N.m) 115 V single phase
    61.96 lbf.in (7 N.m) 230 V single phase
    50.45 lbf.in (5.7 N.m) 400 V three phase
    Nominal speed 1000 rpm 115 V single phase
    2000 rpm 230 V single phase
    4000 rpm 400 V three phase
    4800 rpm 480 V three phase
    Maximum current Irms 28.3 A
    Shaft end Parallel key
    Shaft diameter 0.75 in (19 mm)
    Shaft length 1.57 in (40 mm)
    Key width 0.24 in (6 mm)
    IP degree of protection Shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
    Motor IP65 EN/IEC 60034-5
    Shaft bushing IP65 EN/IEC 60034-5
    encoder type Absolute single turn SinCos Hiperface
    Speed feedback resolution 128 periods
    Holding brake Without
    Mounting Support International standard flange
    Motor flange size 3.94 in (100 mm)
    Electrical Connection Straight connector
    Torque constant 1.22 N.m/A 248 °F (120 °C)
    Back emf constant 77 V/krpm 68 °F (20 °C)
    Number of motor poles 4
    Rotor inertia 3.22 kg.cm²
    Stator resistance 1.43 Ohm
    Stator inductance 13.45 mH
    Maximum radial force Fr 1050 N 1000 rpm
    830 N 2000 rpm
    730 N 3000 rpm
    660 N 4000 rpm
    Maximum axial force Fa 160 N
    Type of cooling Natural convection
    Length 9.47 in (240.5 mm)
    Centring collar diameter 3.74 in (95 mm)
    Centring collar depth 0.14 in (3.5 mm)
    Number of mounting holes 4
    Mounting holes diameter 0.35 in (9.0 mm)
    Circle diameter of the mounting holes 4.53 in (115 mm)
    Net Weight 16.53 lb(US) (7.5 kg)
