| range of product | Harmony Electromechanical Relays Harmony Timer Relays |
|---|---|

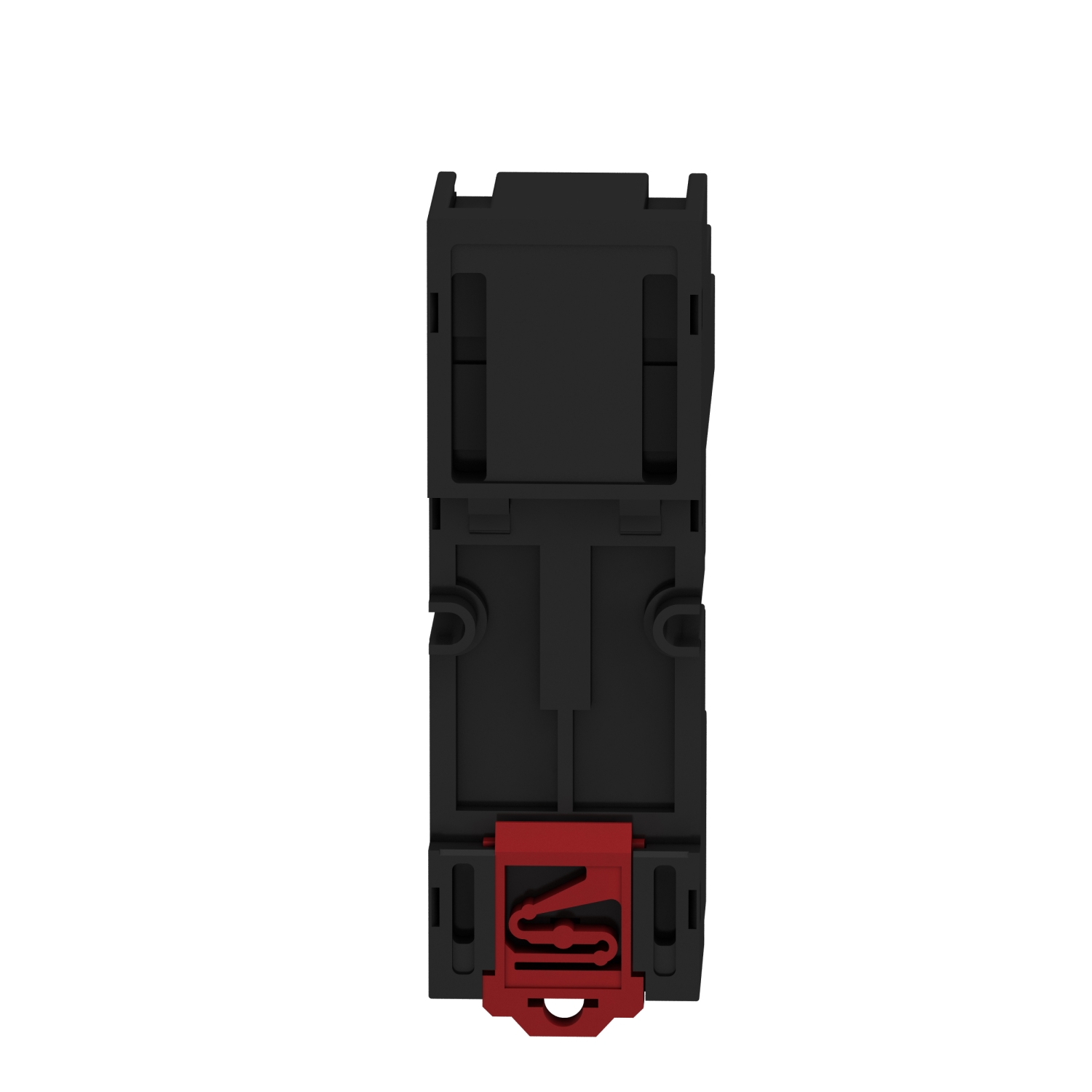

| product or component type | Socket |
| contact terminal arrangement | Separate |
| product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay REXL with 2 C/O contact |
| shape of pin | Flat |
| device short name | RXZ |
| sale per indivisible quantity | 10 |
| [Ith] conventional free air thermal current | 12 A |
| [Ue] rated operational voltage | < 250 V |
| connections - terminals | Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 20...AWG 14) solid without cable end |
| tightening torque | < 1 N.m for M3 screw(s) |
| fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| width | 27 mm |
| Net weight | 0.058 kg |
