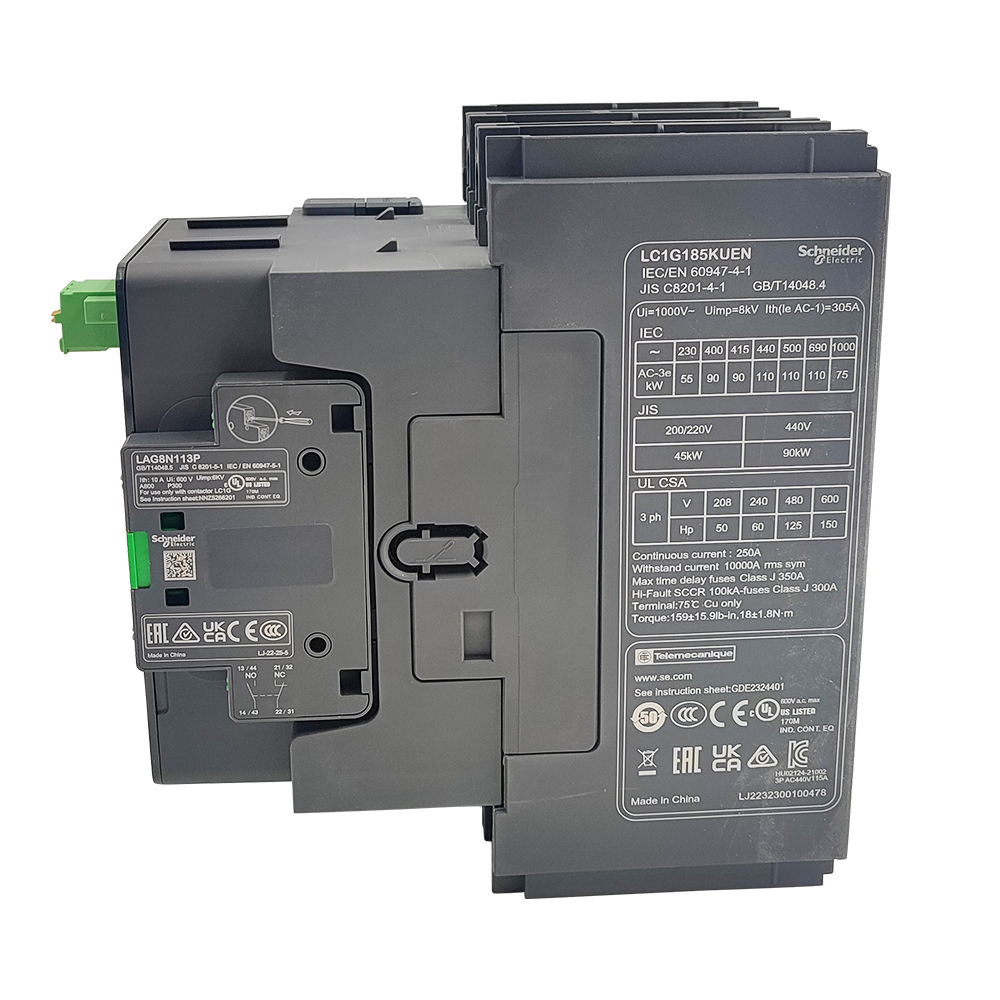

| range | TeSys |
|---|---|
| range of product | TeSys Giga |
| product or component type | Contactor |
| device short name | LC1G |
| contactor application | Power switching Motor control |
| poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 300 V DC |
| [Ie] rated operational current | 305 A (at <40 °C) at 1000 V AC-1 185 A (at <60 °C) at 440 V AC-3 |
| [Uc] control circuit voltage | 100...250 V AC/DC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| overvoltage category | III |
| [Ith] conventional free air thermal current | 305 A (at 40 °C) |
| rated breaking capacity | 1610 A at 440 V |
| average impedance | 0.00017 Ohm |
| [Ui] rated insulation voltage | 1000 V |
| compatibility code | LC1G |
| pole contact composition | 3 NO |
| auxiliary contact composition | 1 NO + 1 NC |
| Irms rated making capacity | 2310 A at 440 V |
| coil technology | Built-in bidirectional peak limiting |
