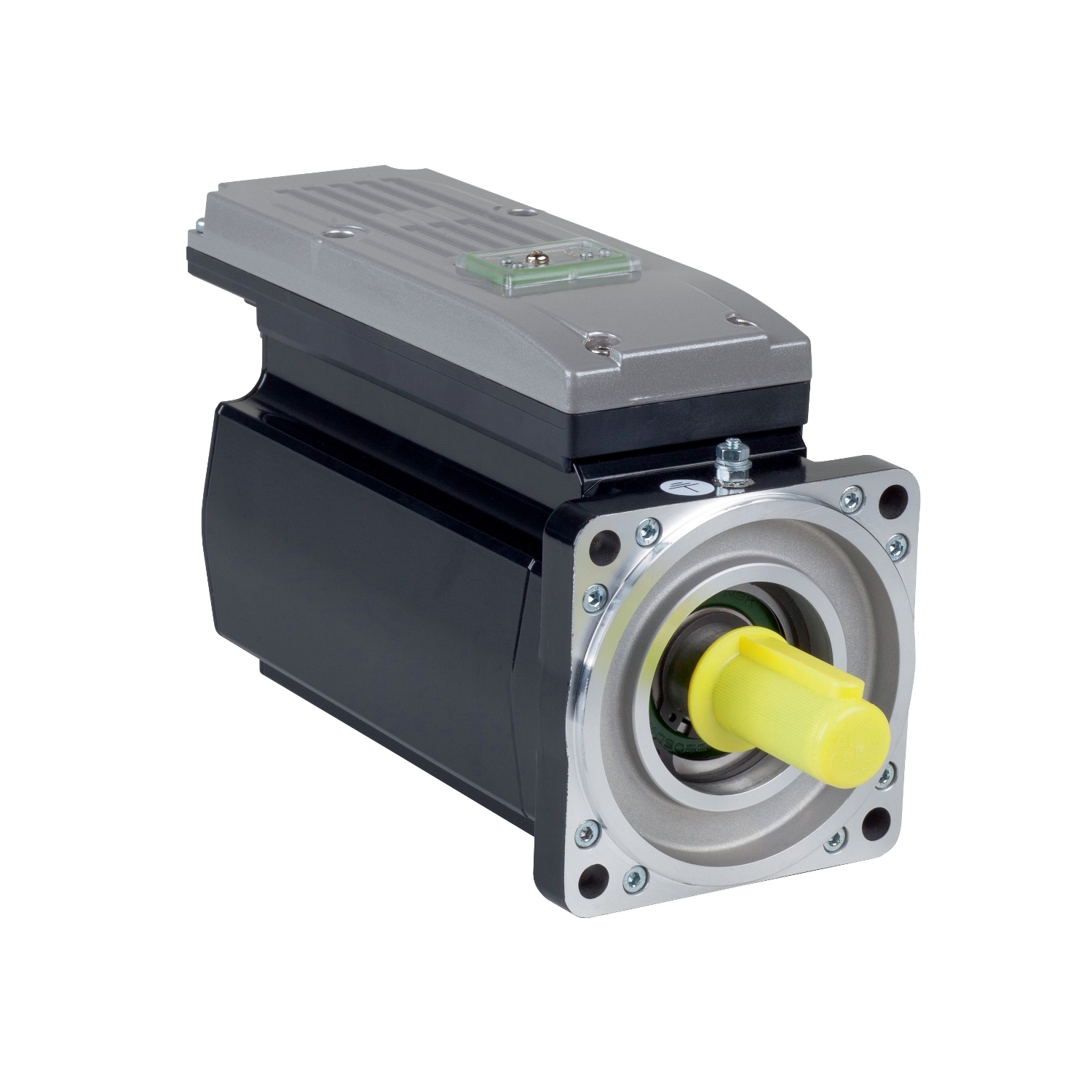

Schneider ILM1003P11A0000 integrated servo motor 5.8 Nm 3000 rpm

ILM1003P11A0000
Out of stock, futures 17-18 weeks
$2,209.70 USD $0.00 USD
Global low-cost shipping
Free returns
Carbon neutral
Secure payments
Quantity
Only 0 left
Volume Pricing
Quantity
Price
1+
$2,209.70 USD each
ange of Product PacDrive 3
Product or Component Type Servo motor integrated drive
device short name ILM
[Us] rated supply voltage 250...700 V
Continuous stall current 3.6 A
Continuous stall torque 51.33 lbf.in (5.8 N.m)
Peak stall torque 250.48 lbf.in (28.3 N.m)
Nominal Output Power 1100 W
Nominal torque 30.98 lbf.in (3.5 N.m)
Nominal speed 3000 rpm
Maximum current Irms 21.2 A
Line Rated Current 2.4 A
Shaft end Keyed
Second shaft Without second shaft end
Shaft diameter 0.75 in (19 mm)
Shaft length 1.57 in (40 mm)
Key width 1.18 in (30 mm)
Feedback type Absolute single turn SinCos Hiperface
Speed feedback resolution 128 periods
Holding brake Without
Mounting Support International standard flange
Motor flange size 3.94 in (100 mm)
Torque constant 1.61 N.m/A 248 °F (120 °C)
Back emf constant 103 V/krpm 68 °F (20 °C)
Number of motor poles 8
Rotor inertia 3.22 kg.cm²
Stator resistance 2.6 Ohm 68 °F (20 °C) Ph/Ph
1.81 Ohm 248 °F (120 °C) Ph/N
Stator inductance 15.6 mH 68 °F (20 °C) Ph/Ph
7.8 mH 248 °F (120 °C) Ph/N
Maximum radial force Fr 1050 N 1000 rpm
830 N 2000 rpm
730 N 3000 rpm
Maximum axial force Fa 0.2 x Fr
Type of cooling Natural convection
Length 11.22 in (285 mm)
Number of motor stacks 3
Centring collar diameter 3.74 in (95 mm)
Centring collar depth 0.14 in (3.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.35 in (9 mm)
Circle diameter of the mounting holes 4.53 in (115 mm)
Net Weight 17.86 lb(US) (8.1 kg)
IP Degree of Protection IP54
