| range of product | Harmony Electromechanical Relays |
|---|---|
| series name | Miniature |

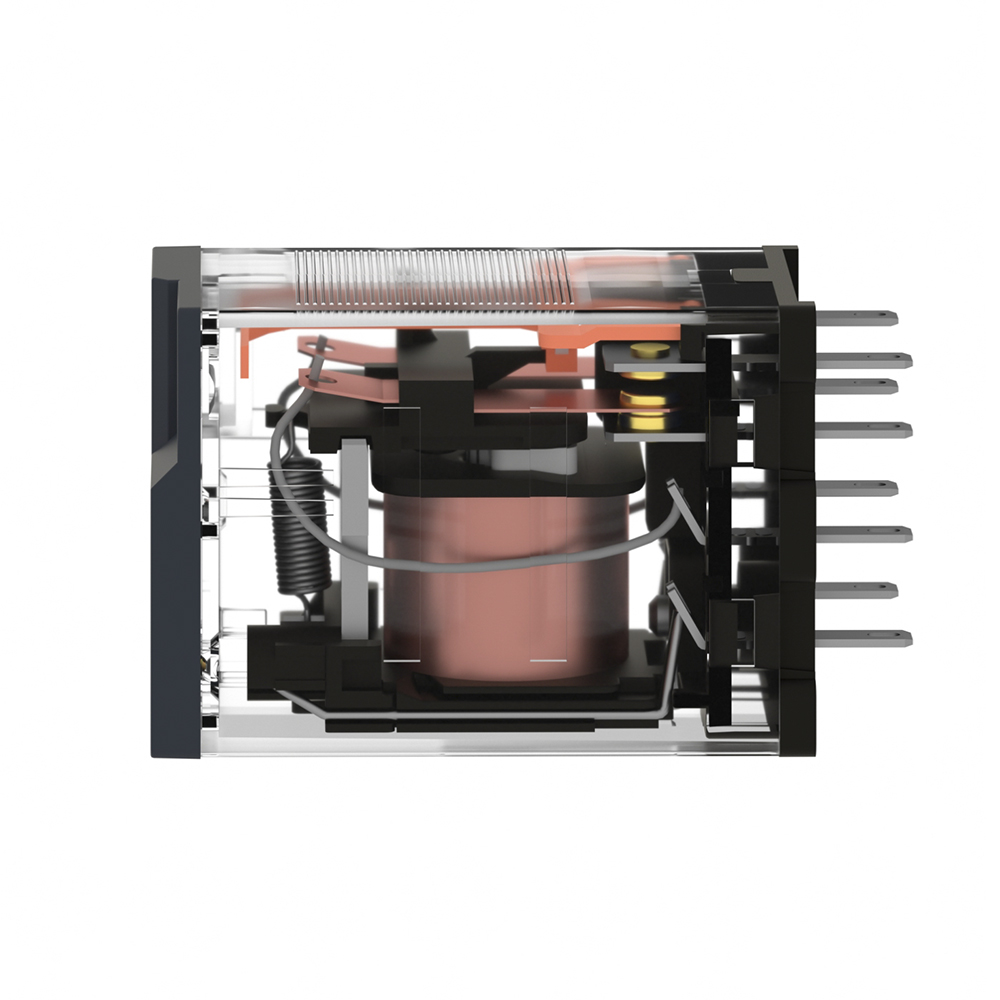

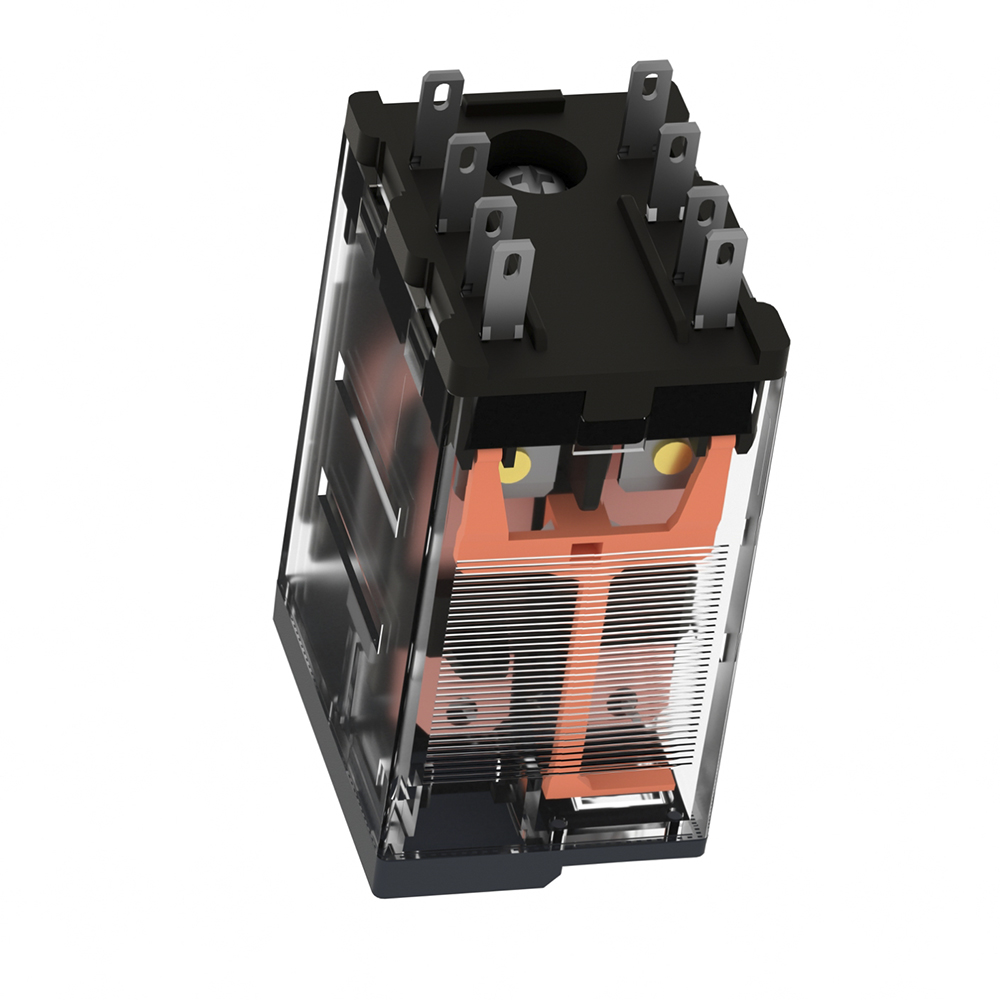

| product or component type | Plug-in relay |

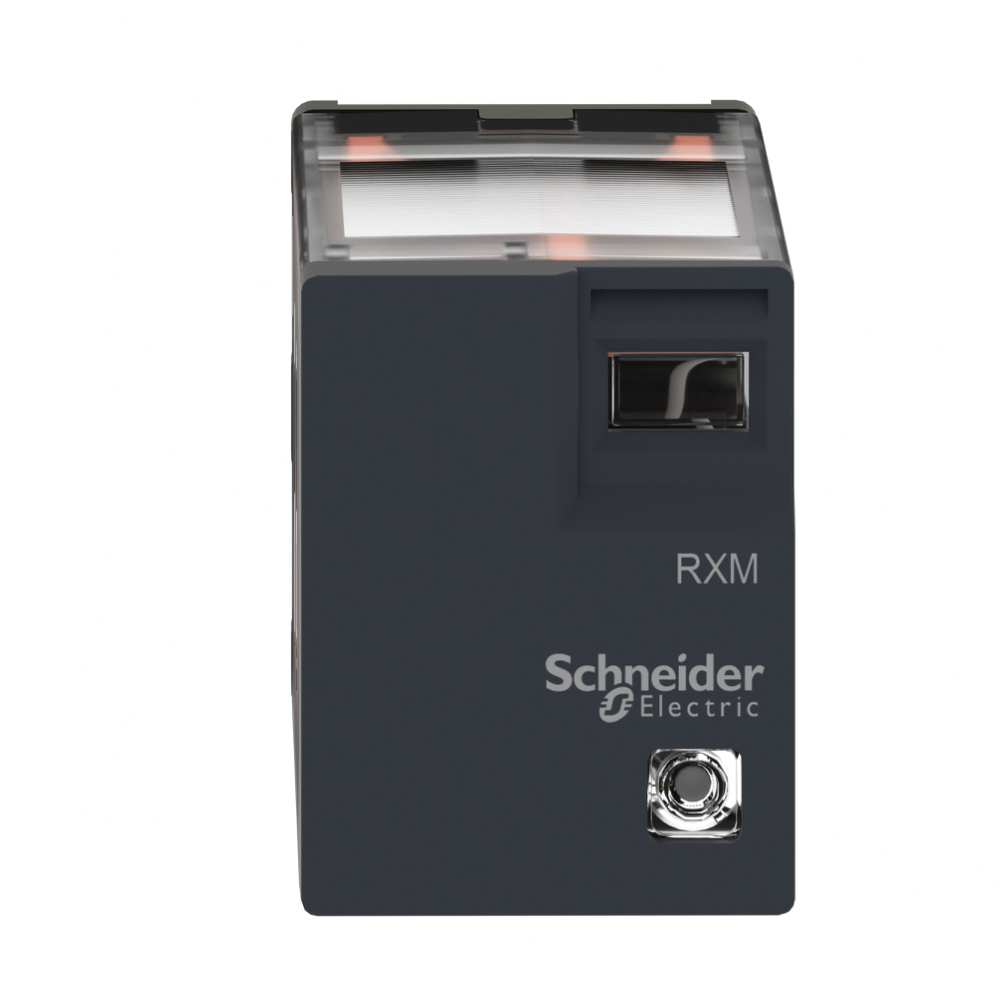

| device short name | RXM |
| coil interference suppression | Without |
| utilisation coefficient | 20 % |
| sale per indivisible quantity | 10 |
| contacts type and composition | 2 C/O |
| contact operation | Standard |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| status LED | With |
| control type | Without push-button |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs conforming to IEC 61810-7 |
| contacts material | Silver alloy (Ag/Ni) |
| minimum switching current | 10 mA |
| minimum switching voltage | 17 V |
| minimum switching capacity | 170 mW |
| mechanical durability | 10000000 cycles |
| average coil consumption | 0.9 W, DC |
| drop-out voltage threshold | >= 0.1 Uc DC |
| average resistance | 640 Ohm at 23 °C +/- 10 % |
| rated operational voltage limits | 19.2...26.4 V DC |
| protection category | RT I |
| test levels | Level A group mounting |
| operating position | Any position |
