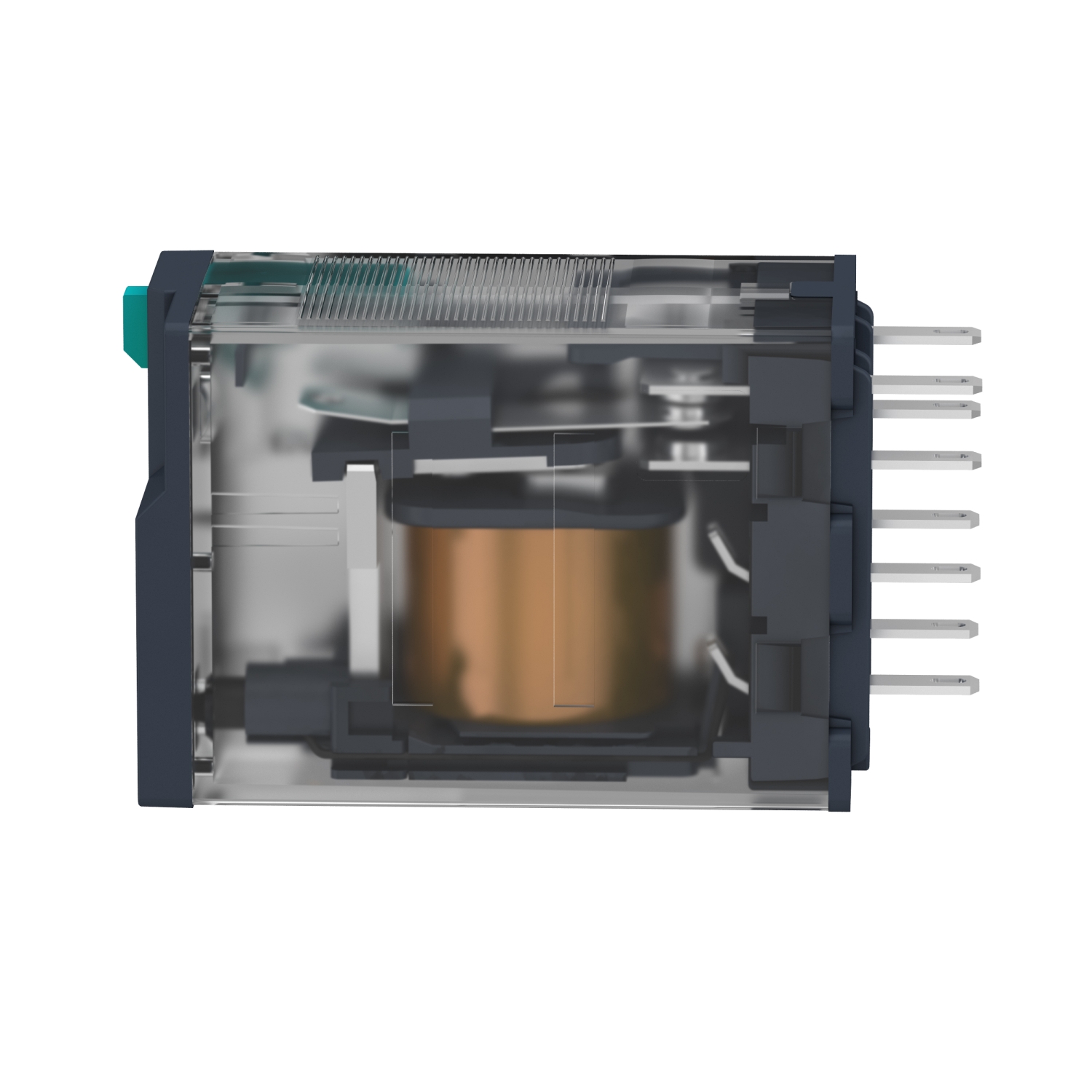

| range of product | Harmony Electromechanical Relays |
|---|---|
| series name | Miniature |
| product or component type | Plug-in relay |
| device short name | RXM |
| contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 24 V DC |
| status LED | Without |
| control type | Lockable test button |
| utilisation coefficient | 20 % |
| shape of pin | Flat |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| contacts material | AgNi |
| Continuous output current | 10 A |
| maximum switching voltage | 250 V conforming to IEC |
| maximum switching capacity | 3000 VA/336 W |
| minimum switching capacity | 170 mW at 10 mA, 17 V |
| average coil consumption | 0.9 W |
| drop-out voltage threshold | >= 0.1 Uc |
| rated operational voltage limits | 19.2...26.4 V DC |
| protection category | RT I |
| test levels | Level A group mounting |
| operating position | Any position |
| net weight | 0.037 kg |
| device presentation | Complete product |
