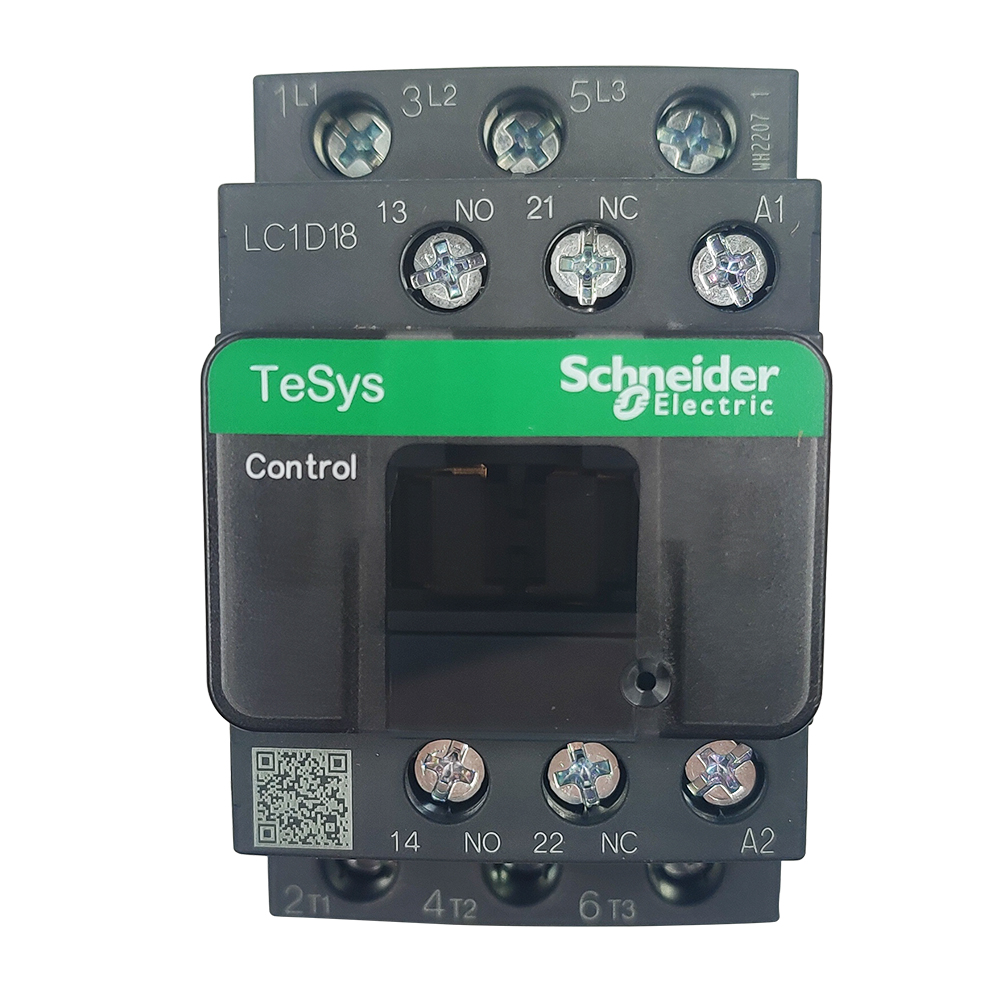

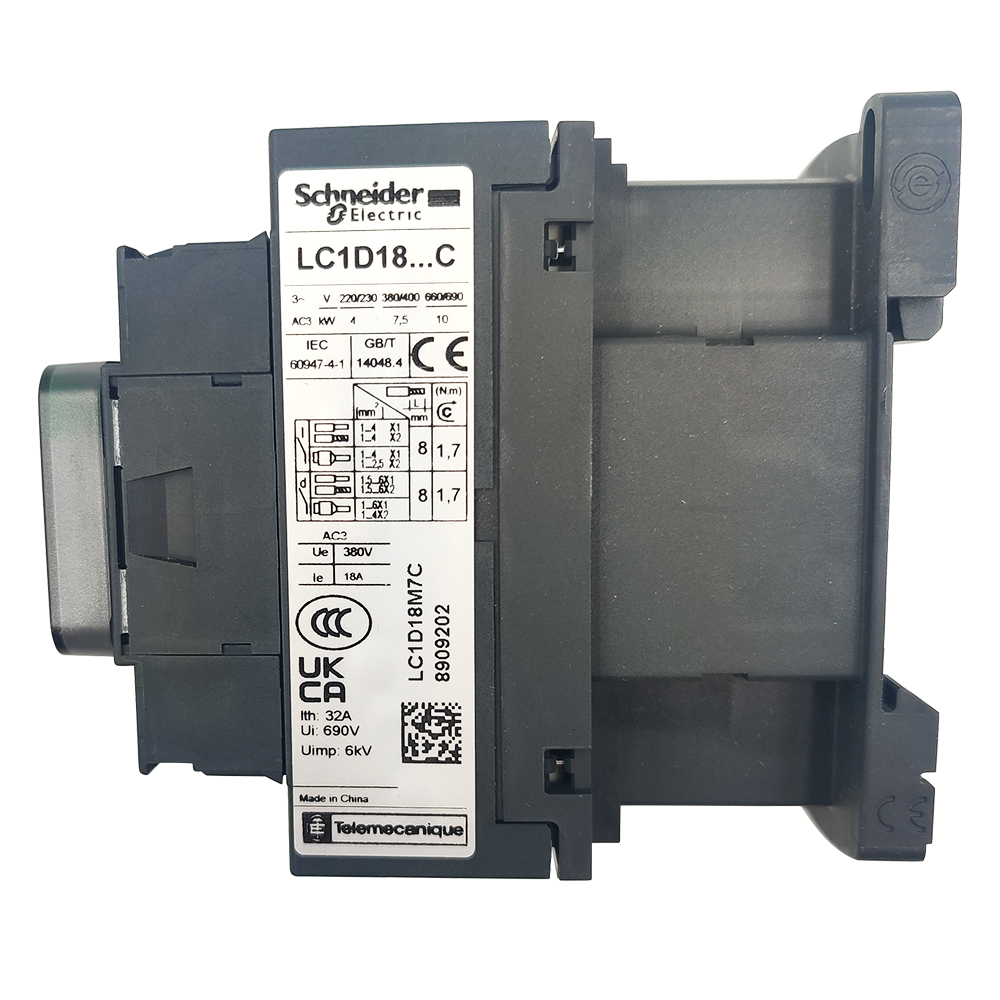

| range | TeSys TeSys Deca |
|---|---|
| product or component type | Contactor |
| device short name | LC1D |
| contactor application | Resistive load Motor control |
| poles description | 3P |
| pole contact composition | 3 NO |
| contact compatibility | M2 |
| protective cover | With |
| auxiliary contact composition | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| overvoltage category | III |
| rated breaking capacity | 300 A at 440 V for power circuit conforming to IEC 60947 |
| control circuit type | AC at 50/60 Hz |
| coil technology | Without built-in suppressor module |
| average impedance | 2.5 mOhm - Ith 32 A 50 Hz for power circuit |
| minimum switching current | 5 mA for signalling circuit |
| minimum switching voltage | 17 V for signalling circuit |
| maximum operating rate | 3600 cyc/h 60 °C |
| insulation resistance | > 10 MOhm for signalling circuit |
| mounting support | Plate Rail |
| mechanical durability | 15 Mcycles |
| operating altitude | 0...3000 m |
| compatibility code | LC1D |
