131b0073
131b0073

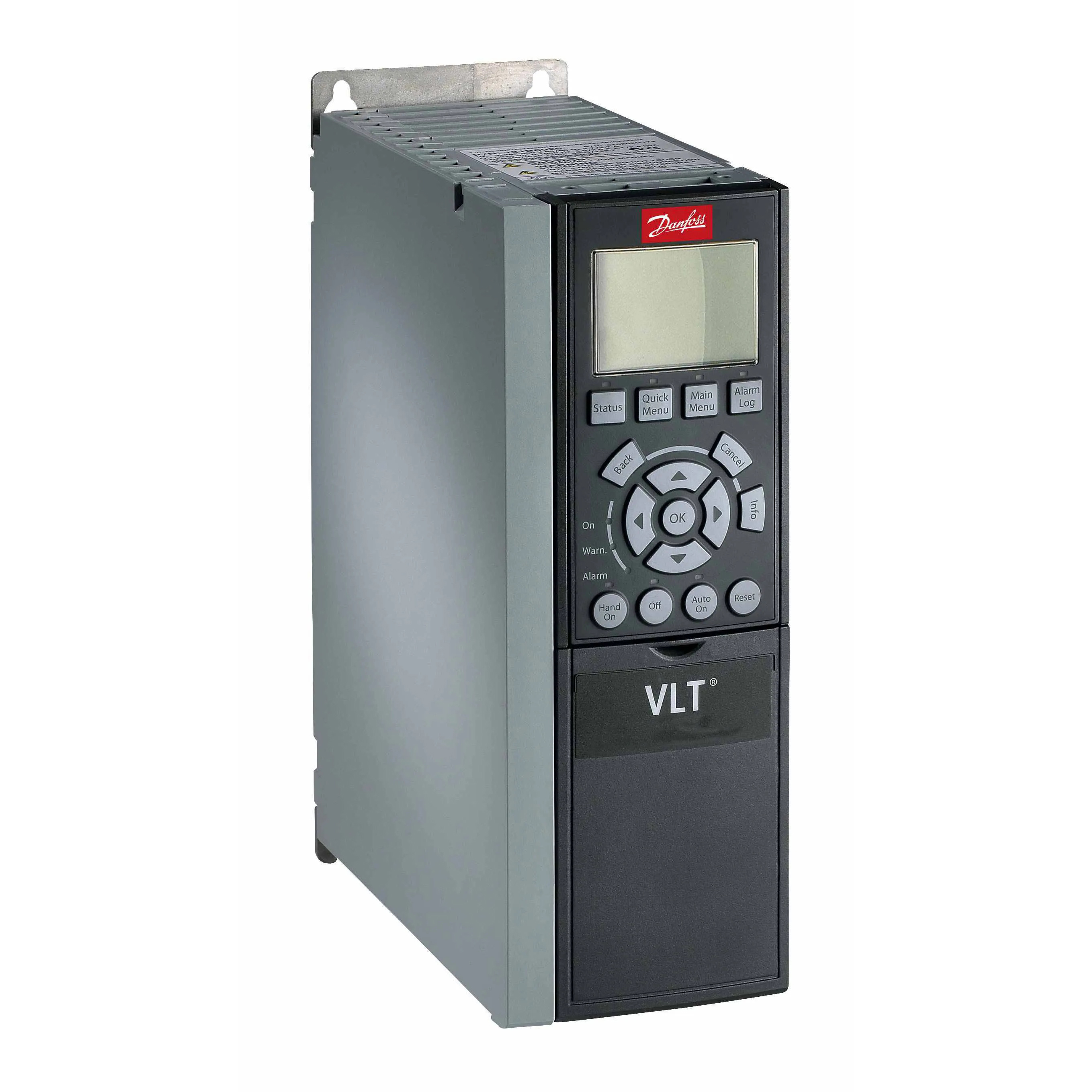

Danfoss 131B0073 FC-302PK37T5E20H2XGXXXXSXXXXAXBXCXXXXDX

FC-302PK37T5E20H2XGXXXXSXXXXAXBXCXXXXDX
In stock, ship within 3-5 days
$496.12 USD $0.00 USD
Global low-cost shipping
Free returns
Carbon neutral
Secure payments
Quantity
Only 10 left
Volume Pricing
Quantity
Price
1+
$496.12 USD each

Product details

Gross weight 4.55 kg
Net weight 3.96 kg
Volume 16.53 l
EAN 5702427103788

Sales restriction control

Matr grp for sales restriction 0001 No grouping

VLT® AUTOMATIONDRIVE FC 300 SERIES

Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AutomationDrive FC-
Series 302 302
Power Rating PK37 (PK37) 0.37 KW / 0.50 HP
Phase T Three phase
Mains Voltage 5 380 - 500 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H2 RFI Filter
Brake - Safe Stop X No brake chopper
LCP G Graphical Loc. Cont. Panel
Coating PCB X Not coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AX No A Option
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option DX No D option
Frame Size A2 A2
Typecode Part 1   FC-302PK37T5E20H2XGX
Typecode Part 2   XXXSXXXXAXBXCXXXXDX
Product Catalog NO_VIEW NO VIEW
Power 160% (HO) [KW]   0.37
Height [mm]   268,0
Width w/ no C options [mm]   90,0
Depth [mm]   205,0
Depth with Option A/B [mm]   220,0
kVA   0.9
Power Loss HO [W]   35
Power Loss HO [W]   35
Continuous Current (HO) [A]   1.3
Intermittent Current (HO) [A]   2.08
Continuous Current (HO) [A]   1.2
Intermittent Current (HO) [A]   1.92
Calculated Gross Weight [kg]   4.41
Calculated Net Weight [kg]   3.89
Material Gross Weight   4.55
Material Net Weight   3.96
Vendor ERR01 Cannot Determine Vendor
Modelcode01   FC-302PK37T5E20H2XGX
Modelcode02   XXXSXXXXAXBXCXXXXDX
