Product details
| Gross weight | 4.97 kg |
| Net weight | 4.38 kg |
| Volume | 16.53 l |
| EAN | 5702427094178 |
Sales restriction control
| Matr grp for sales restriction | 0001 | No grouping |

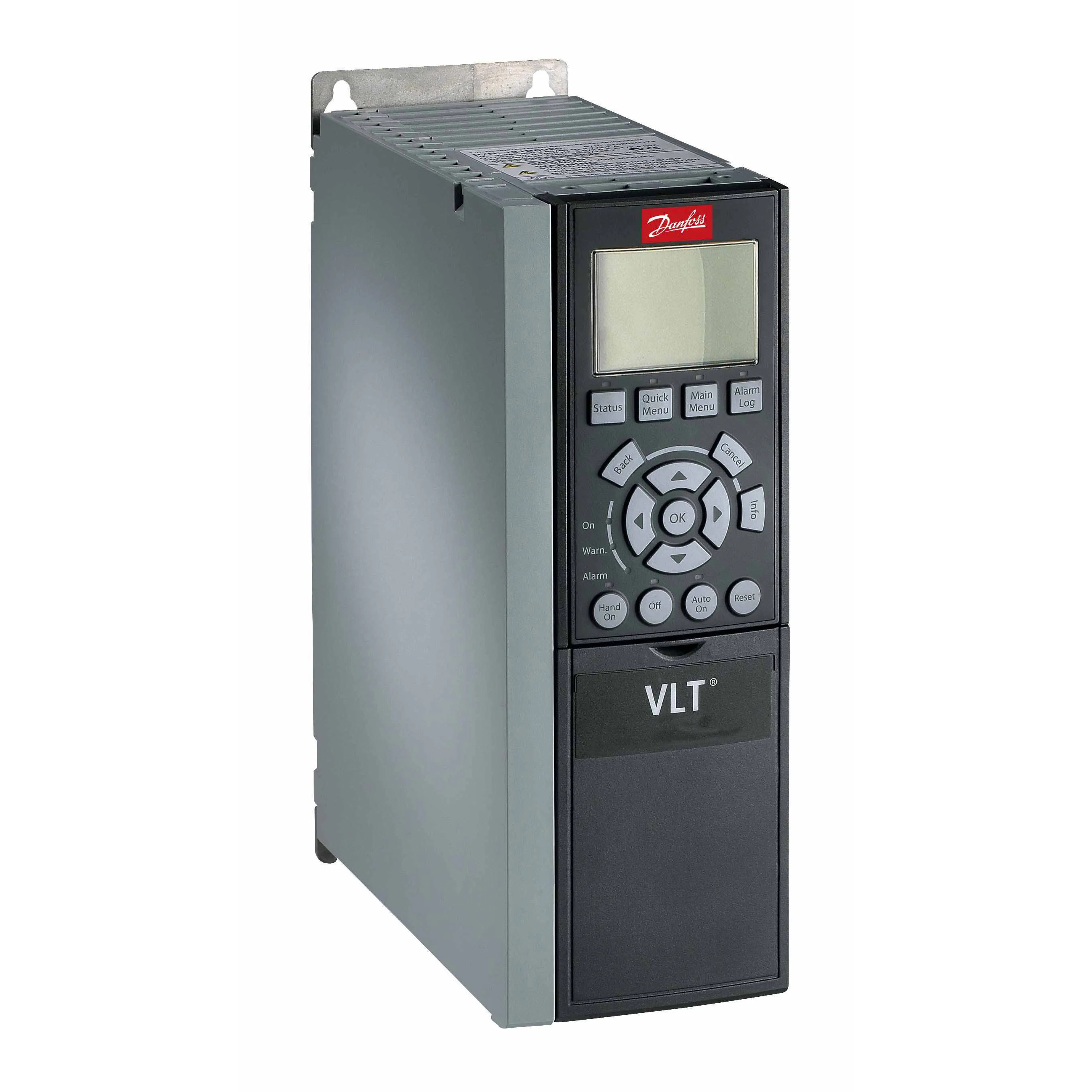

VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | PK75 | (PK75) 0.75 KW / 1.0 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 - 500 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H1 | (H1) RFI A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | X | No Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | A2 | A2 |
| Typecode Part 1 | FC-302PK75T5E20H1XXX | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 160% (HO) [KW] | 0.75 | |
| Height [mm] | 268,0 | |
| Width w/ no C options [mm] | 90,0 | |
| Depth [mm] | 205,0 | |
| Depth with Option A/B [mm] | 220,0 | |
| kVA | 1.66 | |
| Power Loss HO [W] | 46 | |
| Power Loss HO [W] | 46 | |
| Continuous Current (HO) [A] | 2.4 | |
| Intermittent Current (HO) [A] | 3.84 | |
| Continuous Current (HO) [A] | 2.1 | |
| Intermittent Current (HO) [A] | 3.36 | |
| Calculated Gross Weight [kg] | 4.82 | |
| Calculated Net Weight [kg] | 4.3 | |
| Material Gross Weight | 4.97 | |
| Material Net Weight | 4.38 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-302PK75T5E20H1XXX | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
