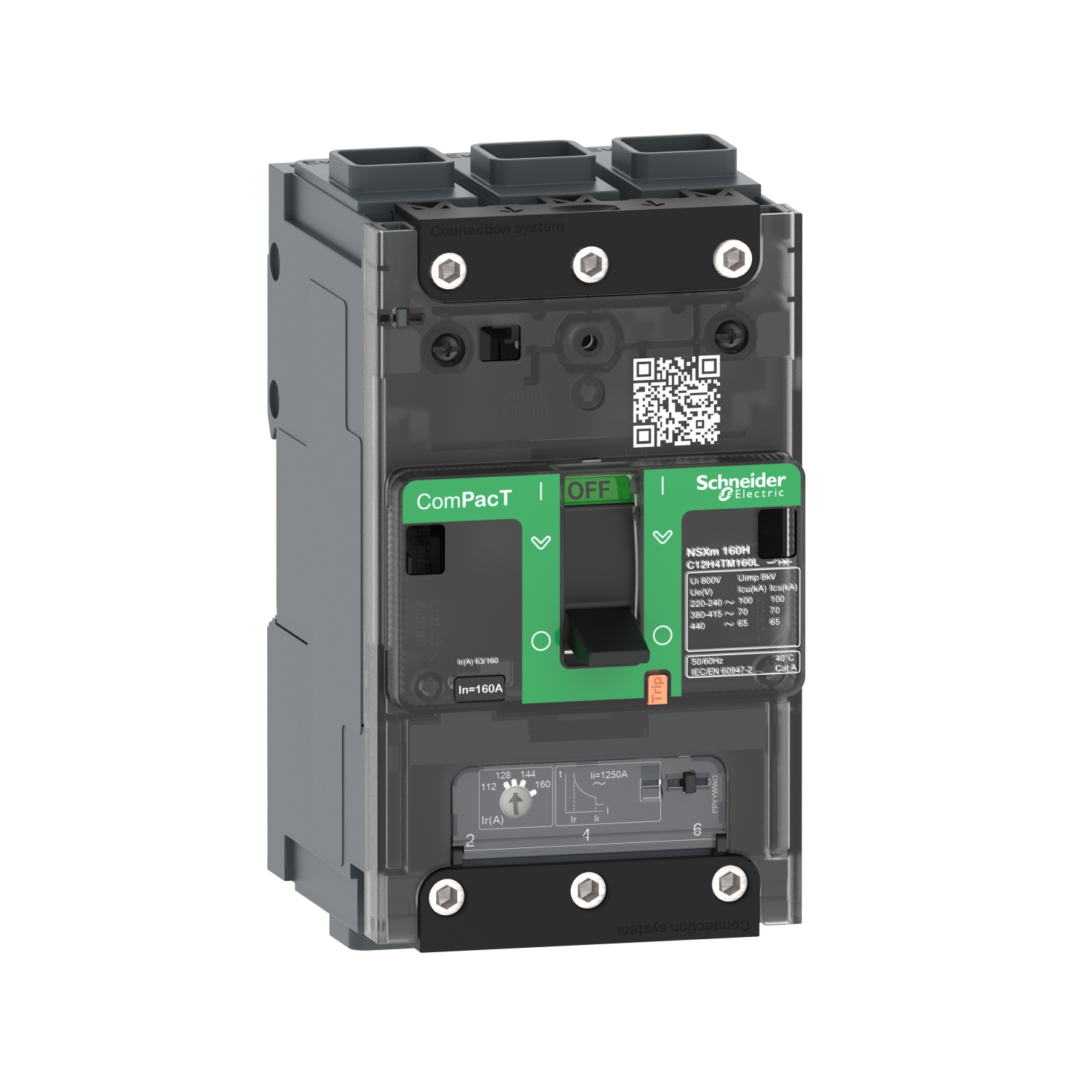

Product Series | ComPacT new generation |
---|---|
product name | ComPacT NSXm new generation |
Product short name | NSX100m 40E |
product type | Breaker |
Applications | Distribution protection |
Rated current[In] | 40 A |
Electrode description | 3P 3D |
Control type | Direct handle rotation handle extension rotation handle |
Installation type | Screw fixing (base plate mounting) snap locking (DIN rail mounting) |
Grid type | AC |
Grid frequency | 50/60 Hz |
Divide ability | E 16 kA 380...415 V AC |
[Icu] rated ultimate breaking capacity | Icu 25 kA 在…上 220...240 V AC 50/60 Hz Icu 16 kA 在…上 380...415 V AC 50/60 Hz Icu 10 kA 在…上 440 V AC 50/60 Hz |
Rated operating voltage [Ue] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
Use breaking capacity [Ics] | 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
Rated impulse withstand voltage [Uimp] | 8 kV conforming to IEC 60947-2 |
Rated insulation voltage [Ui] | 800 V conforming to IEC 60947-2 |
Trip unit type | Thermomagnetic |
Trip unit name | TM-D |
