    Home / 28903 switch disconnector Compact INS63 63A 4 poles

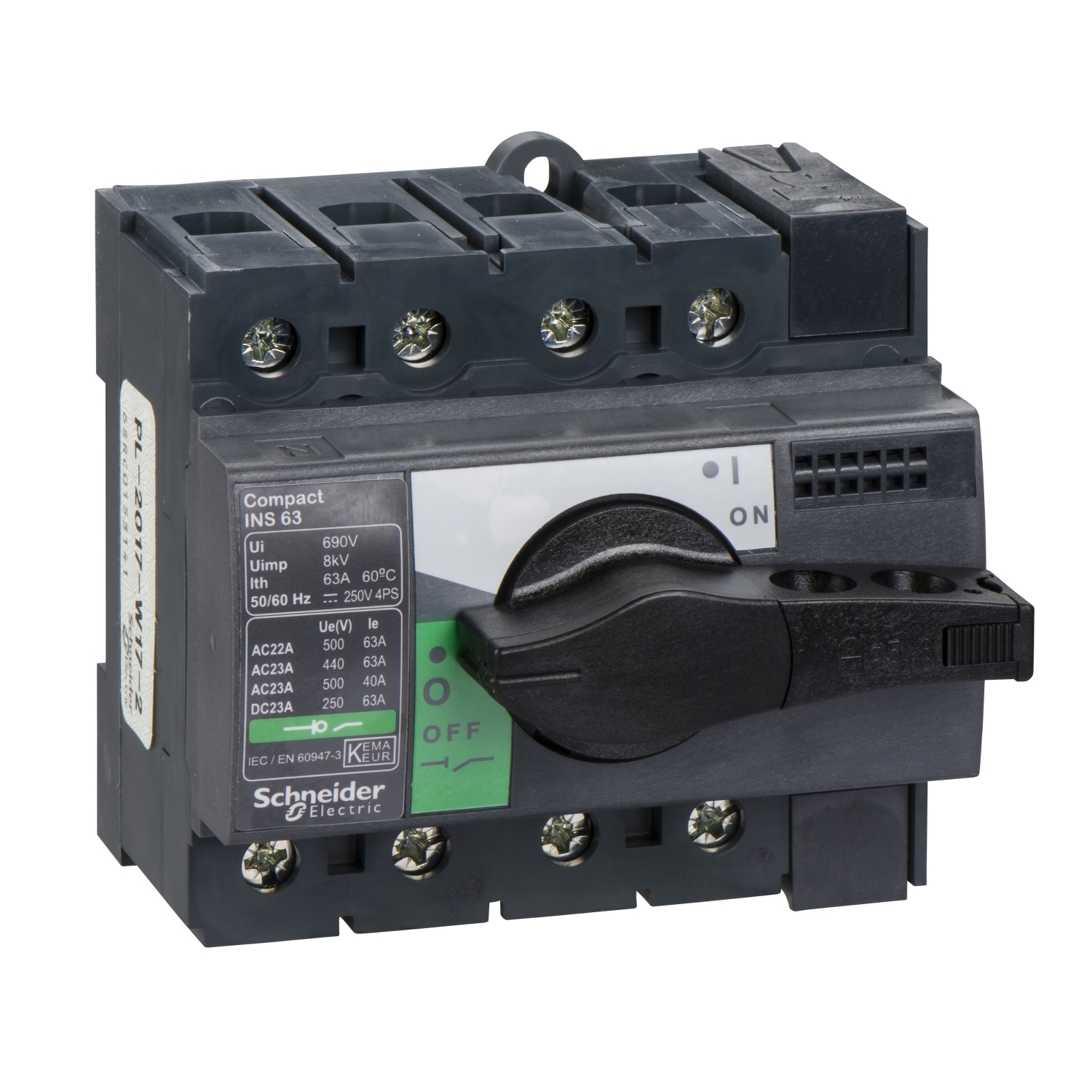

    28903 switch disconnector Compact INS63 63A 4 poles

    28903
    In stock, ship within 3-5 days
    $78.09 USD $0.00 USD
    Global low-cost shipping
    Free returns
    Carbon neutral
    Secure payments
    Quantity
    Only 220 left
    Volume Pricing
    Quantity
    Price
    1+
    $78.09 USD each
    Range ComPact
    Product name ComPacT INS
    product or component type Switch disconnector
    poles description 4P
    Network type DC
    AC
    Network frequency 50/60 Hz
    [Ie] rated operational current AC-22A: 63 A AC 50/60 Hz 220/240 V
    AC-22A: 63 A AC 50/60 Hz 380/415 V 2 poles in series
    AC-22A: 63 A AC 50/60 Hz 440/480 V 4 poles in series
    AC-22A: 63 A AC 50/60 Hz 500 V 4 poles in series
    AC-23A: 40 A AC 50/60 Hz 500 V
    AC-23A: 63 A AC 50/60 Hz 220/240 V
    AC-23A: 63 A AC 50/60 Hz 380/415 V
    AC-23A: 63 A AC 50/60 Hz 440/480 V
    DC-22A: 63 A DC 50/60 Hz 125 V 2 poles in series
    DC-23A: 63 A DC 50/60 Hz 125 V 2 poles in series
    DC-22A: 63 A DC 50/60 Hz 250 V 4 poles in series
    DC-23A: 63 A DC 250 V 4 poles in series
    [Ui] rated insulation voltage 690 V AC 50/60 Hz
    [Uimp] rated impulse withstand voltage 8 kV
    [Ith] conventional free air thermal current 63 A at 60 °C
    Suitability for isolation Yes
    Contact position indicator Yes
    Visible break No
    Pollution degree 3
