| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 2080-LC20-20QWB |
| IEC 61131-3 Languages: | Ladder Diagram, Function Block, Structured Text |
| Data (bytes): | 20Kbytes (up to 400bytes non-volatile) |
| Program Steps (or instructions): | 10Ksteps |
| Plug-in slots: | 2 |
| Communication ports: | One (1) Ethernet; One (1) RS232; One (1) USB |
| No. of Analog inputs: | Four (4) 0-10V (shared with 24V DC) |
| No. of Outputs: | Seven (7) Relay outputs; |
| No. of Inputs: | Twelve (12) 24VDC / VAC discrete inputs; |

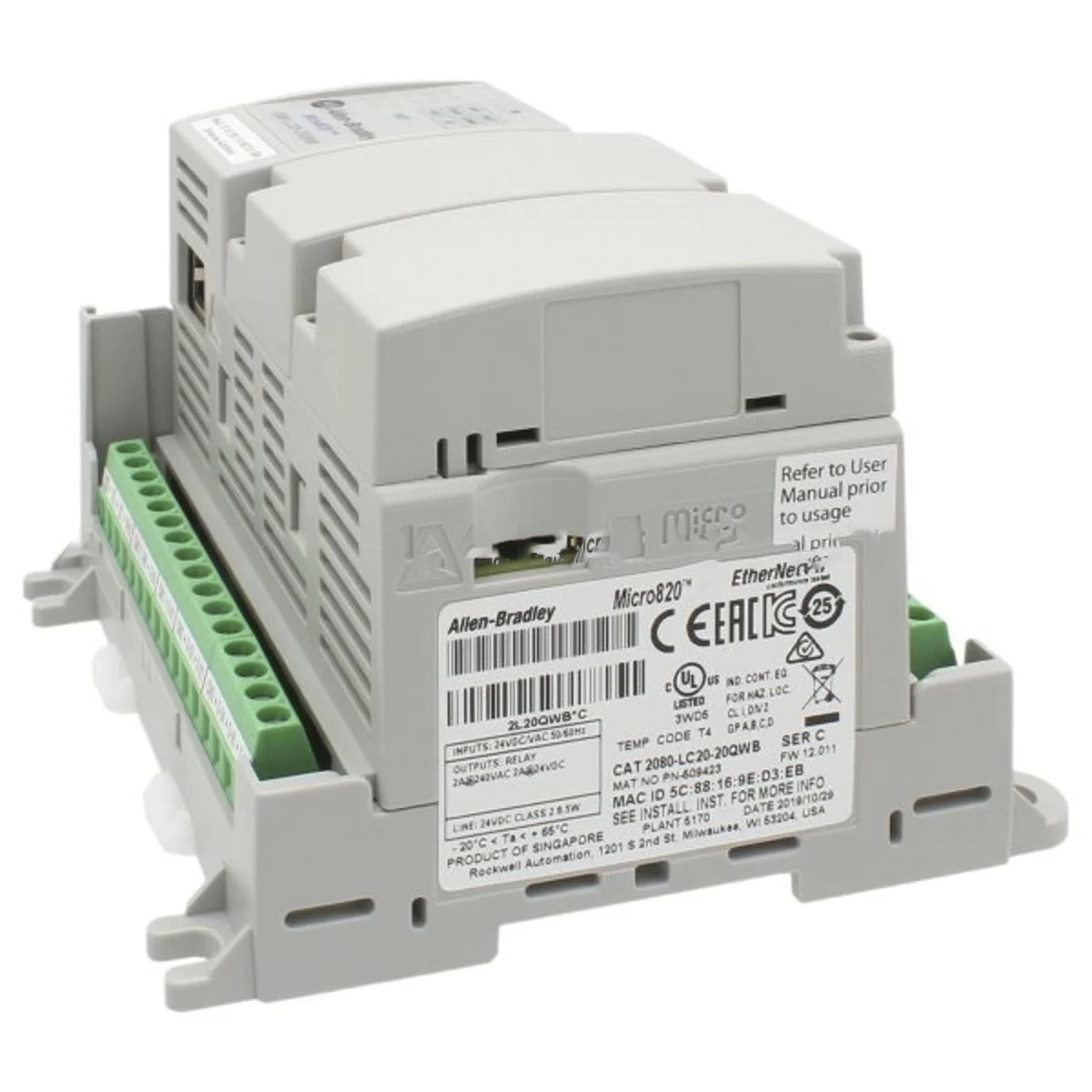

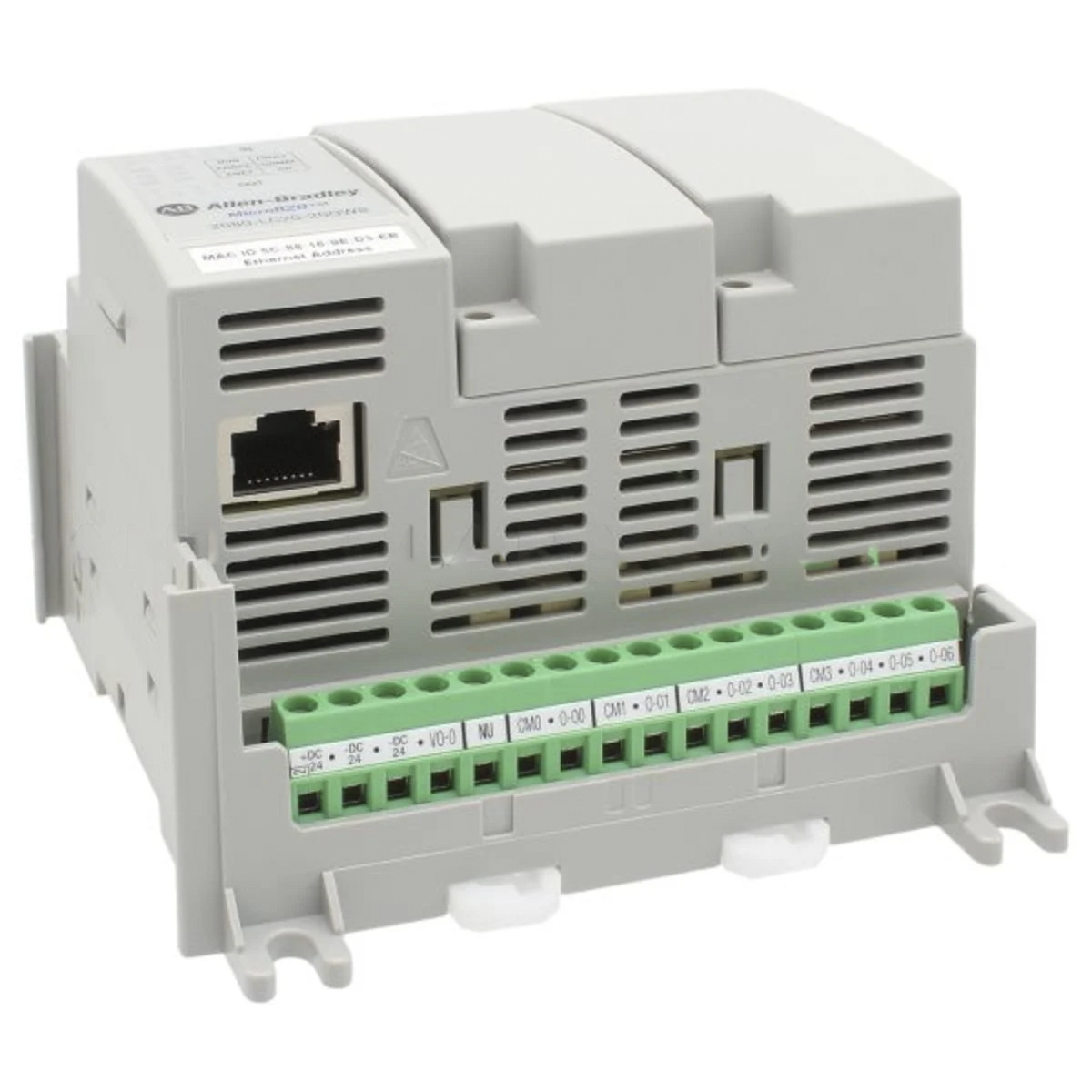

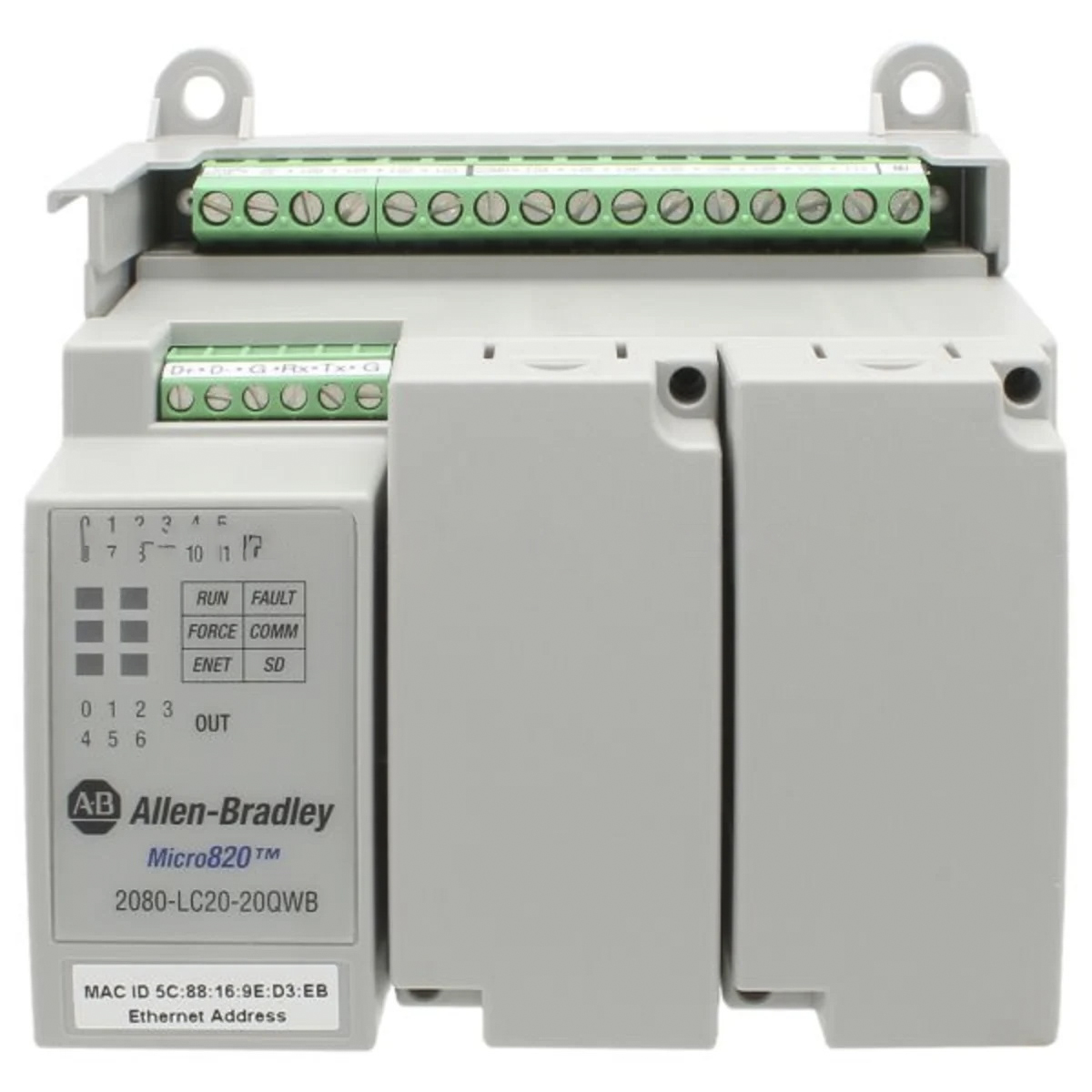

| Product Description: | Micro 820 Programmable Logic Controller (PLC) |
| Product Family: | Micro 800 |
| Brand | Allen-Bradley |
| Product Type | Programmable Controller |
| Inputs | 12(24V DC) |
| Outputs | 7(Relay); 1 (Analog Out) |
| Dimensions HxWxD | 3.54 x 4.09 x 2.95 in. |
| Power Input | 24V DC |
| Power Dissipation | 6 W |
| Power Supply Voltage Range | 20.4-26.4V DC, Class 2 |
| Enclosure | Meets IP20 |
| Non-Isolated DC Input On-state Voltage Range | 9.8-26.4V DC |
| Relay Output Voltage min. | 5V DC/ AC |
| Relay Output Voltage max. | 250V AC |
| Pilot Duty Rating | C300, R150 |
| Terminal Block | Fixed |
