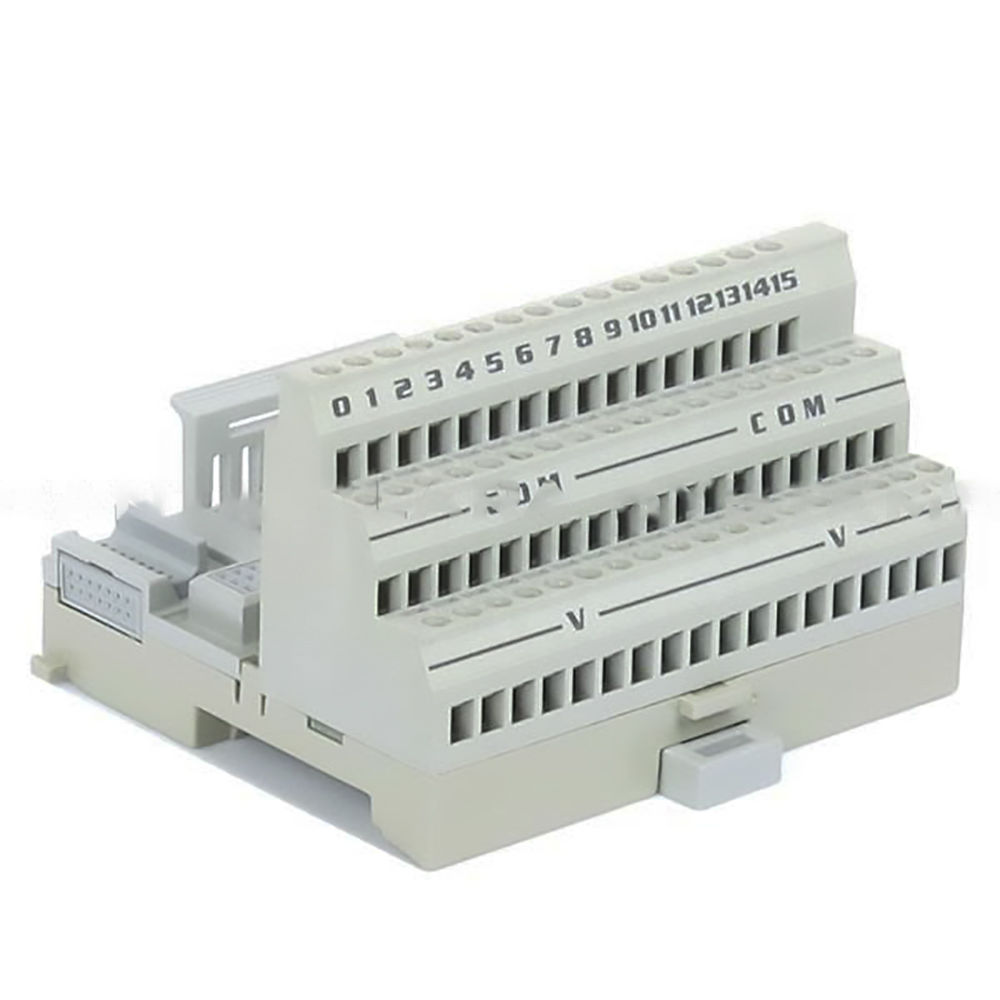

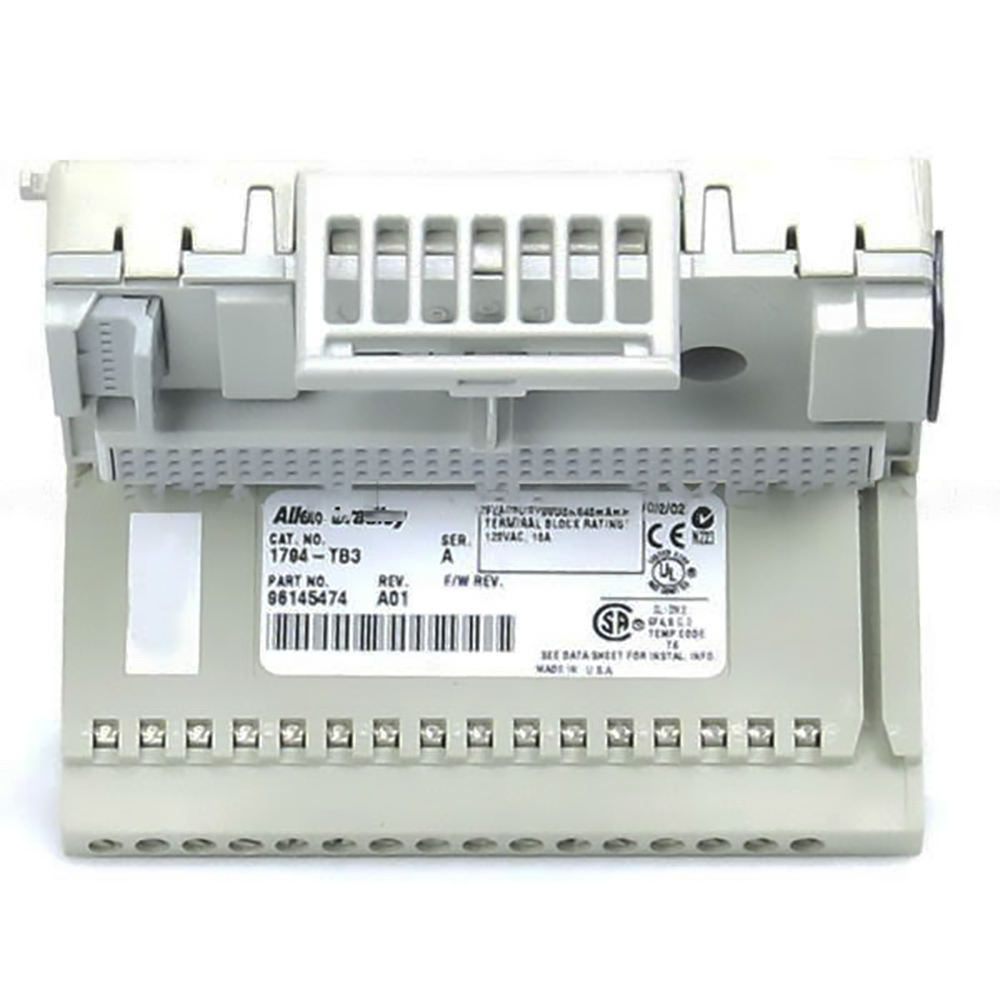

Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Part Number/Catalog No. |
1794-TB3 |
Product Type |
Flex I/O Terminal Base Unit |
Terminal Screw Torque |
0.56-0.79 Nm |
No. of Terminal strips |
Three (3) |
Module Type |
Terminal Base Unit |
No. of terminals |
52 |
Connection type |
Screw clamp |
Supply Voltage Range max. |
125V DC/AC, 50/60Hz, 10A |
No. of terminal rows |
2 terminal rows |
Terminal strip assignment |
Top: I/O terminals Middle: Common terminal bottom: Supply terminal |
Isolation Voltage |
125V Continuous |
I/O terminals: |
Sixteen (16) terminals |
Terminal row assignments |
1 row with 16 terminals; 1 row with 18 terminals |
Voltage Rating |
24V DC/AC, 120V DC/AC |
Common / Supply terminals |
Eighteen (18) terminals |
Terminal assignment |
0-15: I/O connections 16-33: Voltage common connection 34-51: Voltage + connection |
Wire Size |
0.34-3.3mm^2 |
Conductors |
12 gauge or 4 mm2 (max); 22 gauge or 0.35 mm2 (min) 3/64 inch or 1.2 mm insulation thickness |
Daisy-chaining: |
Supported |
Dimensions |
94x94x69 mm |
Voltage rating, max. |
132 VAC |
UPC |
10662468112359 |
FlexBus current draw: |
640 mA @ 5VDC |
Installation: |
DIN Rail |
