Manufacturer |
Rockwell Automation |
Current capacity @ 24V |
2.0 A |
Current capacity @ 5V |
4.0 A |
Power dissipation |
14.5 W @ 60° C (140° F) |
Power consumption |
100 VA @ 24V DC |
Input Voltage Range |
19.2-31.2VDC |
Nom Input Voltage |
24VDC |
Inrush current, max |
30 A @ 31.2V DC |
Isolation Voltage |
75V (continuous), reinforced insulation type (IEC Class 1 grounding required) Routine tested at 1697V DC for 1 s, DC power input to system |
Fuse Type |
Wickmann 19193-6.3A Littelfuse 021706.3MXP |
Module location |
DIN rail or panel mount |
Part Number/Catalog No. |

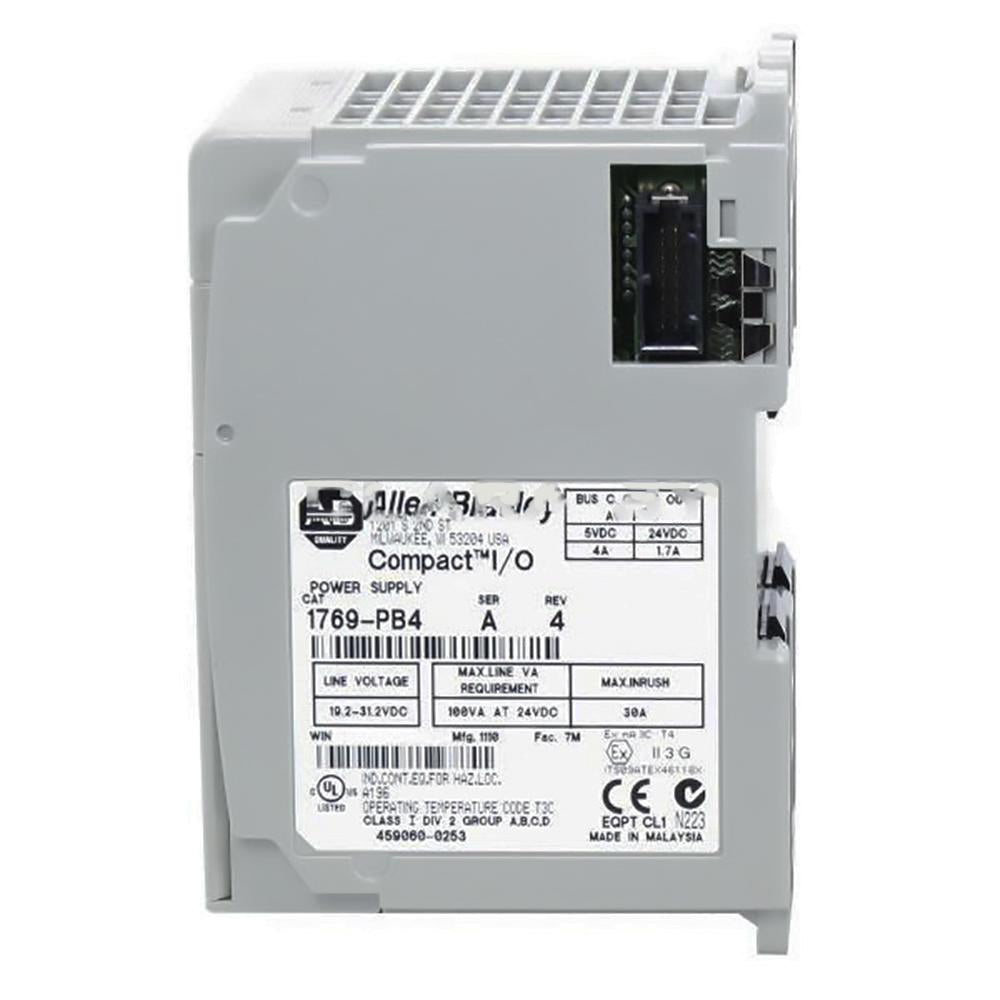

1769-PB4 |
Brand |
Allen-Bradley |
Module Type |
Power Supply |
Dimensions |
118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) |
Weight |
630 g (1.39 lb) |
Product Line |
CompactLogix |
Input Power |
24 Volts DC |
Shipping Dimensions |
8 x 8 x 5 inches |
Enclosure |
Open |
Mounting |
Panel or DIN Rail |
Power Supply Distance Rating |
8 Modules |
Wire Type |
Copper-90 |
Solid Wire Size |
22 to 14 AWG |
Operating shock |
20G |
Stranded Wire Size |
22 to 16 AWG |
UPC |
10612598276896 |
