Product Type: | I/O Power Supply |
Certifications: | c-UL-us; CE; C-Tick |
Wire size: | 14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max |
Weight: | 485 g (1.07 lb) |
Dimensions (HxWxD), approx.: | 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.) |
Fuse type: | Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
Inrush current, max: | 30 A @ 31.2V DC |
Current capacity @ 24V DC: | 0.8 A |
Current capacity @ 5V DC: | 2.0 A |
Power consumption: | 7.5 W @ 60 °C (140 °F) |
Input Voltage range: | 19.2-31.2 VDC |
Manufacturer | Rockwell Automation / Allen-Bradley |
Power Supply Distance Rating | 8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module. |
Brand | Allen-Bradley |

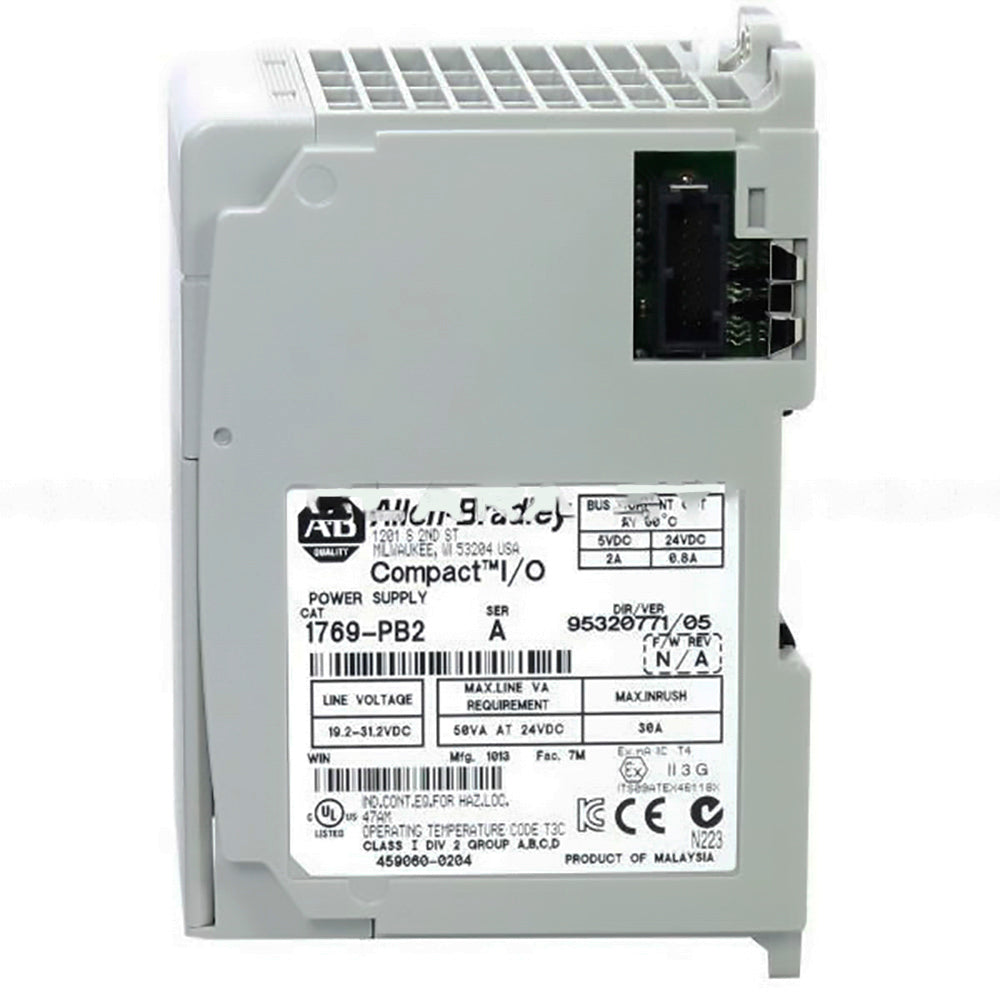

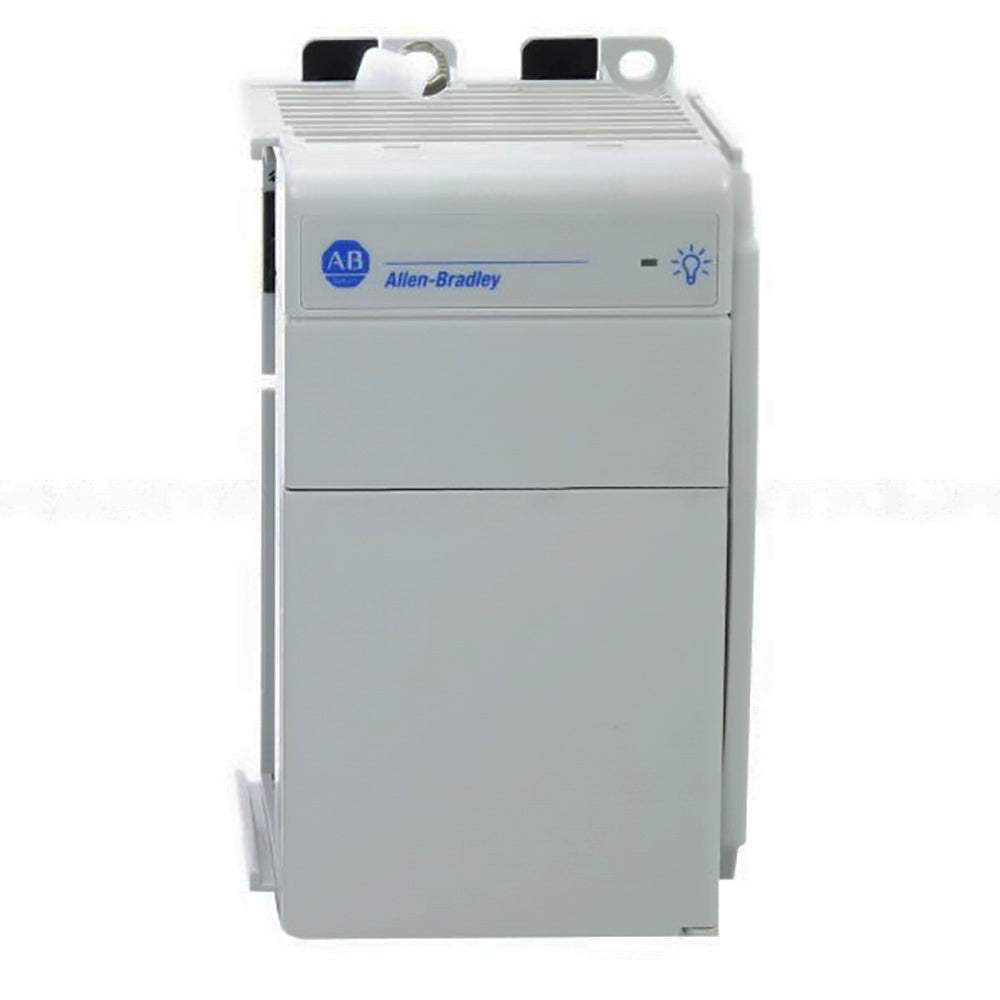

Part Number/Catalog No. | 1769-PB2 |
Product Line | CompactLogix |
Module Type | DC Power Supply Module |
Input Power | 24VDC |
Shipping Weight | 2 pounds |
Shipping Dimensions | 8 x 8 x 5 inches |
Enclosure Type | Open |
Series | A and B |
Wire Type | Copper 90 degrees |
Solid Wire Size | 22 to 14 AWG |
Stranded Wire Size | 22 to 16 AWG |
UPC | 10662468992968 |
