Manufacturer | Rockwell Automation / Allen-Bradley |
Brand | Allen-Bradley |

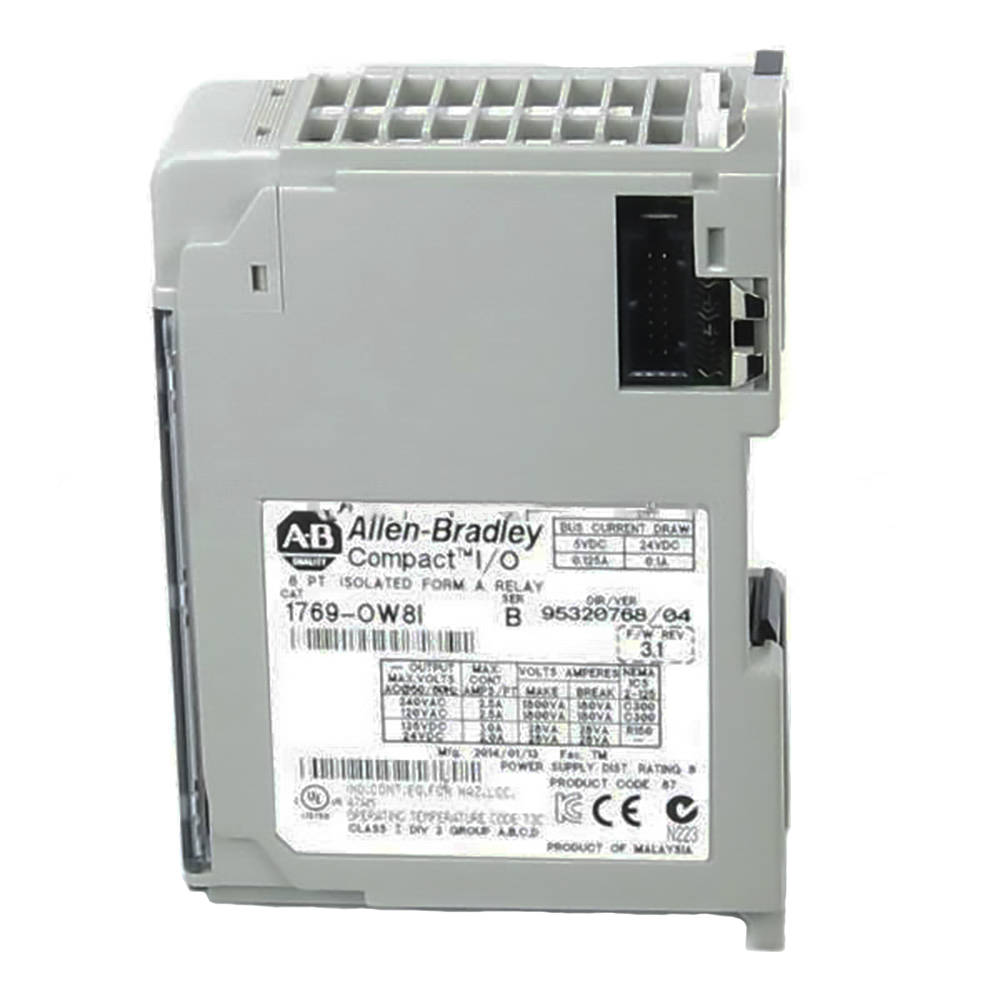

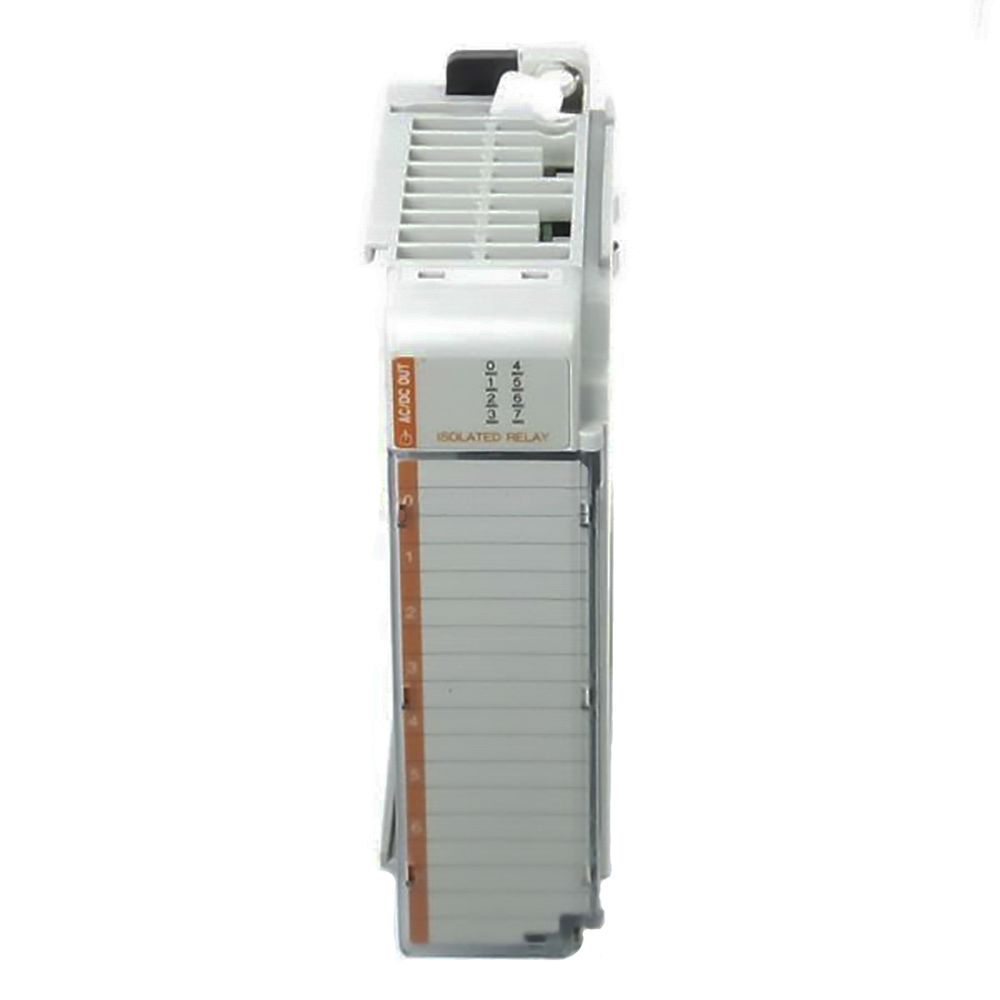

Part Number | 1769-OW8I |
Product Family: | Compact I/O |
Product Line | CompactLogix |
Product Type: | Discrete Output Module |
No. of outputs: | Eight (8) Individually Isolated |
I/O Type | Contact |
Compatible controllers: | MicroLogix 1500; CompactLogix controllers |
Communication Cable | 8 Point |
Voltage Category: | AC/DC normally open relay |
Shipping Weight | 2 pounds |
Operating Voltage range: | 5 to 265V ac 5 to 125V dc |
Signal delay, On: | 10 ms |
Series | A and B |
Wire Type | Copper 90 degrees |
Bus Current draw, 5.1 V: | 125 mA |
Solid Wire Size | 22 to 14 AWG |
Bus Current draw, 24 V: | 100 mA |
Stranded Wire Size | 22 to 16 AWG |
Heat Dissipation: | 2.83 Watts |
Slot width: | 1 |
Mounting: | DIN Rail or Panel Mount |
Power Supply: | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
Wire Size: | (22…14 AWG) solid (22…16 AWG) stranded |
