Brand |
Allen-Bradley |
Conversion Rate (all channels) max. |
5 ms |
Resolution |
16 bit |
Output Current Range |
0-21 mA; 3.2 mA - 21 mA |
Output Current |
0-20 mA / 4-20 mA |
No. of Outputs |
Eight (8) Current outputs |
Overall Accuracy |
±0.35% full scale at 25°C |
Open and Short-Circuit Protection |
Yes |
Maximum Short-Circuit Current |
21 mA |
Current draw |
145 mA at 5VDC; 185 mA at 24V dc |
Channel Diagnostics |
Over- or under-range by bit reporting output wire broken or load resistance high by bit reporting |
Manufacturer |
Rockwell Automation |
Part Number/Catalog No. |

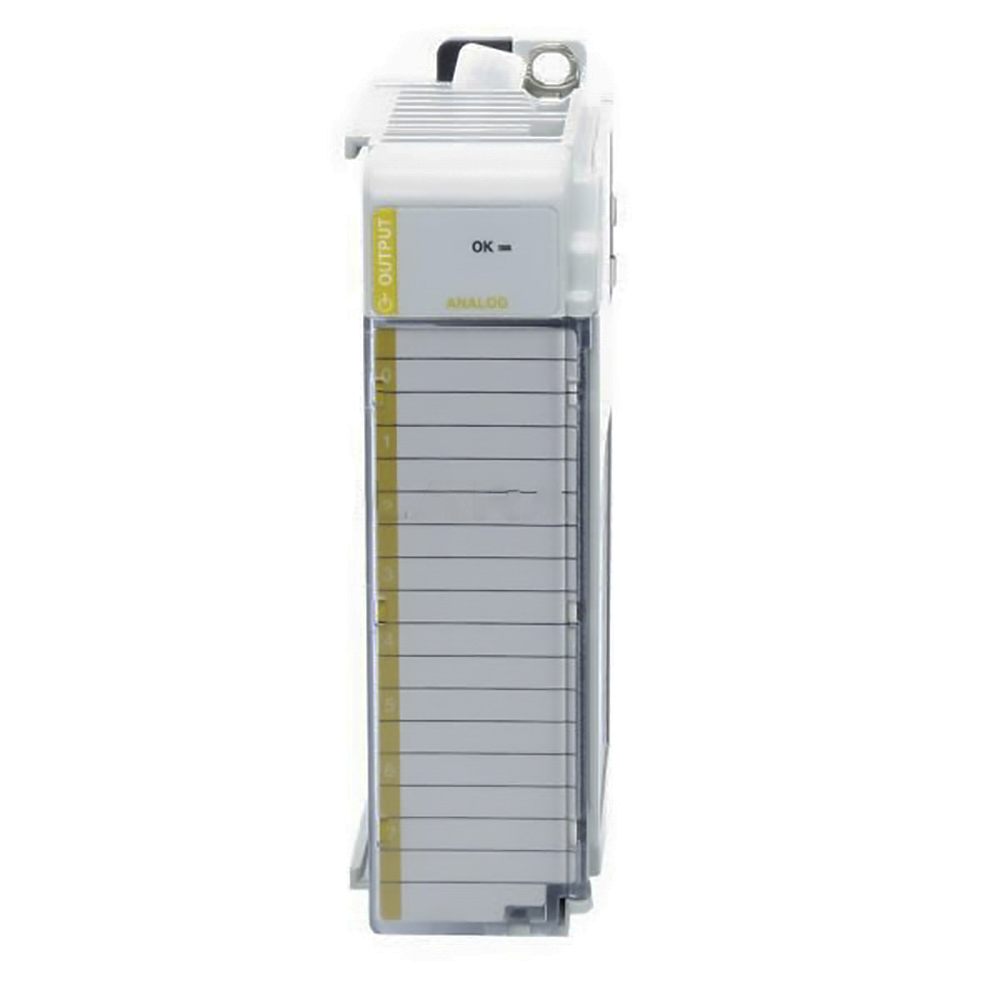

1769-OF8C |
Module Type |
Analog Output Module |
Series |
1769 Compact I/O |
Enclosure |
None |
Product Line |
CompactLogix |
Input Type |
Output Current |
Communication Cable |
8 Point |
Shipping Weight |
2 pounds |
Shipping Dimensions |
8 x 8 x 5 inches |
Converter Type |
Delta Sigma |
Outputs |
8 single-ended |
Replacement Door Part Number |
1769-RD |
Wire Type |
Copper-90 degrees |
Solid Wire Size |
22 to 14 AWG |
Stranded Wire Size |
22 to 16 AWG |
Heat dissipation |
2.69 Watts |
UPC |
10662468861622 |
