| Manufacturer | Rockwell Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Product Family: | Compact I/O |

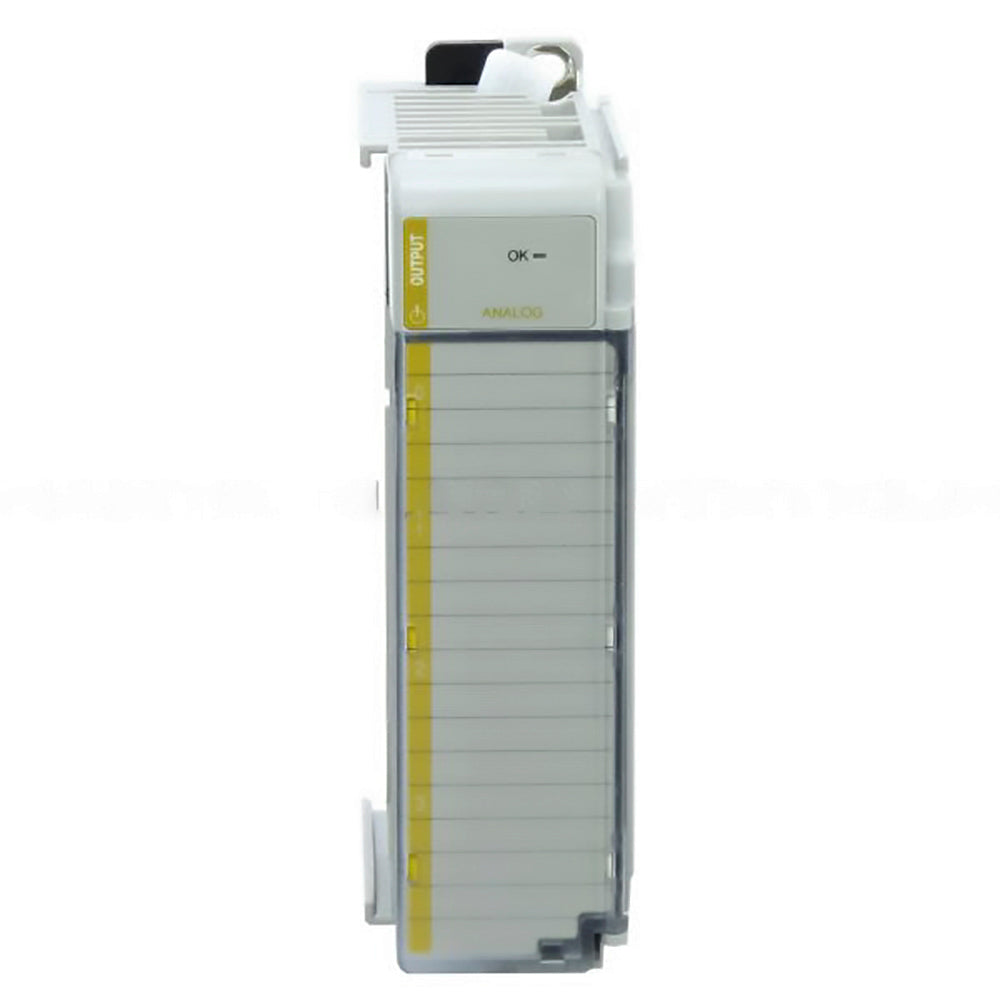

| Part Number/Catalog No. | 1769-OF4 |
| Product Line | CompactLogix |
| Module Type | Analog Output Module |
| No. of Outputs: | Four (4) Single Ended |
| Input Type | Analog Output |
| Compatible Controllers: | MicroLogix 1500; CompactLogix |
| Communication Cable | 4 Point |
| Shipping Weight | 2 pounds |
| Power Supply Distance rating: | 8 |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Analog Ranges: | Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA |
| Full scale analog ranges: | Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc Current: 0 - 21 mA, 3.2 - 21 mA |
| Series | A and B |
| Analog data format: | 15 bits plus sign unipolar and bipolar |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Replacement Door Part Number | 1769-RD |
| Conversion rate: | 2.5 ms |
| Current draw @ 5.1V: | 120 mA |
| Wire Type | Copper |
| Current draw @ 24V: | 170 mA |
| Solid Wire Size | 22 to 14 AWG |
| Stranded Wire Size | 22 to 16 AWG |
| Heat Dissipation: | 2.86 W |
| UPC | 10612598840783 |
| Calibration: | None required (guaranteed by hardware design) |
| Non-linearity (in percent full scale): | ±0.05% |
| Slot width: | 1 |
