No. of Outputs: |
Two (2) Single Ended |
Analog Ranges: |
Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA |
Power Supply Distance rating: |
8 |
Full scale analog ranges: |
Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc Current: 0 - 21 mA, 3.2 - 21 mA |
Resolution: |
14 bits (unipolar); 14 bits plus sign (bipolar) |
Step response: |
2.9 ms |
Conversion Rate |
2.5 ms |
Current draw @ 5.1V: |
120 mA |
Heat Dissipation: |
2. 36 W |
Calibration: |
None required (guaranteed by hardware design) |
Compatible Controllers: |
MicroLogix 1500; CompactLogix |
Manufacturer |
Rockwell Automation / Allen-Bradley |
Slot width: |
1 |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

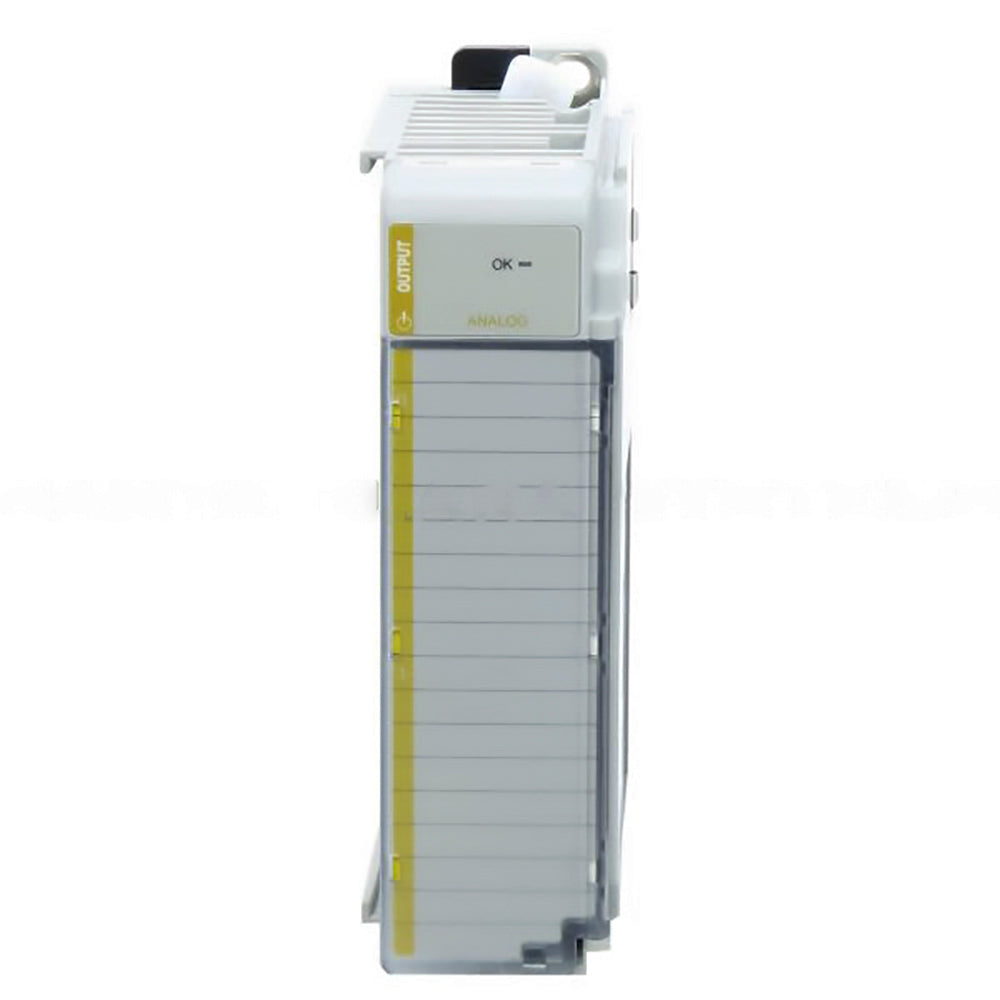

1769-OF2 |
Product Line |
CompactLogix |
Module Type |
Analog Output Module |
Input Type |
Analog |
Communication Cable |
2 Point |
Shipping Weight |
2 lbs. |
Shipping Dimensions |
8 x 8 x 5 in. |
Series |
A and B |
Wire Size (Solid) |
22 to 14 AWG |
Replacement Terminal Block |
1769-RTBN18 |
Replacement Door |
1769-RD |
Mounting |
Panel Mount or DIN Rail |
UPC |
662468992947 |
UPC |
10662468992944 |
UNSPSC |
32151705 |
