Brand | Allen-Bradley |
Operating Shock: | 30 g |

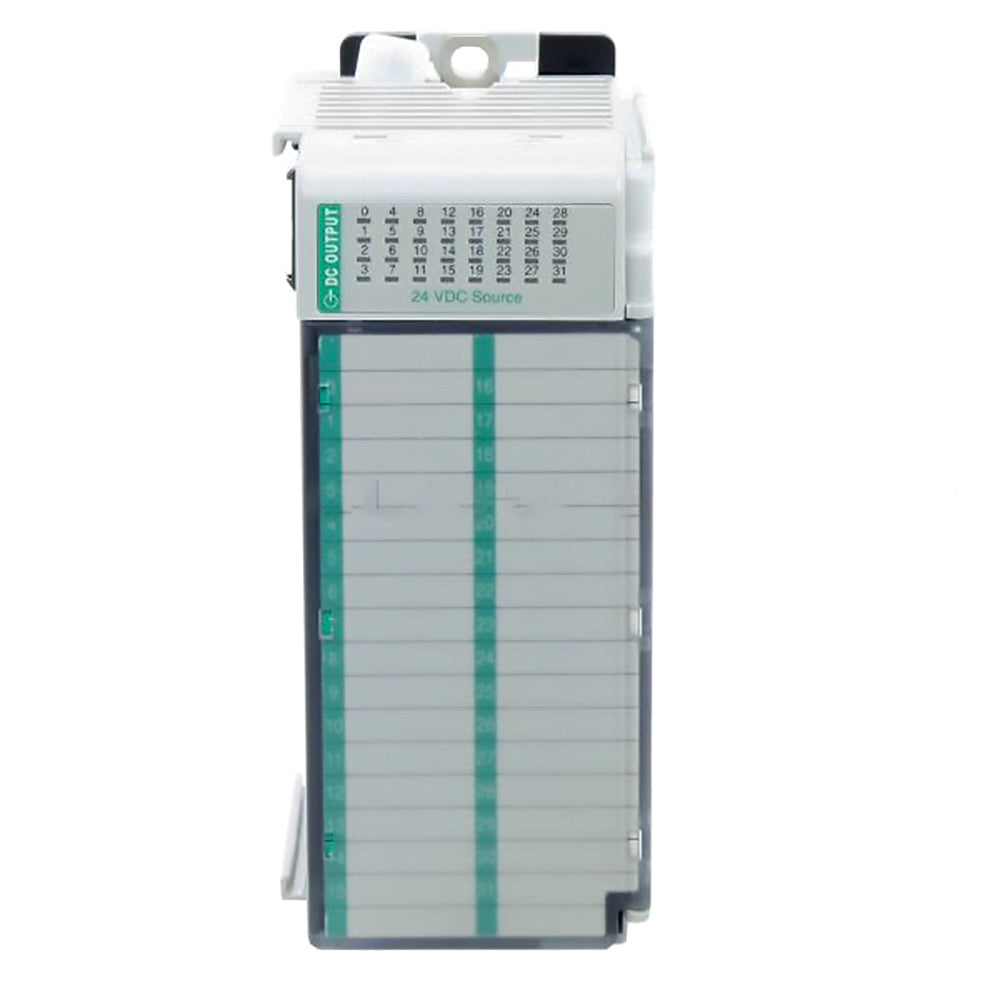

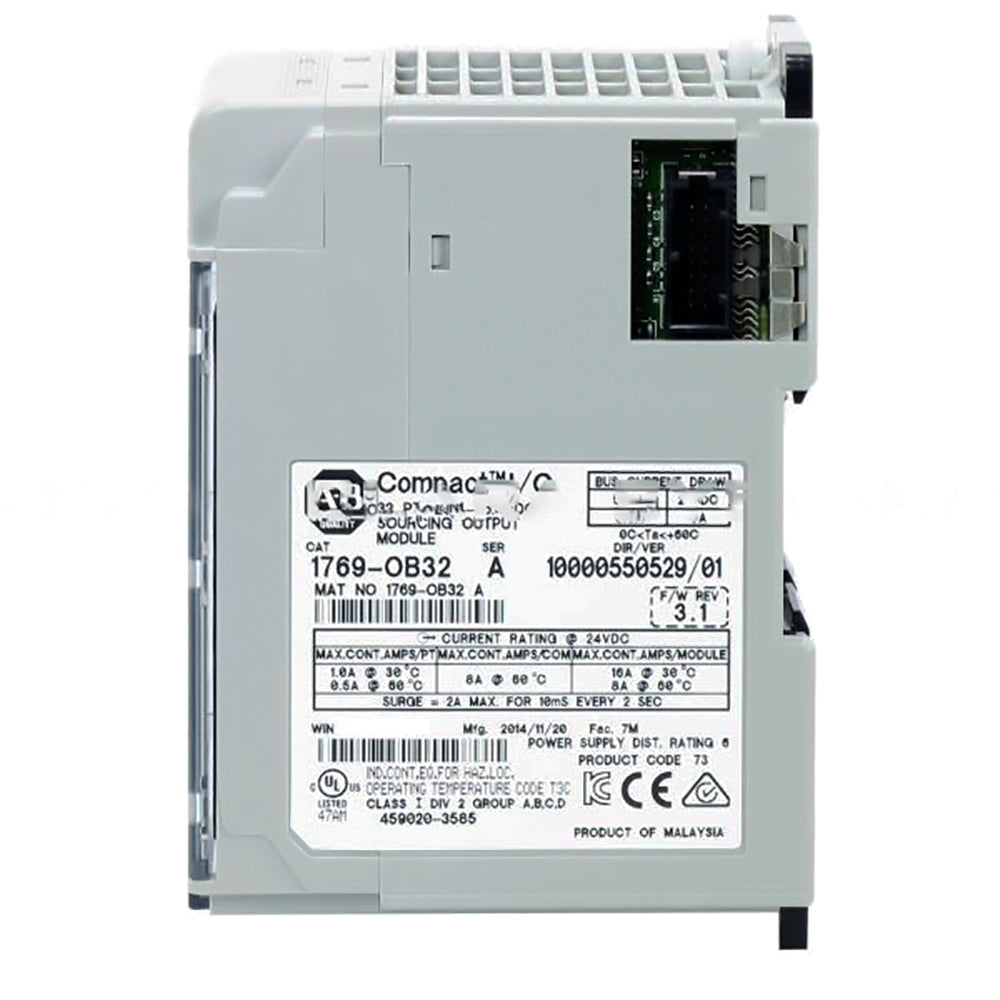

Part Number/Catalog No. | 1769-OB32T |
Product Line | CompactLogix |
Module Type | DC Output Module |
Input Type | Digital Output |
Communication Cable | 32 Point |
Shipping Weight | 2 lbs. |
Shipping Dimensions | 8X8X5 in. |
Series | A and B |
Wire Size (Stranded) | 22-16 AWG |
Replacement Terminal Block | 1769-RTBN18 |
Replacement Door | 1769-RD |
UPC | 10662074455352 |
UNSPSC | 32151705 |
Mounting | DIN Rail |
Enclosure | Open-type |
Power Supply Distance rating | 8 |
Max. continuous output current per module | 4. 0A |
Max. continuous output current per point: | 2.0 A |
ON state Voltage, nom: | 24VDC |
ON state Voltage, max. | 26.4 VDC |
ON state Voltage, min: | 10.2 VDC |
Compatible controllers | 1769 CompactLogix; MicroLogix 1500 |
Number of Outputs: | 32 |
Module Description | 32-channel sourcing output module |
Product family | 1769 Compact IO |
Operating Temperature: | 0 to 60 C (32 to 140 F) |
Storage Temperature: | -40 to 85 C (-40 to 185 F) |
Vibration: | 5g @ 10 to 500 Hz |
Manufacturer | Rockwell Automation |
