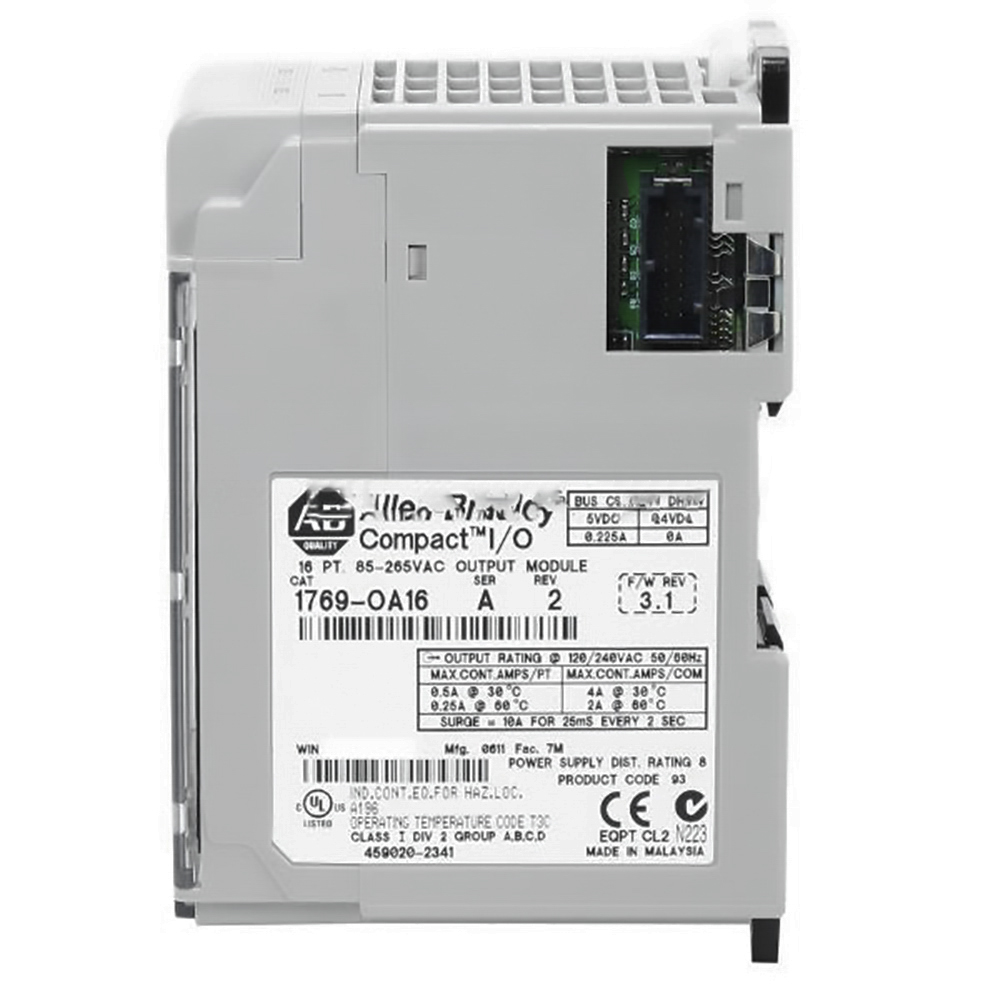

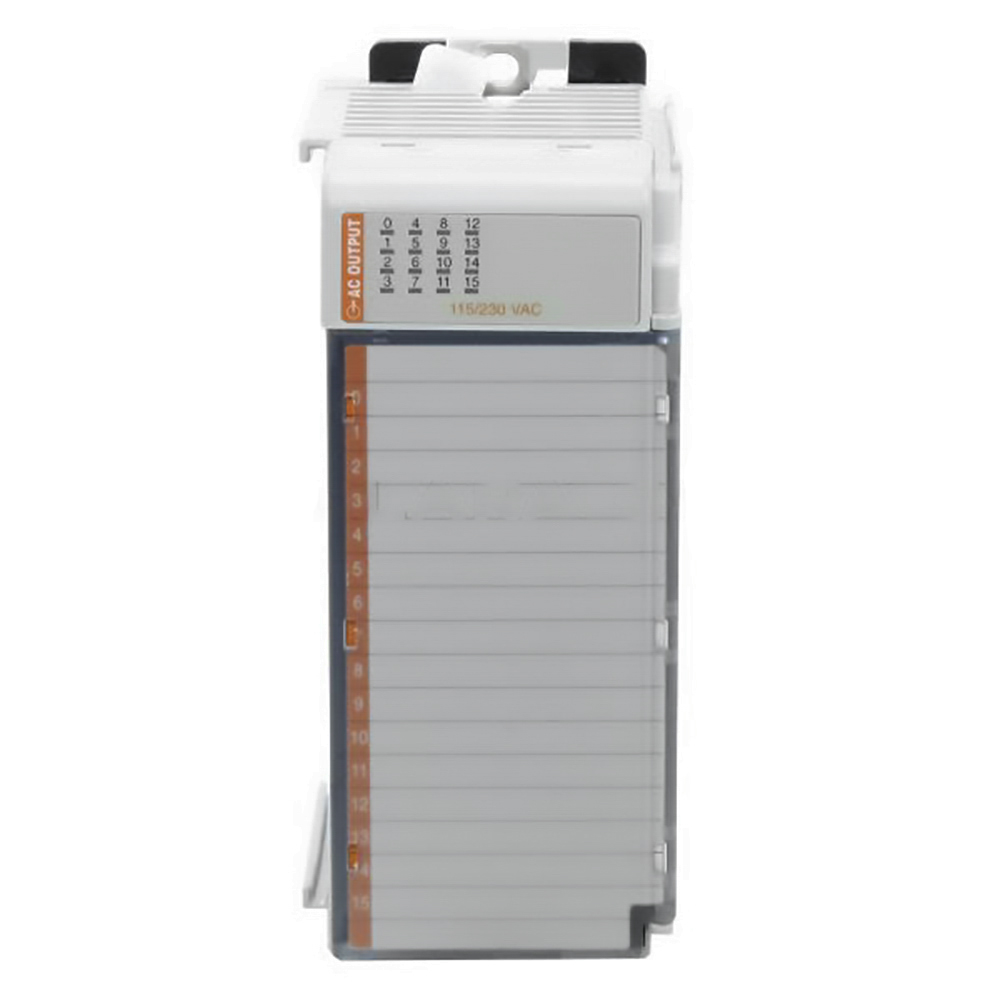

Module Type | Digital AC Output Module |
Part Number/Catalog No. | 1769-OA16 |
Brand | Allen-Bradley |
Manufacturer | Rockwell Automation |
Series | 1769 Compact I/O |
No. of Outputs | Sixteen (16) outputs |
No. of groups | Two (2) output groups |
Output Voltage | 120/240 VAC output |
Operating Voltage Range | 85-264 VAC |
Output Delay Time, OFF to ON | ½ cycle |
OFF state leakage current | 2.0 mA @ 132V AC 2.5 mA @ 265V AC |
Backplane Current at 5.1 Volts | 225 mA |
Continuous current per point | 0.50 A @ 30 °C (30 °C) 0.25 A @ 55 °C (60 °C) |
Continuous current per module, max | 2.0 A @ 30 °C (30 °C) 4.0 A @ 55 °C (60 °C) |
Product Line | CompactLogix |
Communication Cable | 16-Point |
Shipping Weight | 2 pounds |
Shipping Dimensions | 8 x 8 x 5 inches |
Wire Type | Copper 90 degrees Celsius |
Enclosure | Open |
Power Supply Distance Rating | 8 Modules |
Voltage Category | 100 to 240 Volts AC |
Wire Size (Solid) | 22-14 AWG |
Wire Size (Stranded) | 22-16 AWG |
UPC | 10612598286222 |
