Programming Language: | Relay ladder (Safety Task only) , Structured Text, Function block, SFC |
No. of Analog Outputs: | 2 (Single Ended) |
No. of Analog Inputs: | 4 (Differential or Single Ended) |
No. of Embedded Outputs: | (16) 24 VDC Sourcing |
No. of Embedded Inputs: | (16) 24 VDC Sinking / Sourcing |
No. of Program per Task: | 100 |
No. of Task: | 32 Task |
No. Of Axes over Ethernet: | 16 axes |
Supported Protocols: | Ethernet I/P |
Communication ports: | (1) USB; (2) Ethernet I/P; |
No. of HSC outputs: | 4 |
Analog Input Type: | • Thermocouple: J, K, T, E, R, S, B, N, and C • Voltage • Current • RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518 • Resistance |
Analog Output Type: | Voltage: • 0…5V • 1…5V • 0…10V • -10V…+10V Current: • 0…20 mA • 4…20 mA |
Product Type: | CompactLogix Controller |
Product Family: | 5370 L2 Controller |
Manufacturer | Rockwell Automation / Allen-Bradley |
Memory | 1MB |
Mounting: | DIN Rail |
Brand | Allen-Bradley |

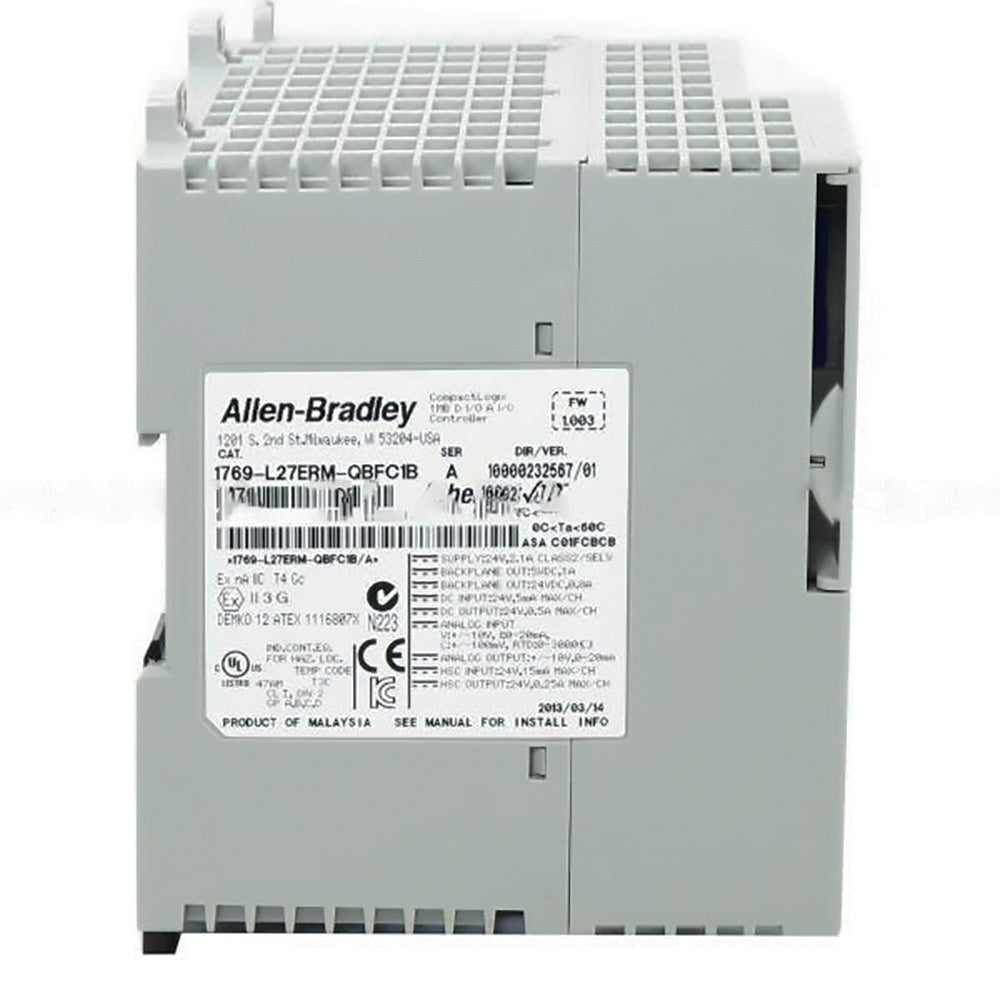

Part Number/Catalog No. | 1769-L27ERM-QBFC1B |
Product Line | CompactLogix |
Module Type | Processor Module |
Communication | Ethernet |
Shipping Weight | 3 pounds |
Shipping Dimensions | 11 x 8 x 6 inches |
Series | A and B |
Replacement Terminal Block | 1769-RTBN18 |
Wire Type | Copper-90 degrees Celsius |
Wire Size (Solid) | 22 to 14 AWG |
Wire Size (Stranded) | 22 to 16 AWG |
Programming | Relay Ladder, Structured Text, Function Block, SFC |
