Manufacturer |
Rockwell Automation / Allen-Bradley |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

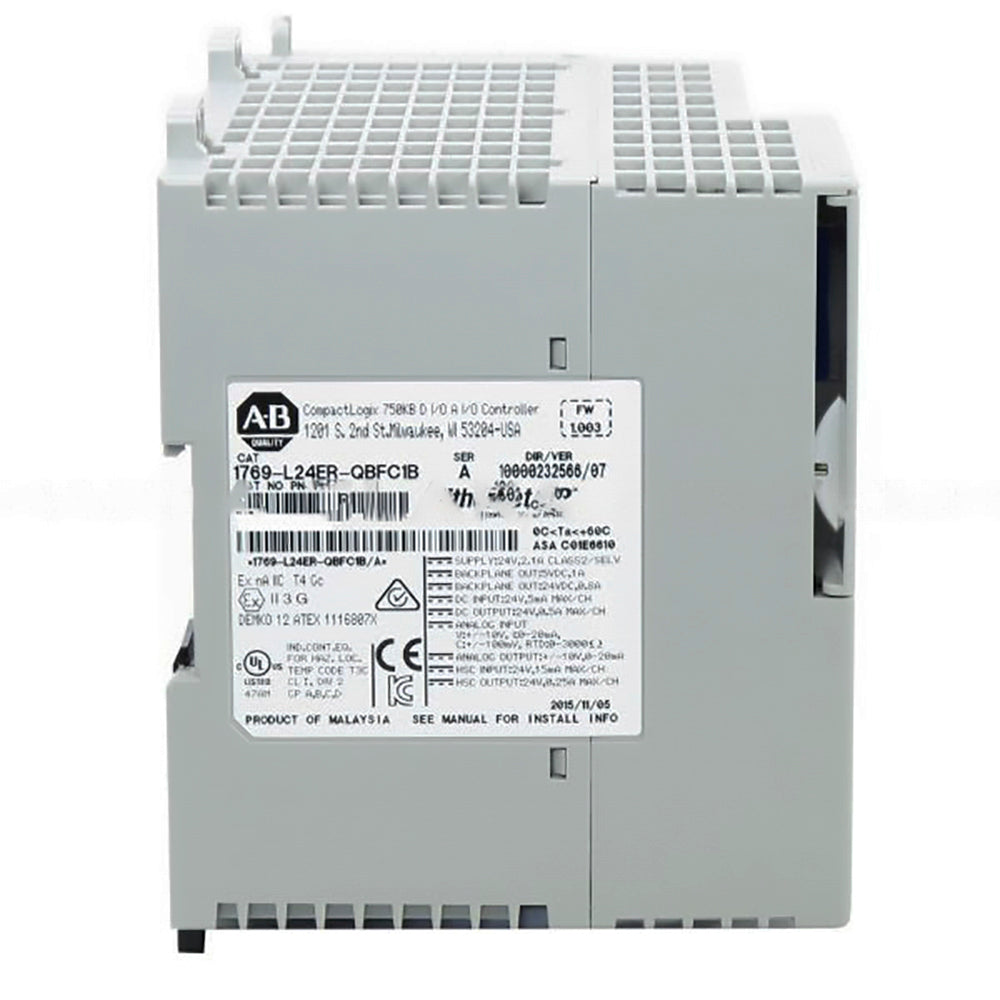

1769-L24ER-QBFC1B |
Product Type: |
Programmable Automation Controller |
Product Line |
CompactLogix |
Module Type |
Processor Module |
Communication ports: |
(1) USB; (2) Ethernet I/P; 1 RS232 |
Communication |
Ethernet |
Supported Protocols: |
ASCII; DH485; DF1; Ethernet |
No. Of Axes over Ethernet: |
2 axes |
Shipping Weight |
3 pounds |
No. of Task: |
32 Task |
Shipping Dimensions |
11X8X6 inches |
No. of Program per Task: |
100 |
Series |
A and B |
No. of Embedded Inputs: |
(16) 24 VDC |
Replacement Terminal Block Part Number |
1769-RTBN18 |
No. of Analog Inputs: |
4 (Differential or Single Ended) |
Wire Type |
Copper-90 degrees Celsius |
No. of Analog Outputs: |
2 (Single Ended) |
Wire Size (Solid) |
22 to 14 AWG |
No. of HSC outputs: |
4 |
Wire Size (Stranded) |
22 to 16 AWG |
Programming Language: |
Relay ladder (Safety Task only) , Structured Text, Function block, SFC |
Power Supply |
24 Volts DC |
UPC |
10885630101221 |
Memory |
1MB |
Mounting: |
DIN Rail |
Non-Volatile Memory: |
1784-SD1 card with 1 Gb of available memory (shipped with controller) 1784-SD2 card with 2 Gb of available memory (available for separate ordering) |
