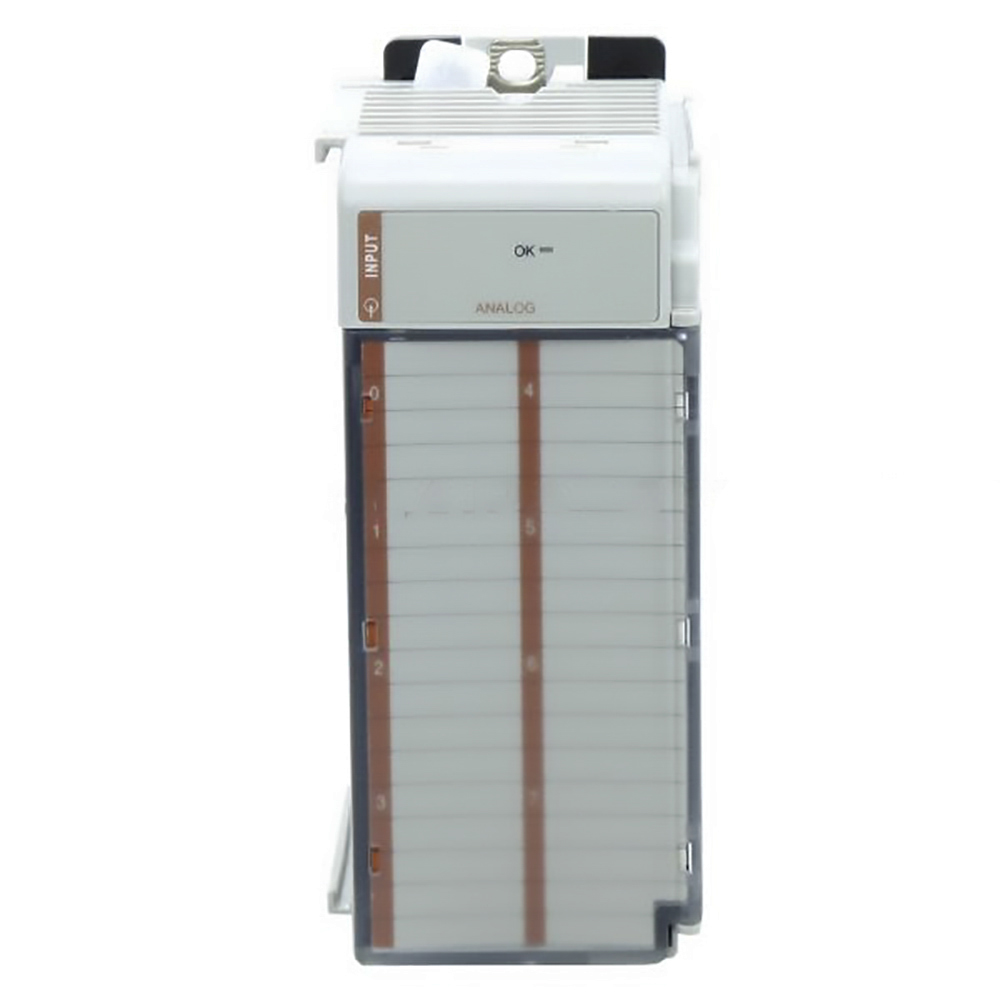

1769-IF8 Allen Bradley 8 Input Module CompactLogix I/O

1769-IF8
Delivery time: Please consult customer service
$774.00 USD $0.00 USD
Global low-cost shipping
Free returns
Carbon neutral
Secure payments
Quantity
Only 0 left
Volume Pricing
Quantity
Price
1+
$774.00 USD each
Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1769-IF8
Product Line CompactLogix
Module Type Analog Input Module
Input Type Analog Input
No. of Inputs: 8 Inputs; Differential or Single Ended Inputs
Power Supply Distance rating: 8
Communication Cable 8 Point
Input current range: 0-21 mA
Shipping Weight 2 pounds
Current signal normal ranges: 0-20mA; 4-20 mA
Shipping Dimensions 8 x 8 x 5 inches
Current signal full range: 0-21 mA; 3.2 - 21 mA.
Series A and B
Input voltage range: 0-10.5VDC
Distance Rating 8 Modules
Voltage signal normal ranges: ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC
Working Voltage Rating 30 Volts AC or 30 Volts DC
Voltage signal full range: ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC
Replacement Terminal Block 1769-RTBN18
Compatible Controllers: MicroLogix 1500; CompactLogix
Wire Type Copper-90 degrees Celsius
Resolution: 16 bits (unipolar) 15 bits plus sign (bipolar)
Wire Size (Solid) 22-14 AWG
Channel Diagnostics: Over- or under-range by bit reporting, process alarms
UPC 10662468861134
Recommended cable: Belden™ 8761 (shielded)
Dimension: 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in
