Manufacturer | Rockwell Automation / Allen-Bradley |
Brand | Allen-Bradley |
Product Type: | Analog Input Module |

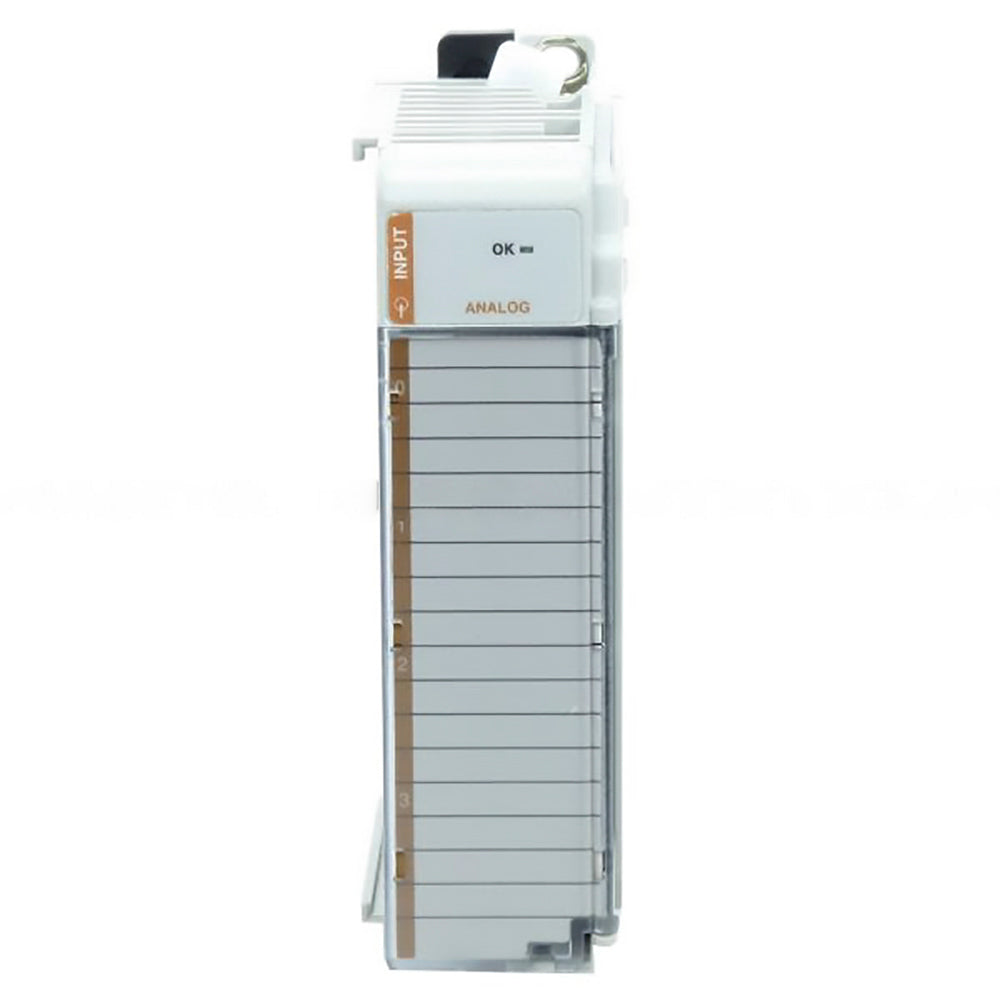

Part Number/Catalog No. | 1769-IF4I |
Product Line | CompactLogix |
Module Type | Isolated Analog Input Module |
No. of Inputs: | 4 Individually isolated Differential and single ended inputs |
Input Type | Analog Input |
Power Supply Distance rating: | 8 |
Input current range: | 0-21 mA |
Communication Cable | 4 Point |
Current signal normal ranges: | 0-20mA; 4-20 mA |
Shipping Weight | 2 lbs. |
Shipping Dimensions | 8 x 8 x 5 in. |
Current signal full range: | 0-21 mA; 3.2 - 21 mA. |
Input / Output voltage range: | 0-10.5VDC |
Series | A and B |
Voltage signal normal ranges: | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
Inputs | 4 Isolated Differential |
Voltage signal full range: | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
Resolution: | 16 bits (unipolar) 15bits plus sign (bipolar) |
Replacement Terminal Block | 1769-RTBN18 |
Converter Type | Sigma-Delta |
Wire Type | Copper-90 degrees Celsius |
Wire Size (Solid) | 22-14 AWG |
Rated working voltage: | 30VAC; 30VDC |
UPC | 10781180908634 |
