Manufacturer |
Rockwell Automation |
Overvoltage protection |
24V DC |
Enclosure |
None |
Short circuit detection |
Electronically current limited to 21 mA or less |
Open circuit detection |
Current only |
Conversion Method |
R-Ladder DAC, monotonicity with no missing codes |
Data Format |
Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
Resolution |
15bit |
Output Voltage Range |
+/- 10VDC |
Output Current Range |
0-20 mA |
No. of Outputs |
Eight (8) Current / Voltage |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

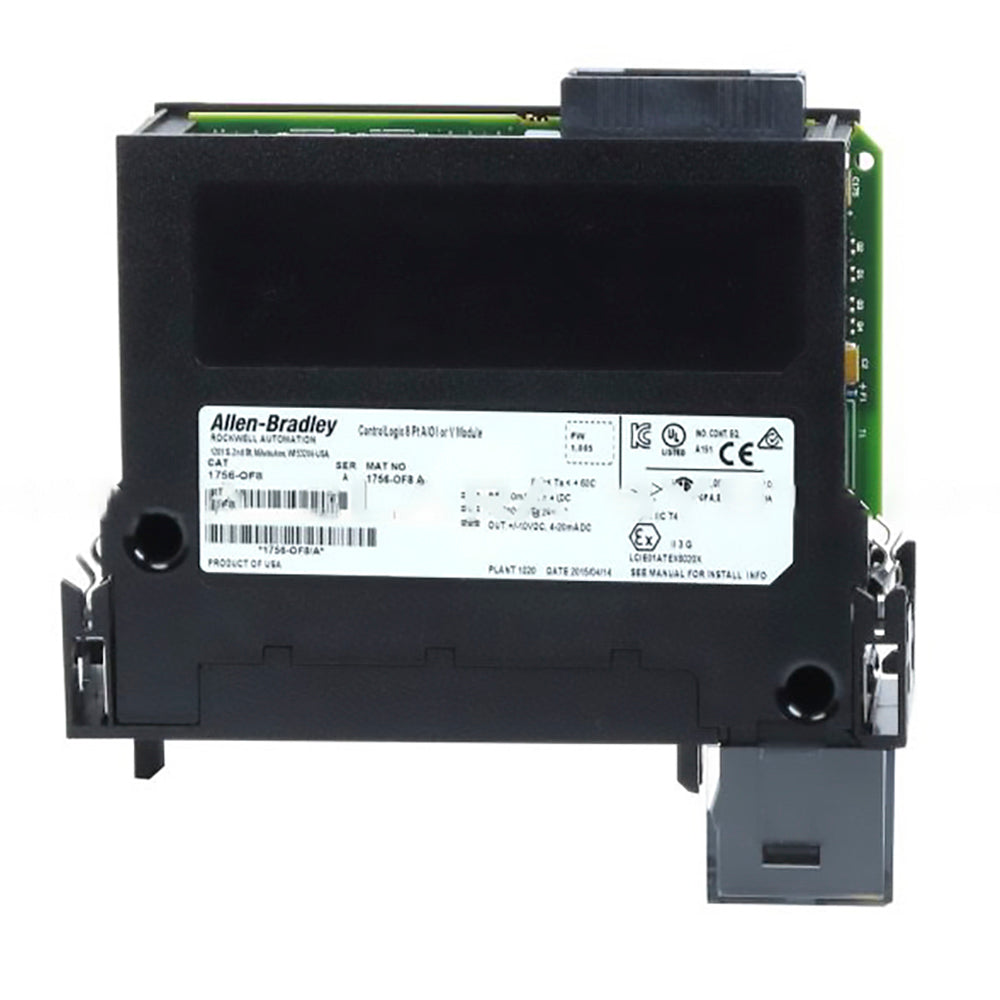

1756-OF8 |
Series |
ControlLogix |
Module Type |
Analog Output Module |
Outputs |
8 Current-Voltage |
Backplane Current (5Volts) |
140 milliamps |
Backplane Current (24 Volts) |
210 milliamps |
Removable Terminal Blocks |
1756-TBNH, 1756-TBSH |
Power Dissipation (Max) |
4.9 Watts at 60 Celsius |
Removeable Terminal Block(s) |
1756-TBNH, 1756-TBSH |
Isolation Voltage |
50 Volts Continuous |
UPC |
10612598171894 |
UNSPSC |
32151705 |
