Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |

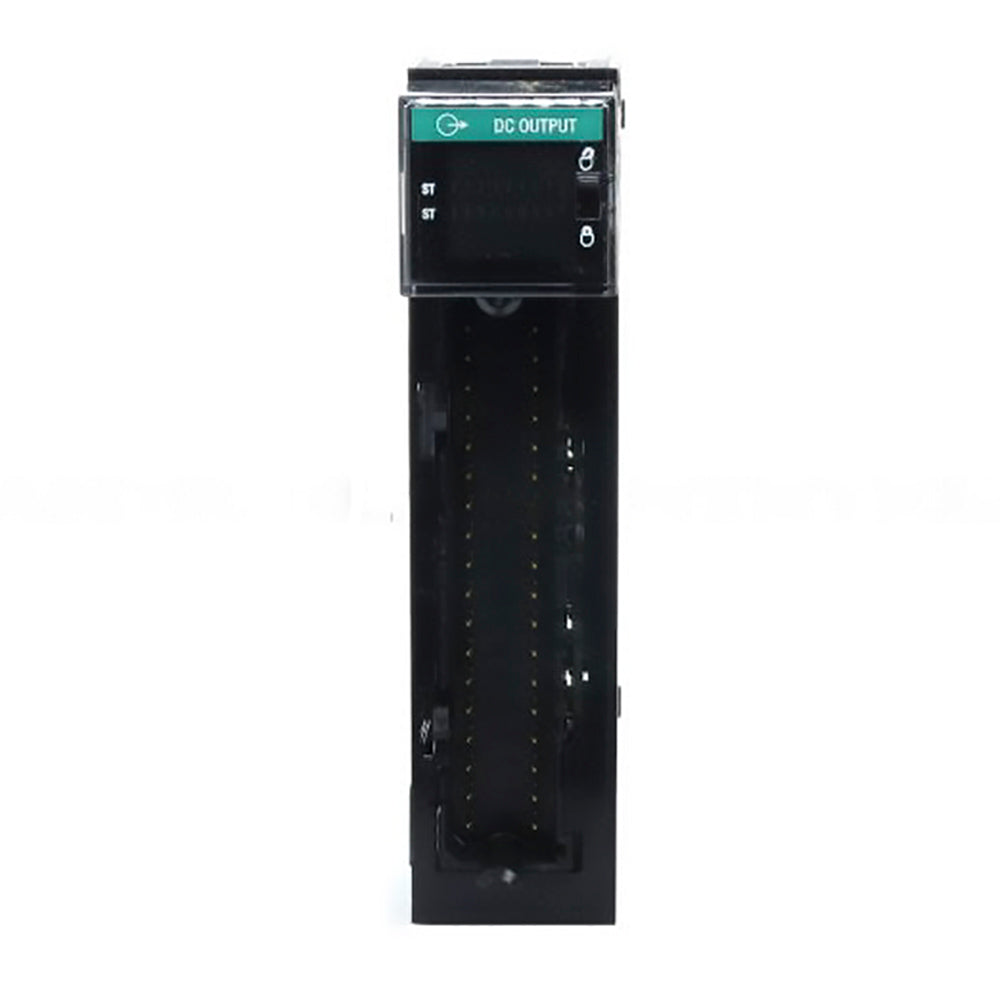

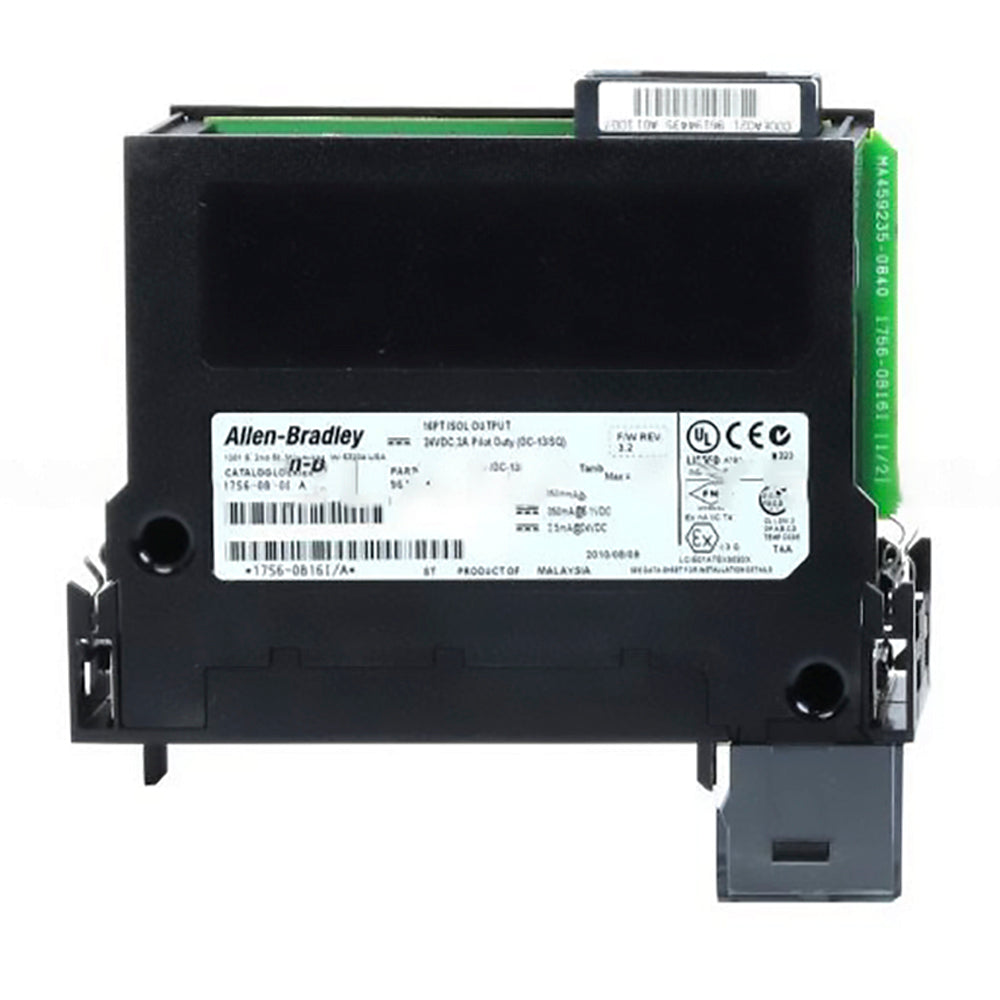

Part Number/Catalog No. | 1756-OB16I |
Series | ControlLogix |
Outputs | 16-Point Individually Isolated |
Module Type | Isoloated DC Output Module |
Voltage | 12-24 Volts DC Sink-Source |
Operating Voltage Range | 10-30 Volts DC |
Output Delay Time ( OFF to ON) | 1 ms max |
Output Delay Time ( ON to OFF) | 2 ms max |
Current per point | 2 A @ 30 °C (86 °F) 1 A @ 60 °C (140 °F) (linear derating) |
Current per module | 8 A @ 30 °C (86 °F) 4 A @ 60 °C (140 °F) (linear derating) |
Maximum Output Current Rating-Point | 2 Amps at 30 degrees Celsius, 1 Amp at 60 degrees Celsius |
Maximum Output Current Rating-Module | 8 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius |
Power Dissipation (Max) | 3.6 Watts at 60 Celsius |
UPC | 10612598164544 |
Backplane Current at 5 Volts | 350 milliamps |
Backplane Current at 24 Volts | 3 milliamps |
Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
Isolation Voltage | 50 Volts Continuous |
Enclosure | None |
