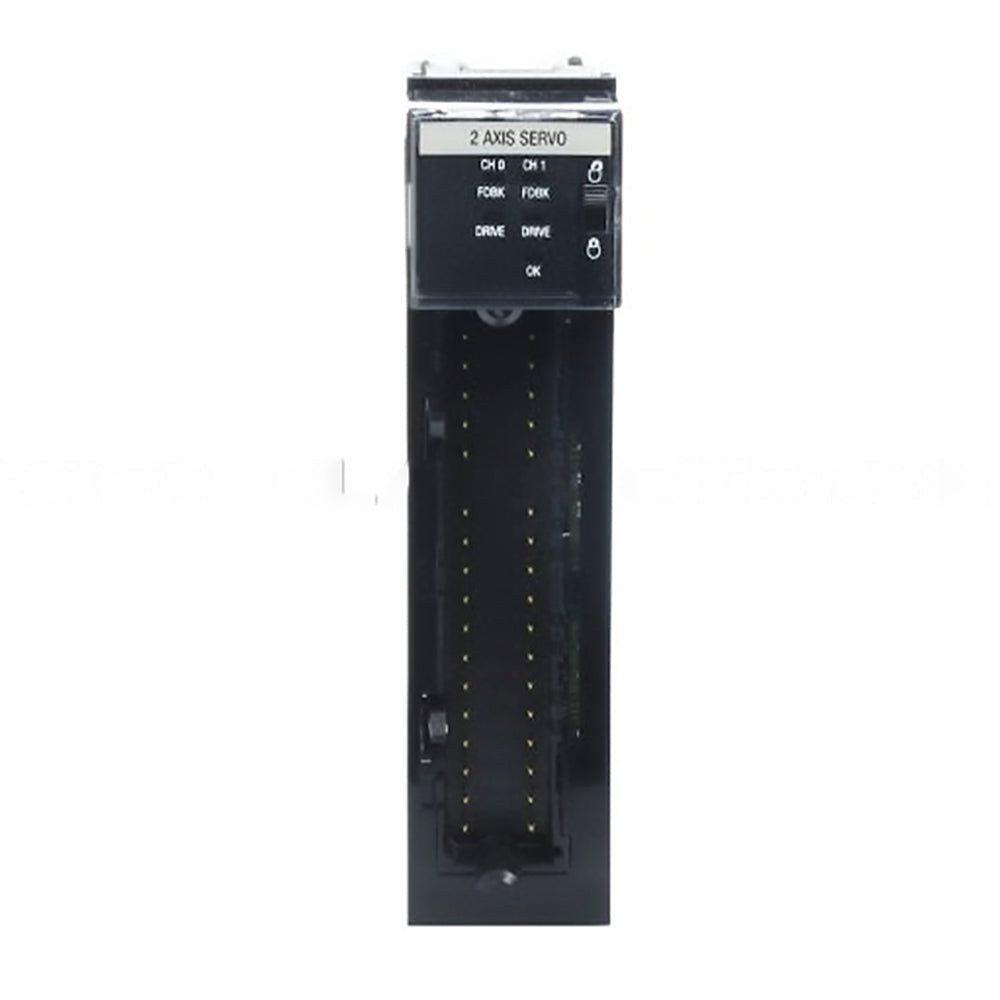

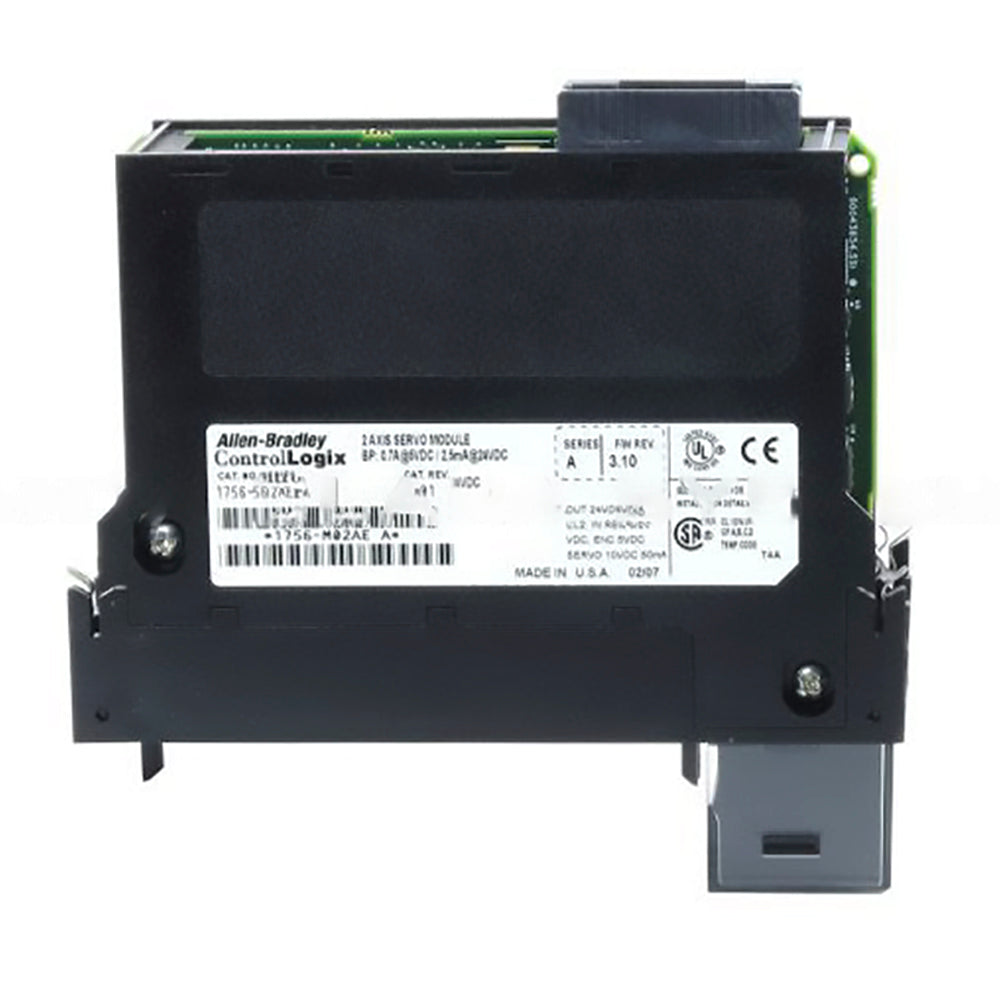

Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Series | ControlLogix |
Part Number/Catalog No. | 1756-M02AE |
Module Type | Servo Analog Encoder Module |
Axes per Module | Two (2) |
Axes per Controller | Thirty-Two (32) |
Input Type | Encoder input: Incremental AB quadrature with marker |
Discrete Input type | Optically isolated, current sinking |
Discrete Input operating Voltage | 24VDC |
Servo Output Type | Analog voltage |
Servo Output Resolution | 16 Bits |
Discrete Output | Solid-state isolated relay contact |
Thermal Dissipation | 21.2 BTU-hour |
Operating voltage | 24V DC (Class 2 source) |
Isolation Voltage | 50 Volts Continuous |
Backplane Current (24Volts) | 2.5 mA |
Backplane Current (5Volts) | 700 mA |
Enclosure | None |
UPC | 10612598172396 |
Removeable Terminal Blocks | Removeable Terminal Blocks |
Current Draw (5.1 Volts) | 1.2 amps |
Power Dissipation | 6.2 Watts |
