Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |

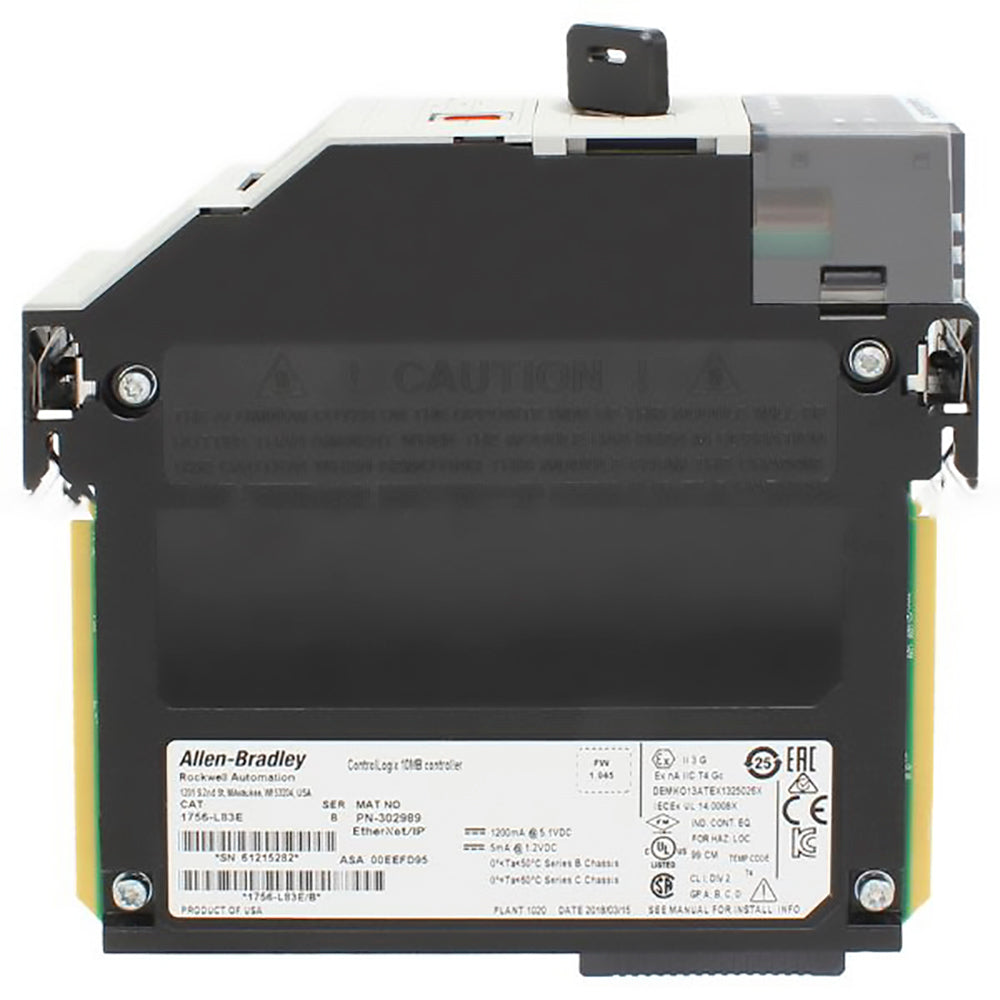

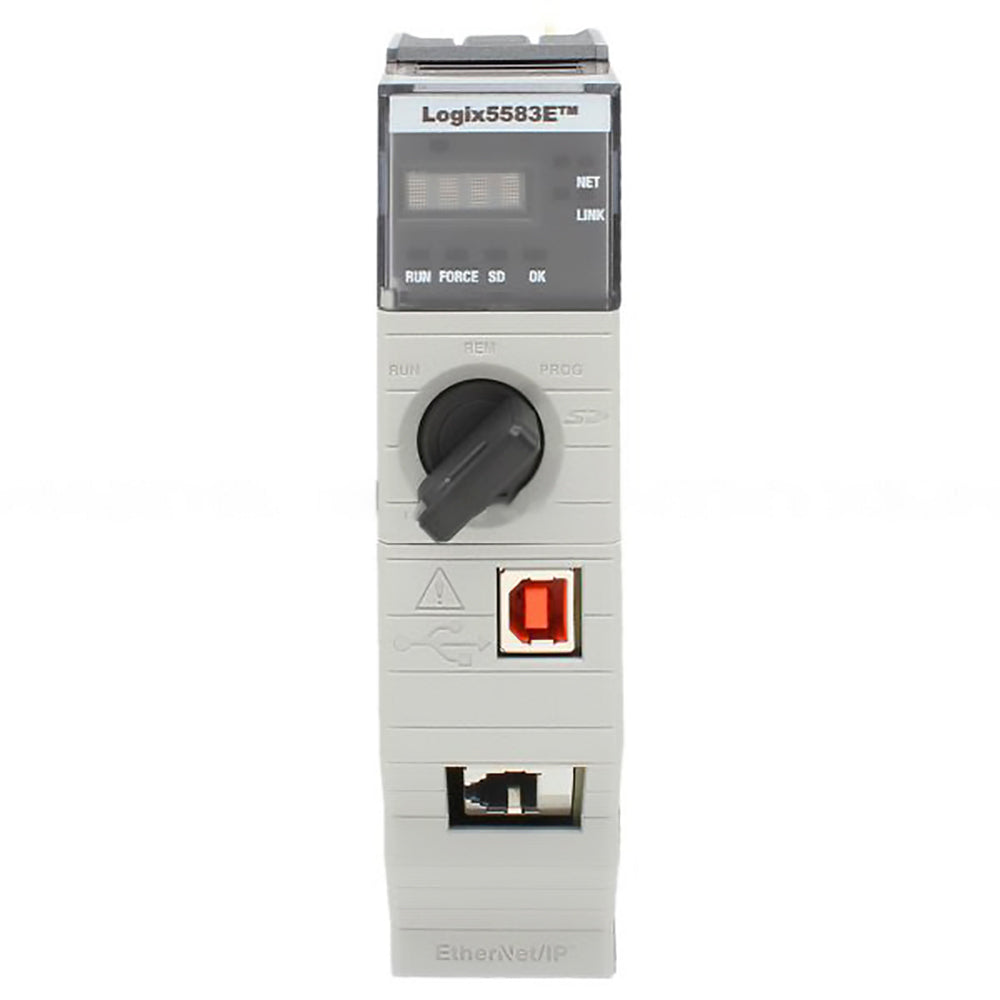

Part Number/Catalog No. | 1756-L83E |
Series | ControlLogix |
Module Type | Processor Module |
Tasks | 32 |
Nonvolatile Memory | 2 GB (1784-SD2 ships with every controller) |
Communications | USB, Ethernet |
Communication Speed | 12 MB-Second |
Communication | 1 port USB; Ethernet |
Ethernet Nodes | 100 or 250 |
USB Port Communication | Programming, configuration, and on-line edits |
Ethernet Communication Speed | 10/100/1000 Mbps |
USB Communication Speed | 12 Mbps |
Current Draw (1.2 Volts DC) | 5 milliamps |
Discrete I/O | 128,000 |
Current Draw (5.1 Volts) | 1.2 amps |
Analog I/O | 4,000 |
User Memory | 4MB |
Power Dissipation | 6.2 Watts |
Thermal Dissipation | 21.2 BTU-hour |
Backplane Current (1.2 Volts DC) | 5 mA |
Isolation Voltage | 50 Volts Continuous |
Backplane Current (5.1 Volts DC) | 1.2 mA |
Enclosure | None |
UPC | 887172361357 |
Weight | 0.25 kg (0.55 lb) |
Relative Humidity | 5-95 % |
Redundancy | Full Support |
Programming Languages | Relay ladder Structured text Function block SFC" |
