Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |

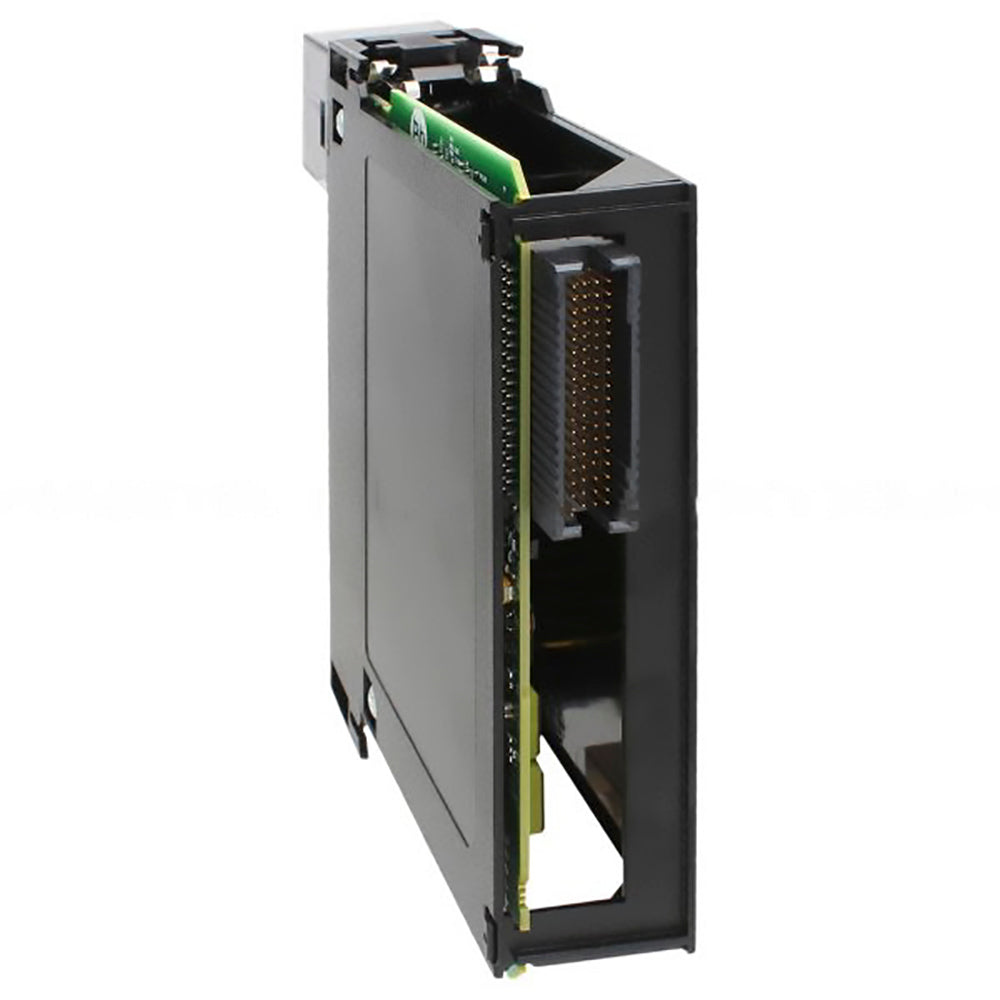

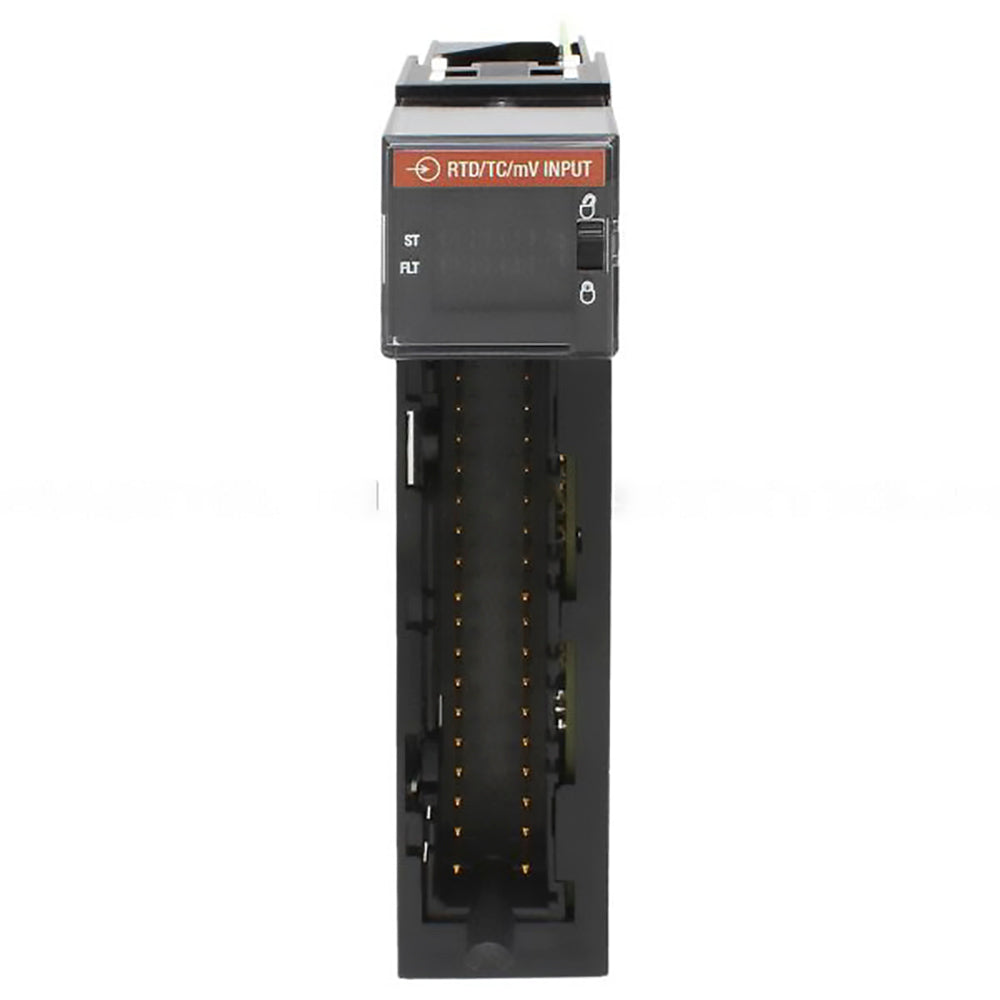

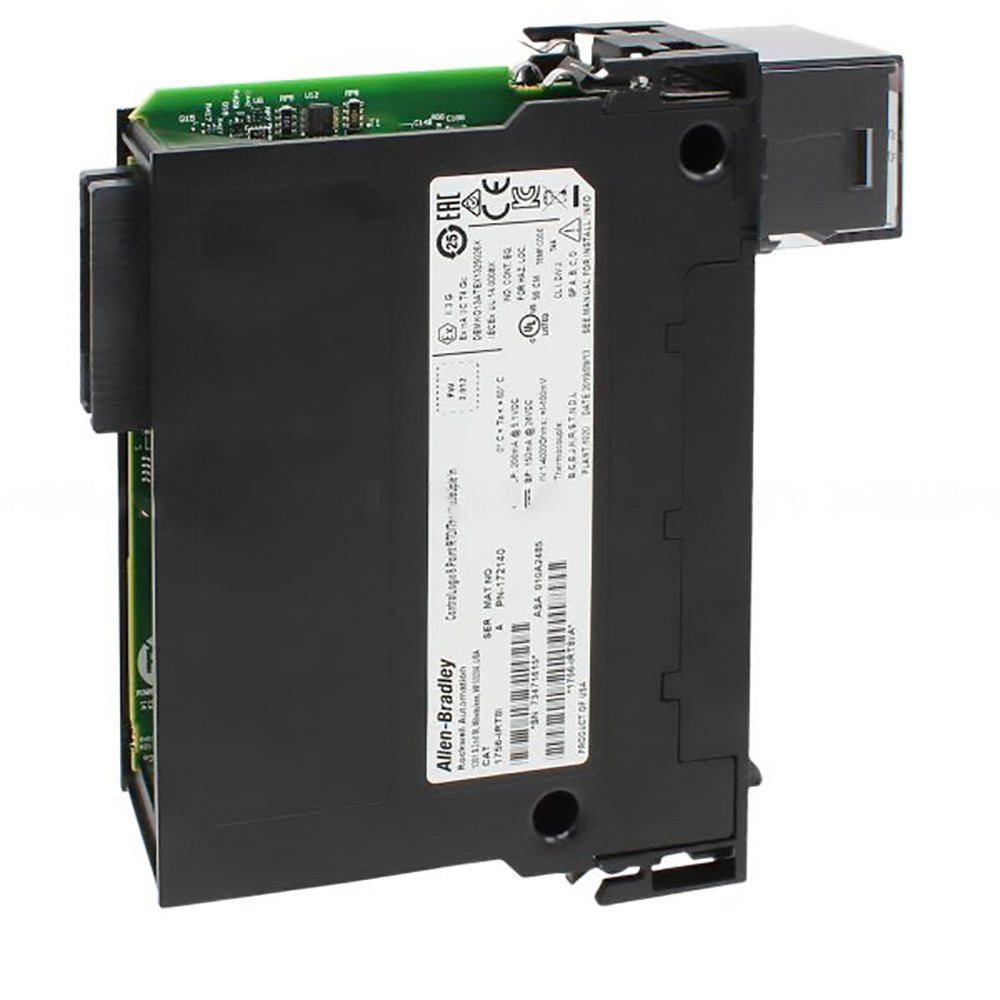

Part Number/Catalog No. | 1756-IRT8I |
Series | ControlLogix |
Inputs | 8 Isolated Channels |
Module Type | Analog RTD / Thermocouple / milivolt Module |
No. of Inputs | Eight (8) Point Isolated RTD / Thermocouple / milivolt |
Compatible RTD Type | 100, 200, 500, 1000 ? Platinum, alpha=385 100, 200, 500, 1000 ? Platinum, alpha=3916 120 ? Nickel, alpha=672 100, 120, 200, 500 ? Nickel, alpha=618 10 ? Copper, alpha=427 |
Current Draw (5.1 Volts) | 200 milliamps |
Current Draw (24 Volts) | 150 milliamps |
Compatible Thermocouple Types | B, C, D, E, J, K, N, R, S, T, TXK/XK (L) |
Resolution | 24 bits 0…510 ?: 0.06 m?/count 0…1020 ?: 0.12 m?/count 0…2040 ?: 0.25 m?/count 0…4080 ?: 0.50 m?/count -101…101 mV: 0.01 ?V/count |
Power Dissipation (Maximum) | 4.6 Watts |
Thermal Dissipation | 15.7 BTU per hour |
Input Range | 1…500 ? 2…1000 ? 4…2000 ? 8…4000 ? -100…100 mV |
Module Scan Time | 1 ms |
Isolation Voltage | 250 Volts Continuous |
Data Format | IEEE 32-bit floating point |
Backplane Current at 24 Volts | 2 milliamps |
Backplane Current (5Volts) | 250 mA |
UPC | 10885630245420 |
Backplane Current (24 Volts) | 150 mA |
Power Dissipation (Max) | 4.6 W |
UNSPSC | 32151705 |
Removable Terminal Blocks | 1756-TBNH, 1756-TBS6H |
