Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |

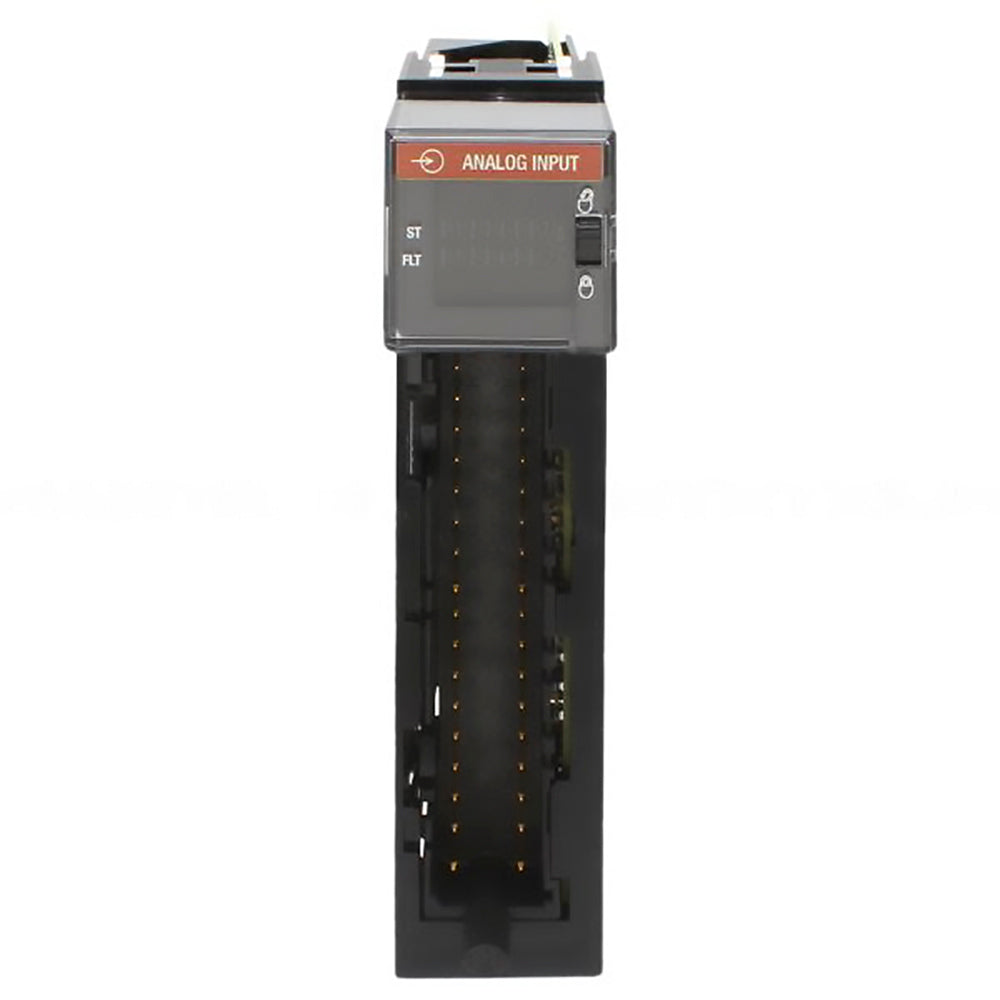

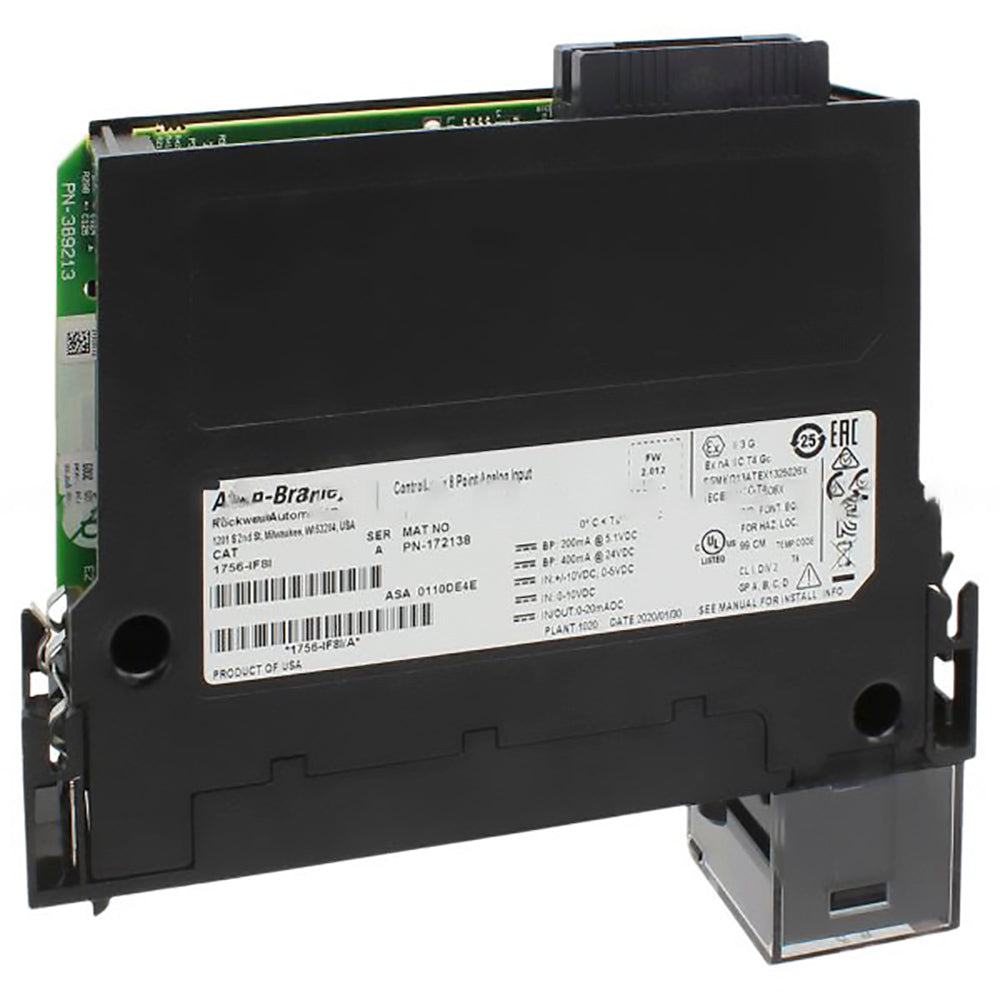

Part Number/Catalog No. | 1756-IF8I |
Series | ControlLogix |
Module Type | Analog Input |
Channels | 8 Isolated Channels |
Inputs | 8-Points, Isolated , Any combination of Voltage or Current mode |
I-O Ranges | 0-10 Volts |
Conversion Method | Sigma-Delta |
Data format | IEEE 32-bit floating point |
Current Draw (5.1 Volts) | 200 milliamps |
Input signal Range | -10…10V 0…10V 0…5V 0…20 mA |
Current Draw (24 Volts) | 150 or 400 milliamps |
Resolution | 16-21 bits |
Input Resolution | 24 bits; ±10.5V (1.49 ?V/count) 0…10.5V (1.49 ?V/count) 0…5.25V (1.49 ?V/count) 0…21 mA (2.99 nA/count) |
Resolution | 16-21 bits |
Backplane Current (5Volts) | 200 mA |
Enclosure | Open |
Backplane Current (24Volts) | Voltage/Non-sourcing Current mode: 150 mA Sourcing Current mode: 400 mA (In Sourcing Current mode, the channel provides loop power.) |
Power Dissipation (Max) | Voltage mode: 4.6 W Non-sourcing Current mode: 5.1 W Sourcing Current mode: 7.3 W |
UPC | 10885630245406 |
Removeable Terminal Blocks | 1756-TBNH, 1756-TBS6H |
