Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |

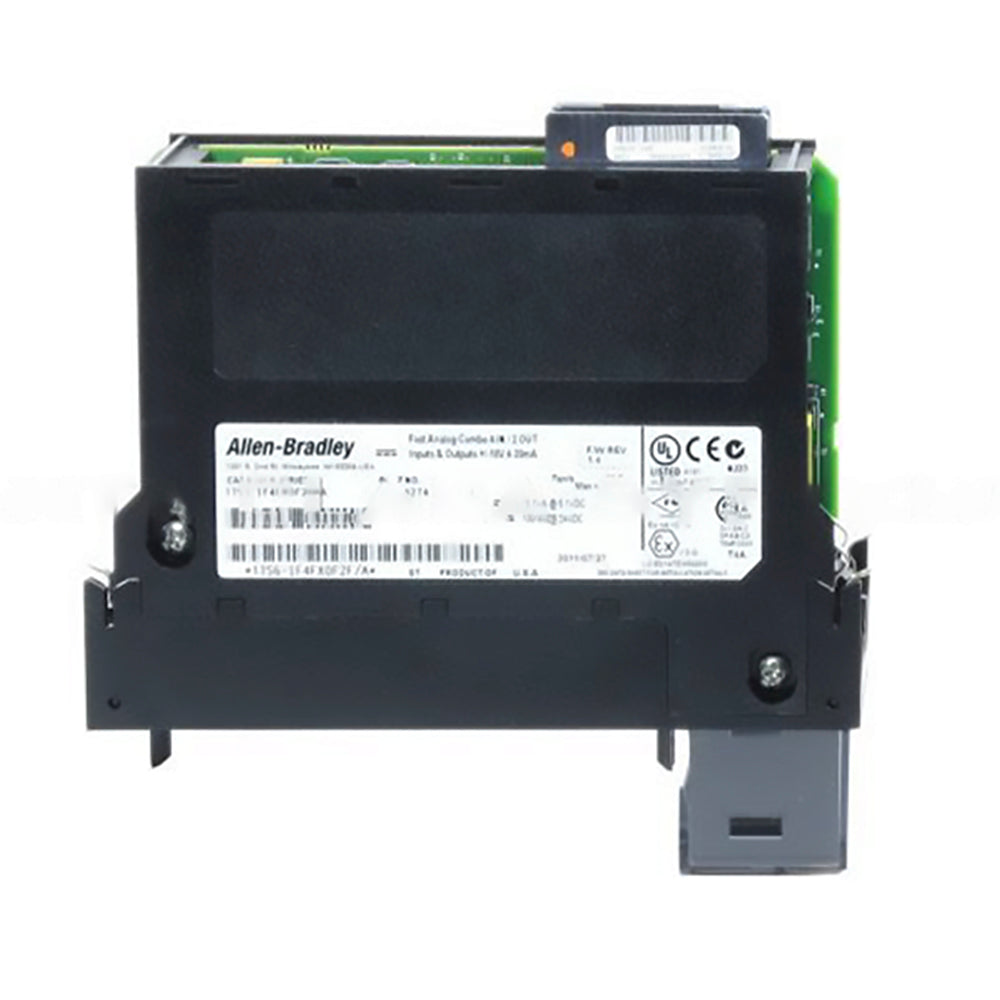

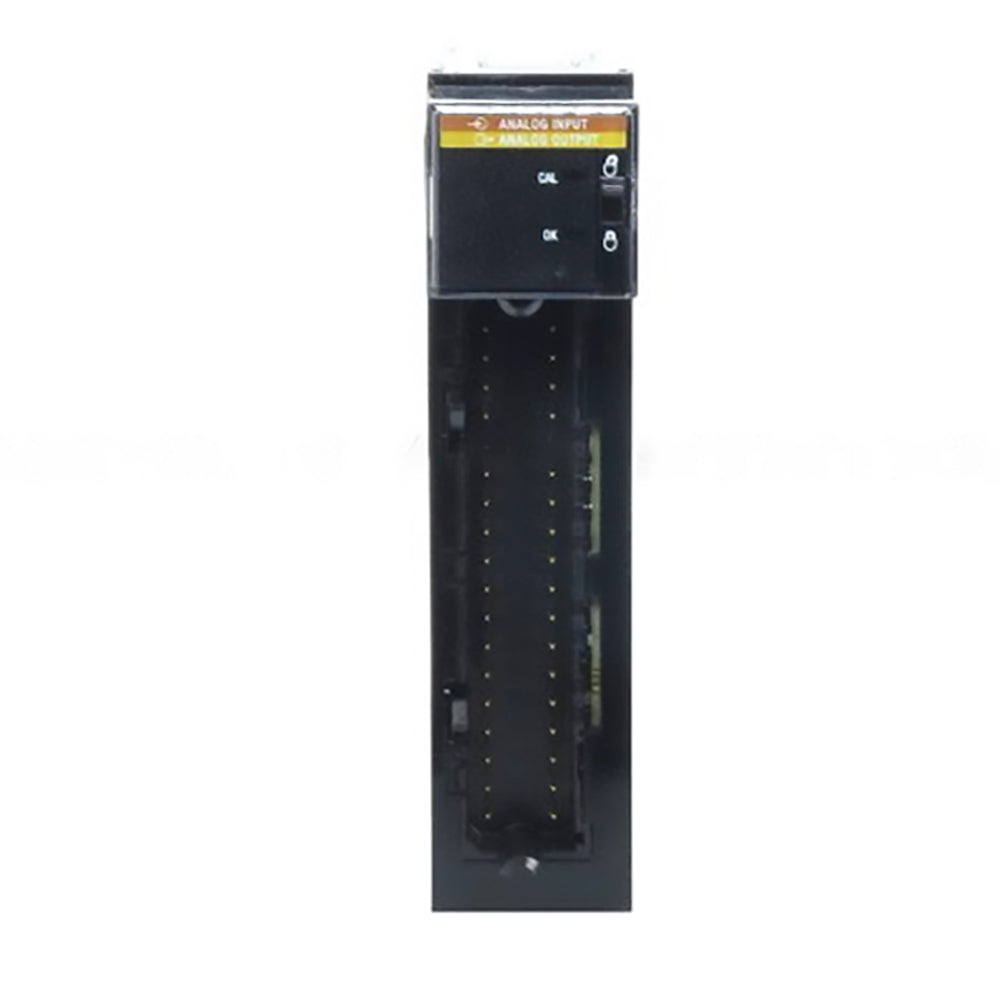

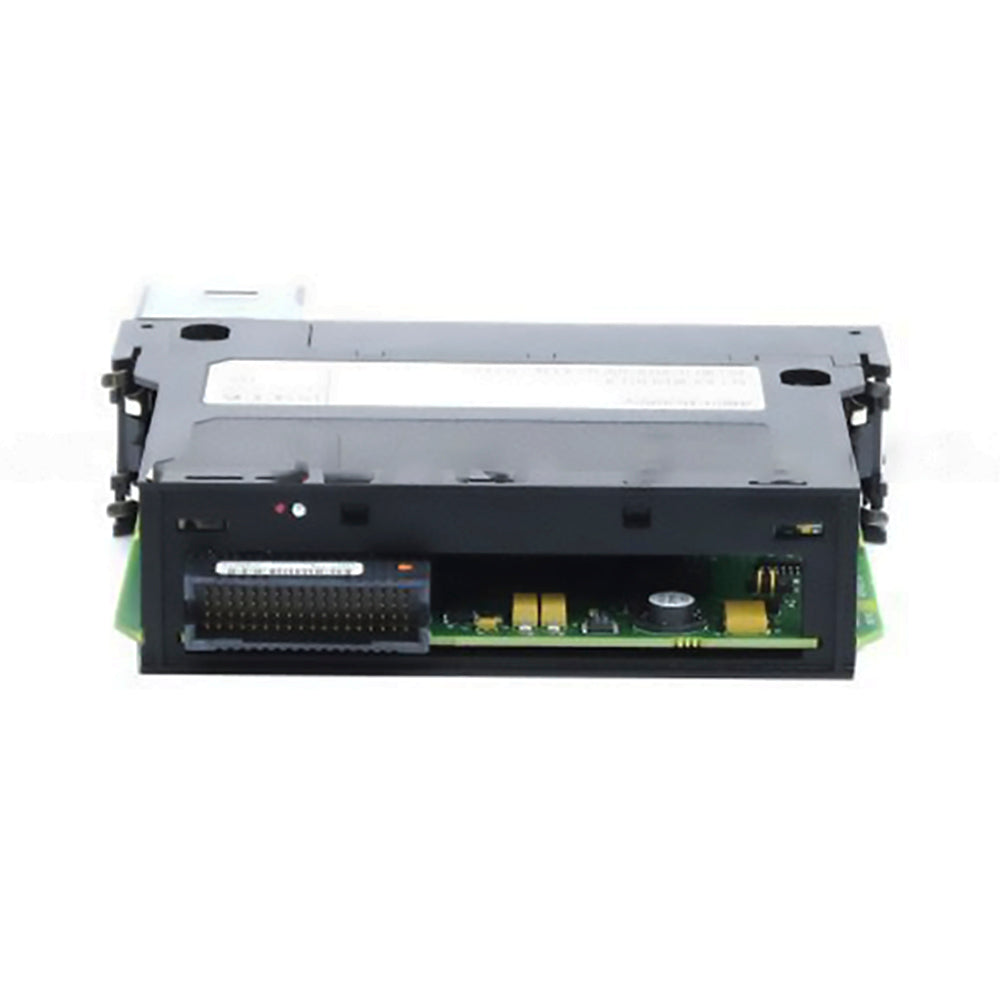

Part Number/Catalog No. | 1756-IF4FXOF2F |
Series | ControlLogix |
Inputs | 4 high speed sub-millisecond differential |
Module Type | High Speed Analog Input / Ouptut Module |
Outputs | 2 high speed current-voltage |
Input signals ranges | ± 10V; 0…10V; 0…5V; 0…20 mA |
Input Resolution | 14 bits across ±10.5V DC ; 12 bits across 21 mA |
No. of Outputs | 2 high speed current/ voltage |
Output Resolution | 13 bits across 21 mA = 2.8 µA/bit; 14 bits across 21.8V = 1.3 mV/bit |
Output Signal Ranges | ± 10V; 0…20 mA |
Backplane Current (5Volts) | 375 milliamps |
UPC | 10612598269218 |
Backplane Current (24Volts) | 100 milliamps |
Power Dissipation (Max) | 4.3 Watts (Voltage), 4.7 Watts (Current) |
Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
