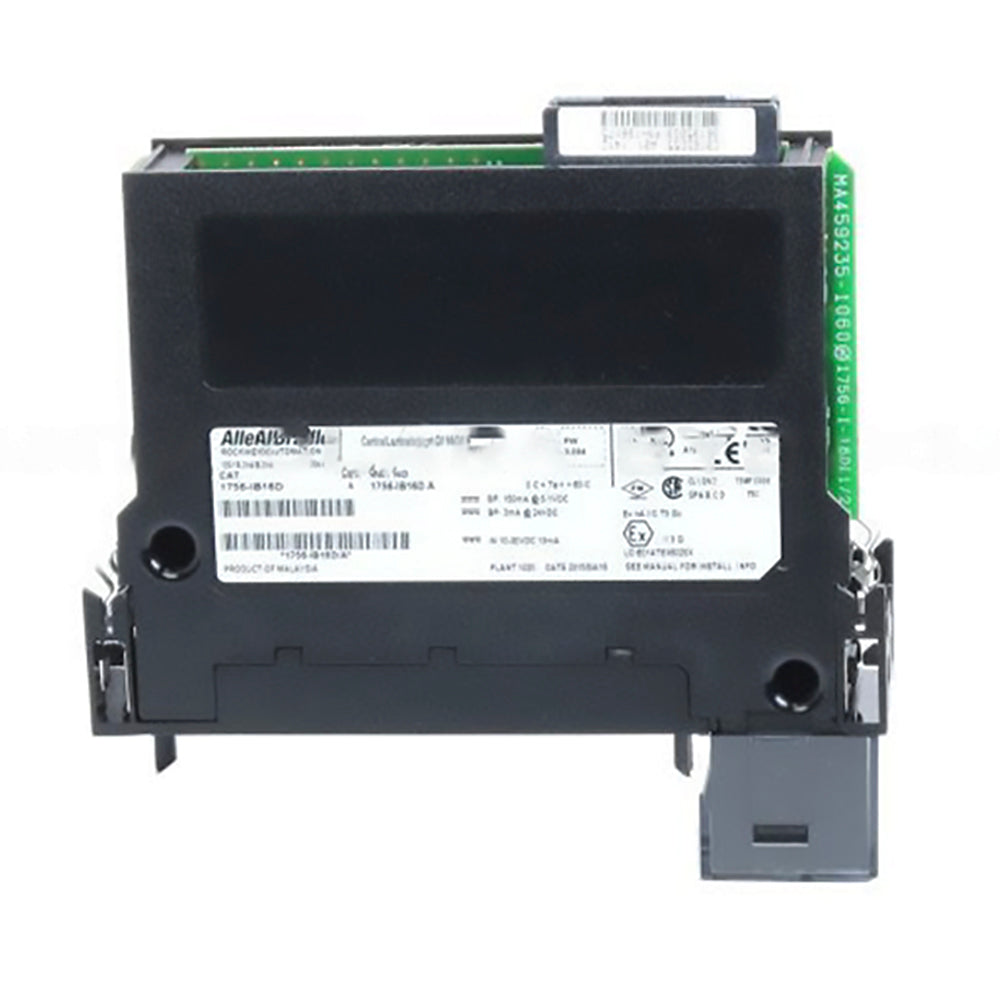

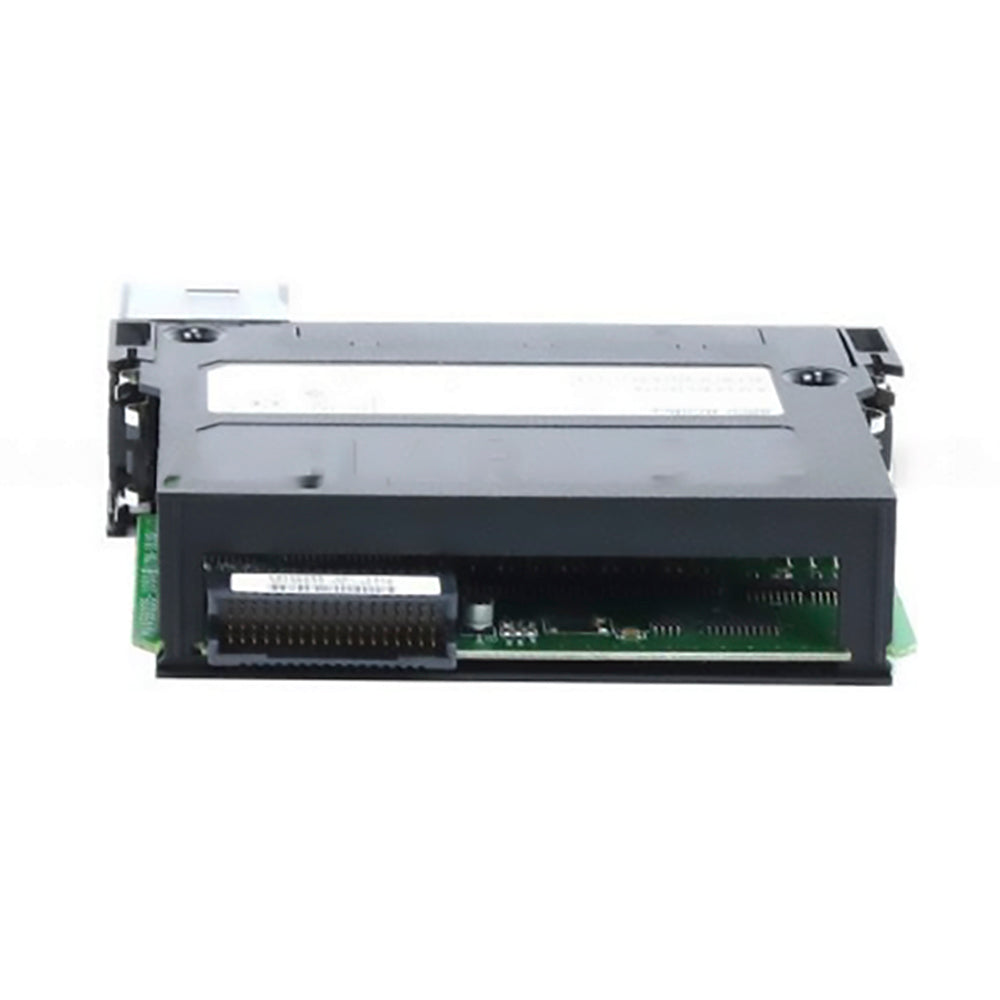

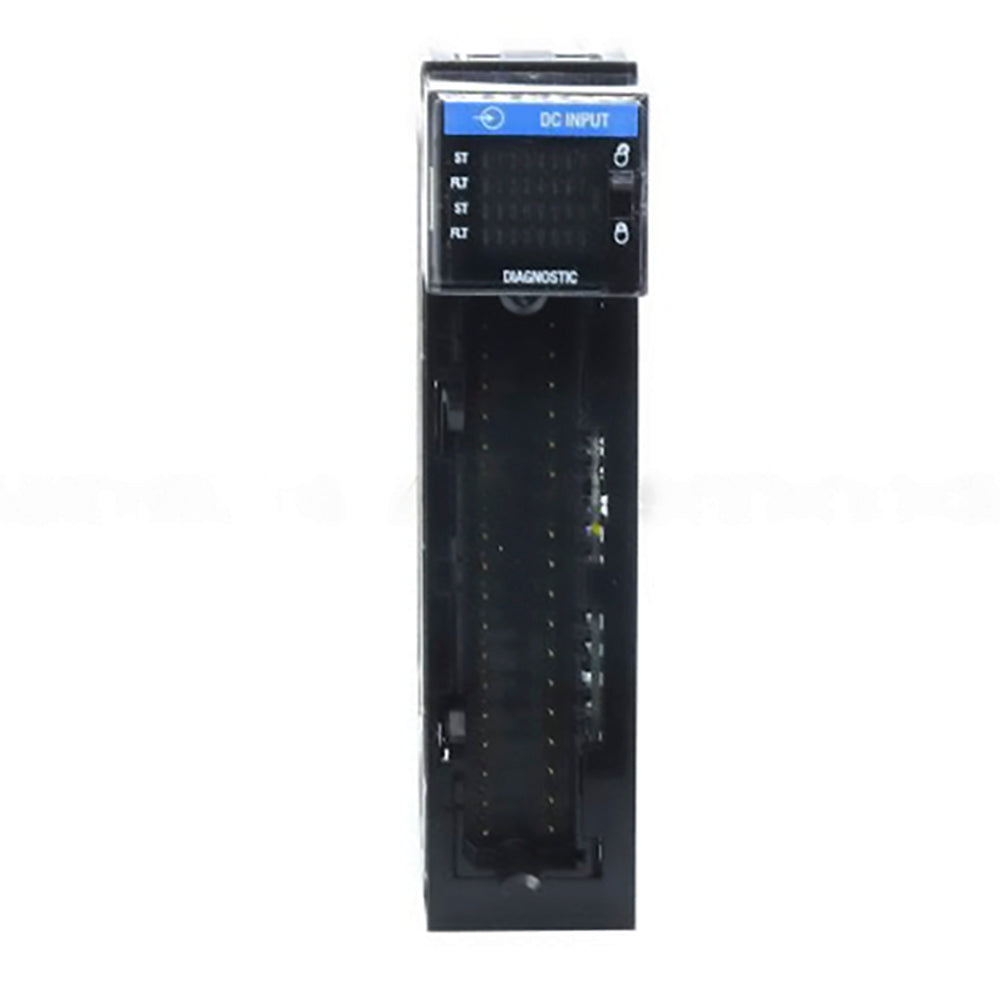

- Description: Input Module | ControlLogix
- Enclosure Type: None (open-style)
- Inputs: 16 Diagnostic (4 points/group)
- Voltage Category: 12/24V DC sink
- Operating Voltage Range: 10?30V DC
- Input Voltage, Nom: 24V DC
- Current Draw @ 5.1V: 150 mA
- Current Draw @ 24V: 3 mA
- Isolation Voltage: 250V (continuous)
- Total Backplane Power: 0.84 W
- Power Dissipation, Max: 5.8 W @ 60 C (140 F)
- Thermal Dissipation: 19.78 BTU/hr
- Reverse Polarity Protection: Yes
