Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Removable Terminal Block (RTB) |
1756-TBNH 1756-TBSH |
Total Backplane power |
0.58 W |
Backplane Current, 24VDC |
2 mA |
Backplane Current, 5.1VDC |
100 mA |
Cyclic update time |
200 µs…750 ms |
Part Number/Catalog No. |

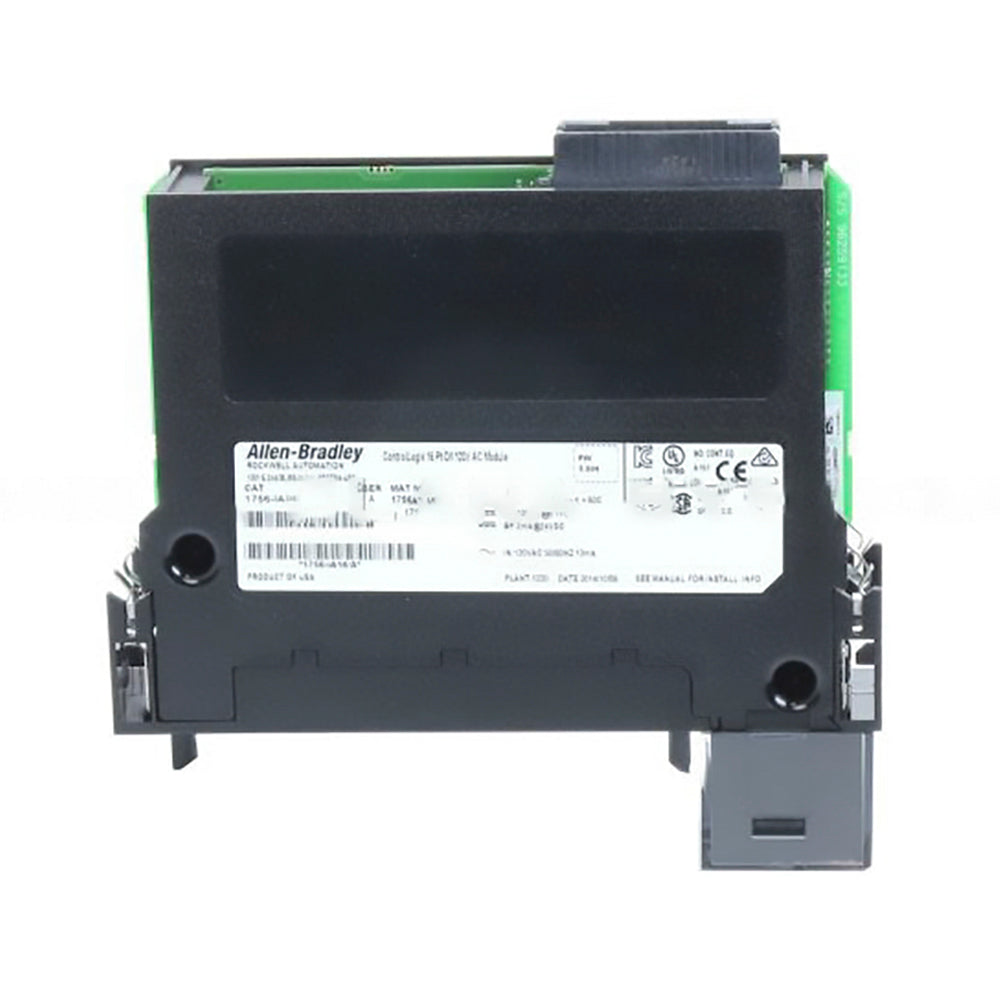

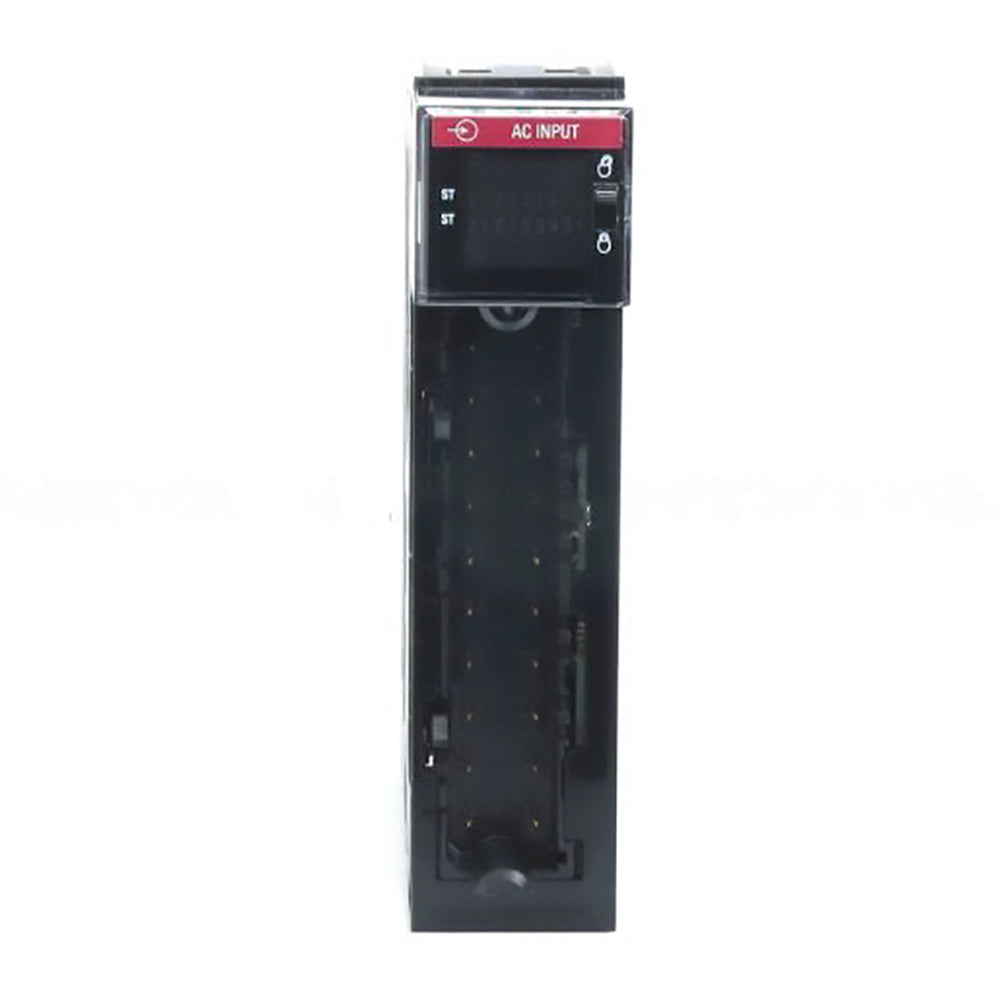

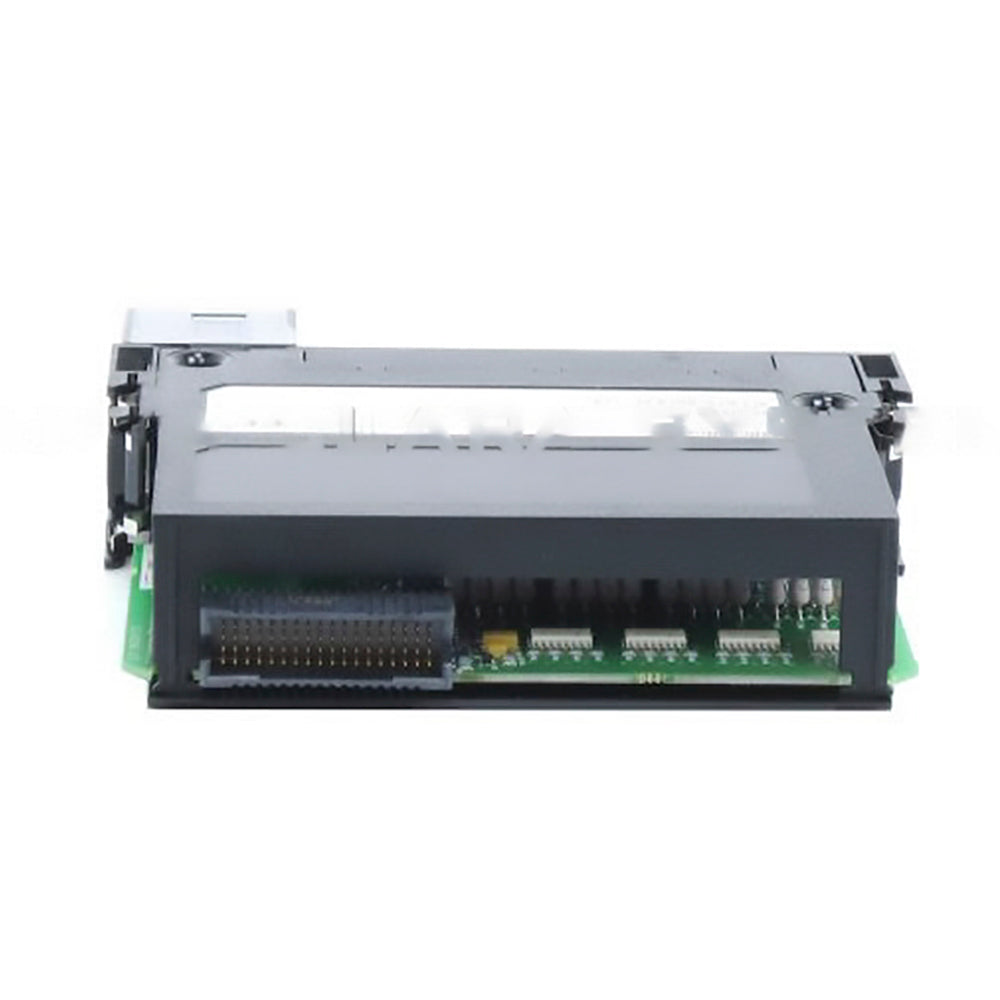

1756-IA16 |
Series |
ControlLogix |
Input Voltage |
120VAC |
Module Type |
Digital AC Input Module |
Inputs |
16 |
Operating Voltage Range |
74 to 132 Volts AC |
Input Delay Time |
Programmable 9 or 18 milliseconds |
Minimum Operating Current |
5 milliamperes at 74 Volts AC |
Maximum Operating Current |
13 milliamperes at 132 Volts AC |
Maximum Input Current, Off-State |
2.5 milliamperes |
Power Dissipation (Max) |
5.8 Watts at 60 degrees Celsius |
Backplane Current at 5 Volts |
105 milliamperes |
Backplane Current at 24 Volts |
2 milliamperes |
UPC |
10612598171276 |
