Brand | Allen-Bradley |

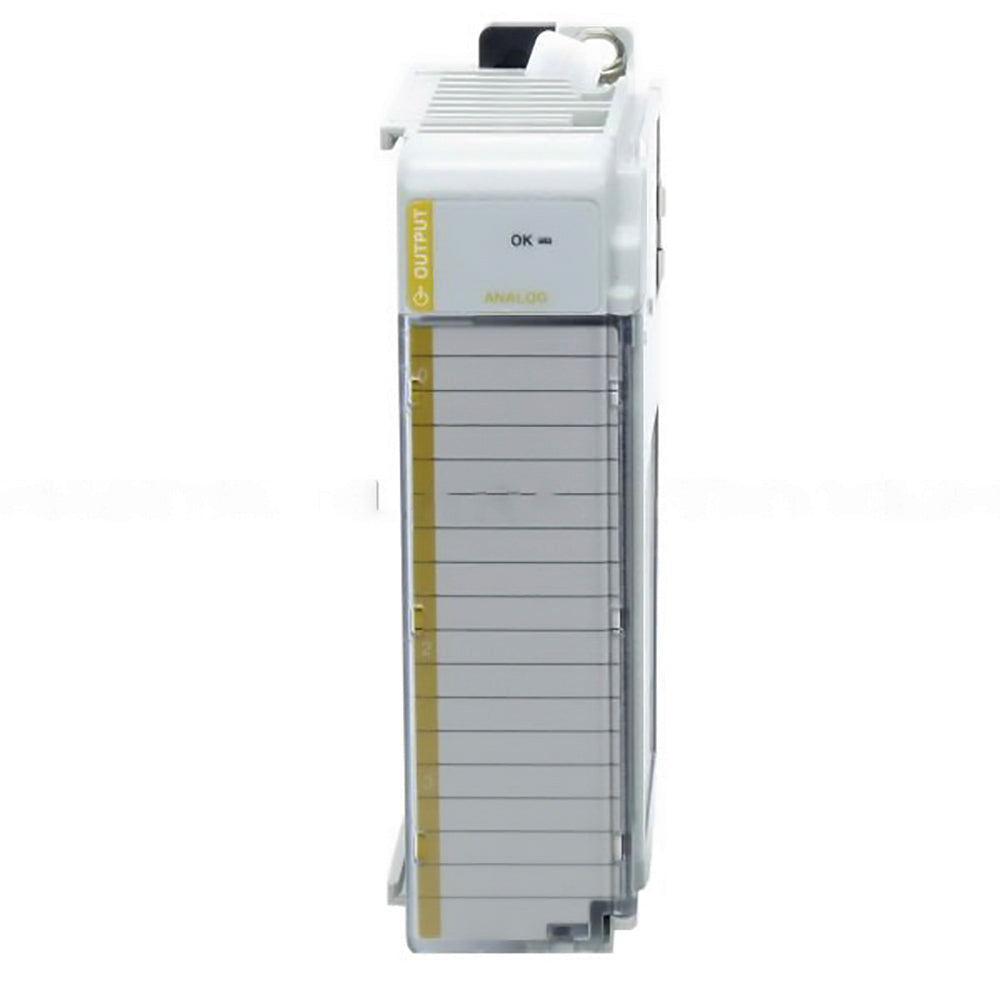

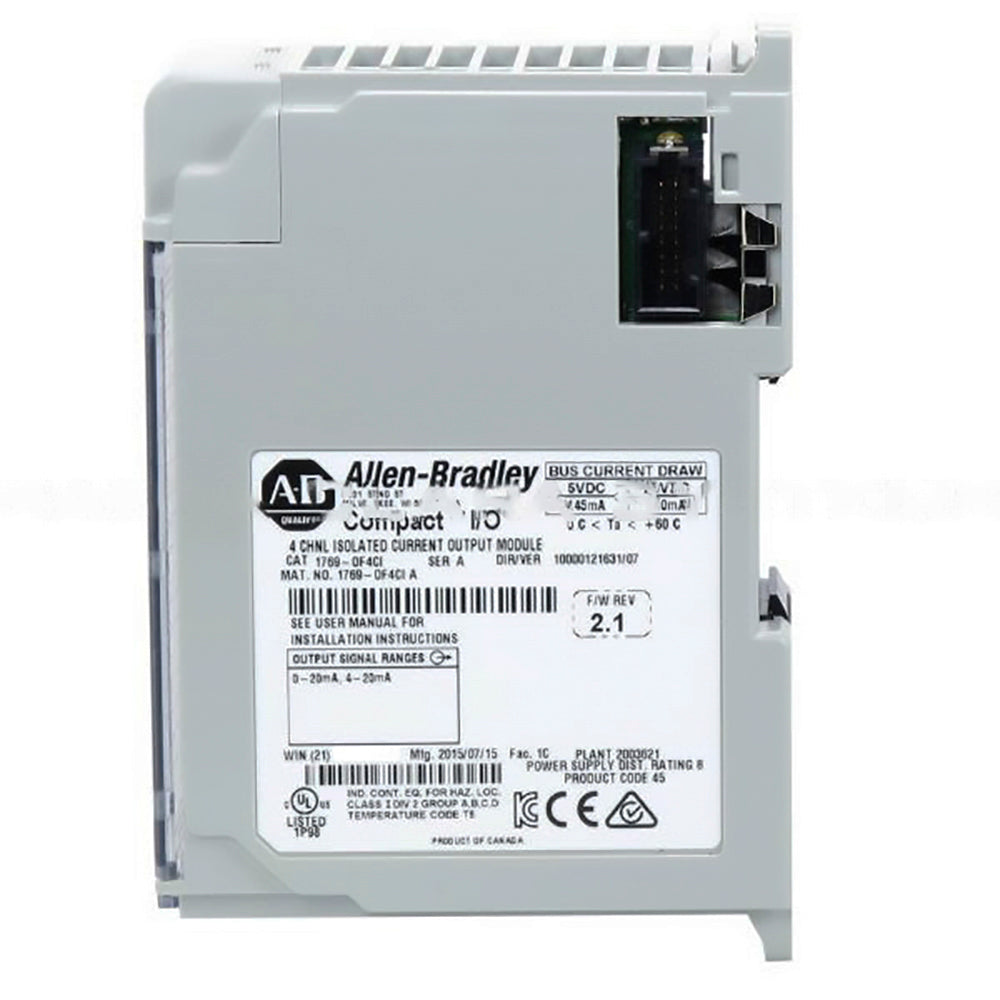

Part Number/Catalog No. | 1769-OF4CI |
Product Family: | Compact I/O |
Module Type | Analog Output Module |
No. of outputs: | Four (4) Differential; Individually isolated |
Power Supply Distance Rating | 8 |
Communication Cable | 4 Point |
Shipping Weight | 2 pounds |
Shipping Dimensions | 8 x 8 x 5 inches |
Compatible controllers: | MicroLogix 1500; CompactLogix controllers |
Series | A and B |
Analog Ranges: | Current: 0 to 20 mA, 4 to 20 mA |
Series | A and B |
Full scale analog ranges: | Current: 0 - 21 mA, 3.2 - 21 mA |
Field Calibration | None Required |
Analog data format: | Raw / Proportional data, Engineering unit, Scaled for PID and Percent full range. |
Replacement Door Part Number | 1769-RD |
Conversion rate: | 110 ms |
Wire Type | Copper-90 AWG |
Digital resolution: | 16 bits (unipolar) +4 to +20 mA: 15.59 bits, 0.323 µA/bit 0 to +20 mA: 15.91 bits, 0.323 µA/bit |
Calibration: | None required (guaranteed by hardware design) |
Solid Wire Size | 22 to 14 AWG |
Stranded Wire Size | 22 to 16 AWG |
Non-linearity (in percent full scale): | ±0.05% |
UPC | 10781180908658 |
UNSPSC | 32151705 |
Slot width: | 1 |
Power Supply: | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
Recommended cable: | Belden 8761 (shielded) |
Module location: | DIN rail or panel mount |
